(7) Remove the printhead fixer lever assembly.

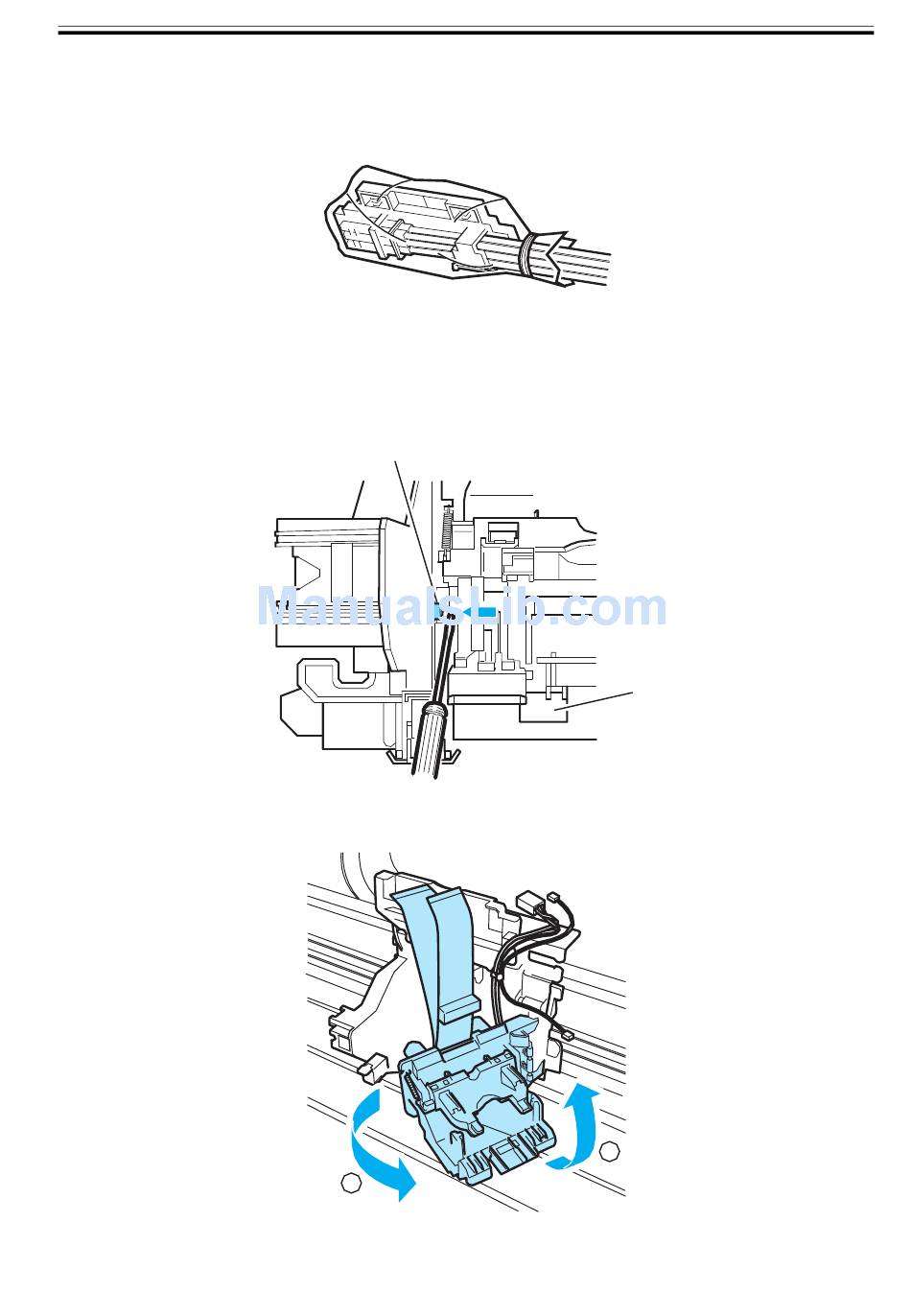

(8) Cover the printhead-side joint of the ink tube unit in a plastic bag or the like to prevent ink splashing and
leakage, and seal the mouth of the bag.
(9) To remove the head holder, press the lock pin located rearward to its left with a flat-blade screwdriver or
similar object in the direction of the arrow mark.
F-4-24
[1]
F-4-25
1
F-4-26
Chapter 4
[2]
2
