Carriage Relay Pcb - Canon imageprograf ipf700 Service Manual

Chapter 6
J3602
Pin
Signal name
Number
33 GND
34 H1-B-DATA-3-EV_B
35 GND
36 H1-B-DATA-2-EV_B
37 GND
38 H1-A-DATA-1-EV_B
39 GND
40 H1-A-HE-1_B
41 GND
42 H1-A-DATA-0-EV_B
43 GND
44 H1-A-HE-0_B
45 GND
46 H1-A-DATA-0-OD_B
47 GND
48 H1-A-DATA-1-OD_B
49 GND
50 H1-B-HE-2_B

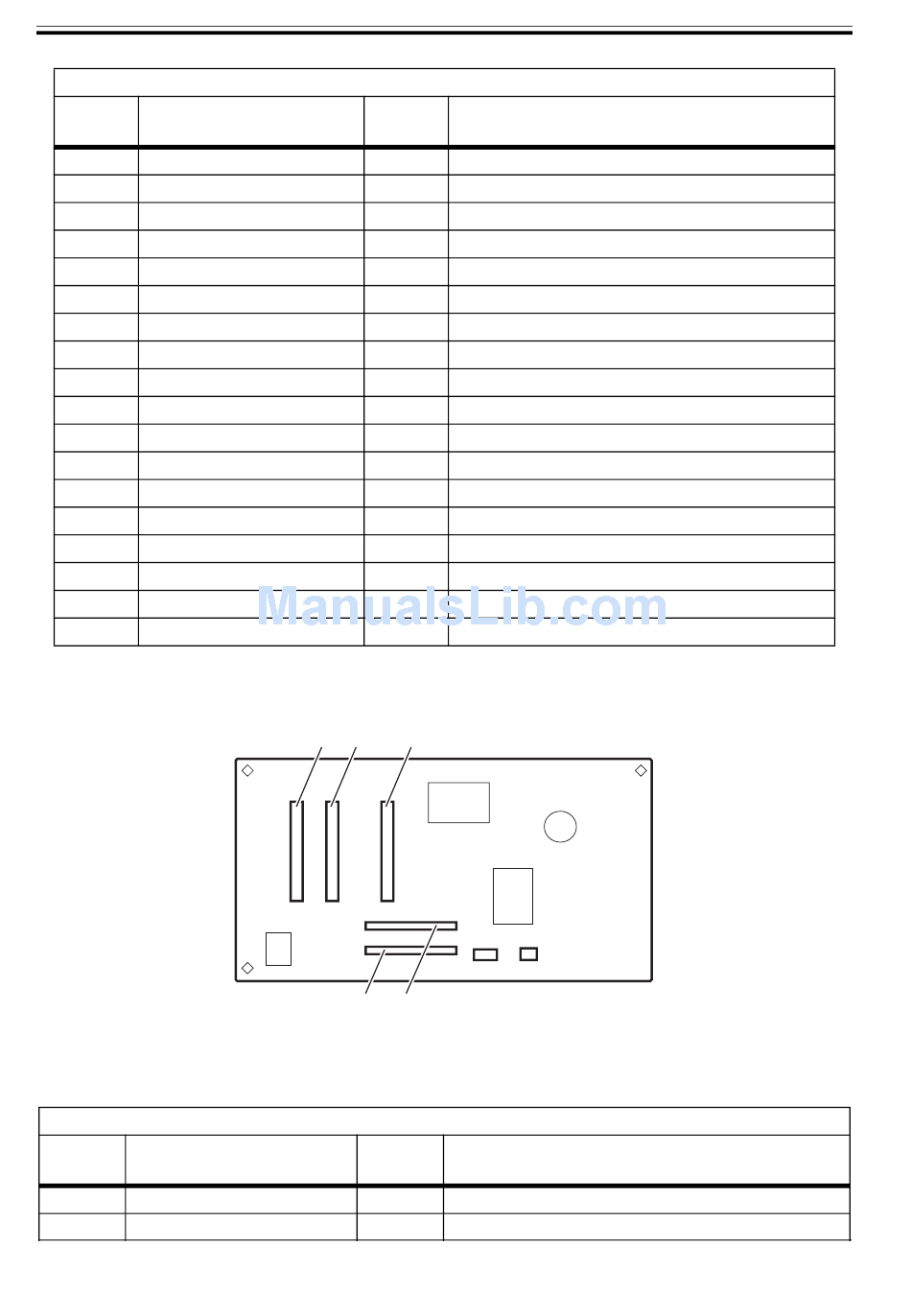

6.2.2 Carriage relay PCB

J101
Pin
Signal name
Number
1 VMGND
2 VMGND
6-28
IN/OUT Function
- GND
OUT Even head data signal 3(B)
- GND
OUT Even head data signal 2(B)
- GND
OUT Even head data signal 1(A)
- GND
OUT Head heat enable signal 1(A)
- GND
OUT Even head data signal 0(A)
- GND
OUT Head heat enable signal 0(A)
- GND
OUT Odd head data signal 0(A)
- GND
OUT Odd head data signal 1(A)
- GND
OUT Head heat enable signal 2(B)
J101 J103 J102
J201
J702 J601
F-6-2
T-6-17
IN/OUT Function
- GND
- GND
J202
0013-7815
