Canon and the Canon logo as well as imagePROGRAF and the imagePROGRAF logo are trademarks or registered trademarks of Canon, Inc.
Apple and the Apple logo are registered trademarks of Apple Computer, Inc.
Microsoft and Windows are trademarks or registered trademarks of Microsoft Corporation in the United States and other countries.
Intel is a registered trademark of Intel Corporation in the United States and other countries.
•
For instructions on installing the IEEE 1394 (FireWire) expansion board, refer to the manuals provided with these accessories.
•
If an error message is displayed or problems occur, refer to Section 9, "Responding to Messages" (page 8).

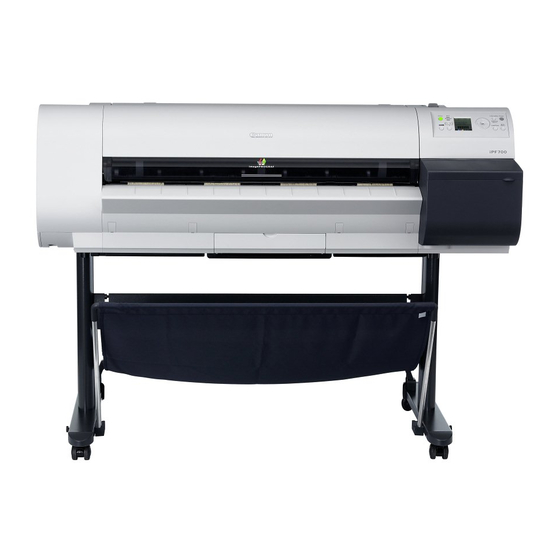

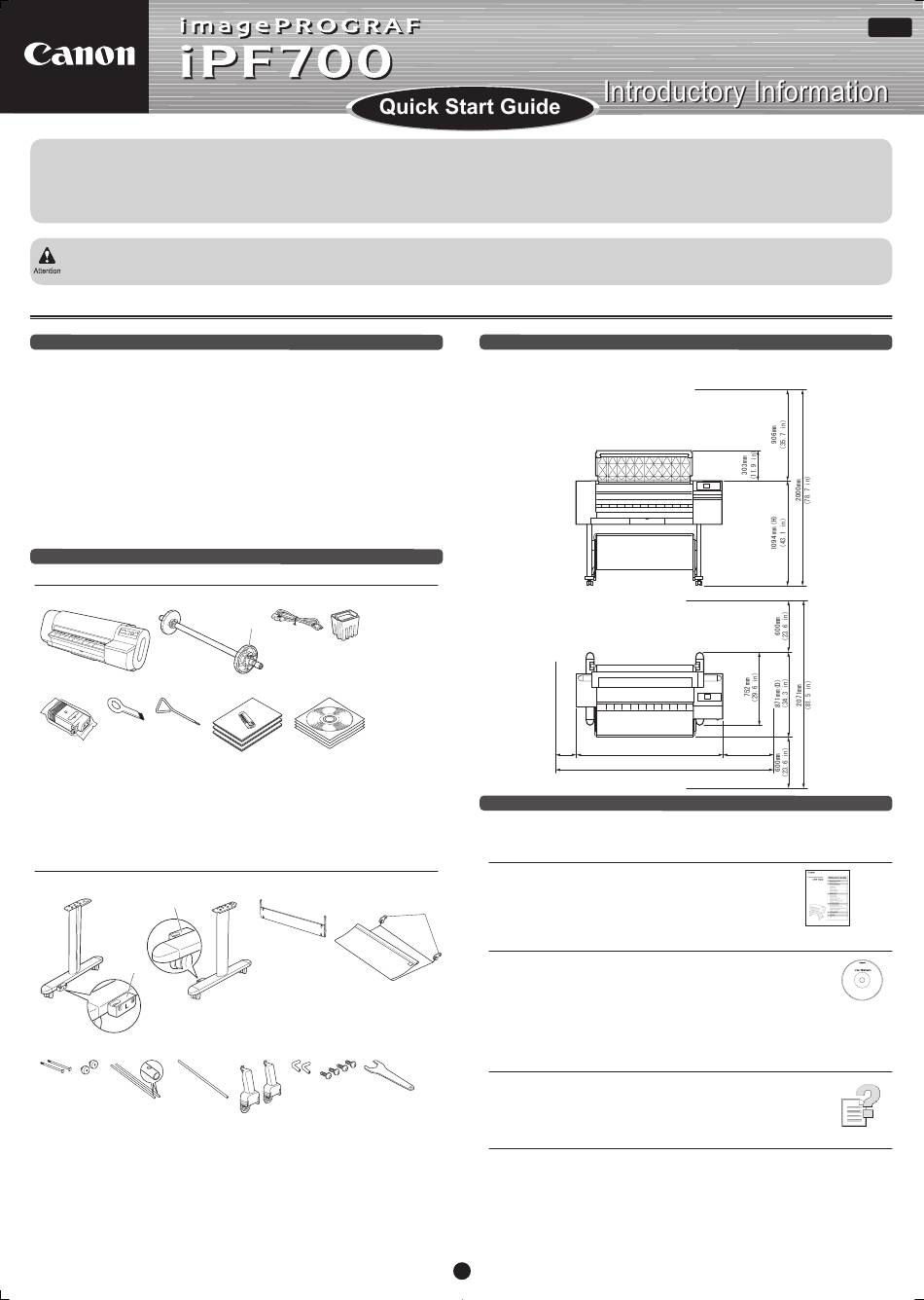

Introduction
Installation Overview
These are the steps in printer installation.
1.
Assemble the Stand
2.
Attach the Output Stacker
3.
Install the Printer
4.
Remove the Packaging Material
5.
Install the Printhead
6.
Install an Ink Tank
7.
Load a Roll
8.
Install the Printer Driver
Details for each step are given in this Quick Start Guide. Simply follow the instructions to
install the printer.
Package Contents
Printer
a
b
f
g
h
a.
Printer
b. Roll Holder: Preinstalled on the printer
c. Holder Stopper: Preinstalled on the
printer
d. Power Cord
e.
Printhead
Stand
a
b
d
c
h
i
j
k
a.
Stand L
b.
Stand R
c.
Basket Fastener L
d.
Basket Fastener R
e.
Stand Stay
f.
Output Stacker
g.
Basket Fastener A
Basket Bolts (2)
h.
Other documentation may also be included in the package.
AB7-5374-V1
d
e
c
i
j
f.
Starter Ink Tanks: Bk, MBk (2), C, M, and Y
g.
Cleaning Brush
h.
Allen Wrench
i.
Documentation
Set of CD-ROMs
j.
e
f
l
m
n
o
i.
Basket Decorative Nuts (2)
j.
Basket Rod #1 (2)
k.
Basket Rod #2
l.
Basket Holder (2)
m.
Basket Rod Caps (2)
n.
Main Unit Securing Bolts (4)
o.
Wrench
Space Required for Installation
Ensure that ample space is available before installing the printer, somewhat more than the
following measurements.
Height
Width and Depth
200mm
(7.9 in)
After installing the printer as shown in this Quick Start Guide, refer to the other
documentation for instructions on operation and maintenance.
Everyday Operation
The Reference Guide includes the following information.
•
Instructions on basic operation
•
Maintenance procedures
g
•
Troubleshooting tips
Detailed Instructions
The User Manuals CD-ROM includes the following information.
•
Printer operating instructions
•
Printer driver instructions
•
Printing instructions
•
Maintenance procedures
•
Instructions for network printing
Printer Driver Functions
The printer driver help includes the following information.
•
Printer driver function details
•
Printer driver instructions
Supported Paper
The Media Guide provides information about paper. The Media Guide is installed on your
computer from the User Software CD-ROM when you install the Media Configuration
Tool.
•
To access the guide in Windows, choose Start > All Programs > iPF700 Media
Configuration Tool > Media Guide.
•
On a Macintosh computer, double-click the Media Guide shortcut icon (iPF700) on the
desktop.
1
1507mm(W)
600mm
(59.3 in)
(23.6 in)
2307 mm
(90.8 in)
Printer Documentation
•
Troubleshooting tips
•
Printer menu descriptions
•
Printer driver function details
•
Specifications, details on consumables and
optional accessories, and other information
©CANON INC. 2006
USA
Printed in JAPAN
