2.5.4 Paper path system
0012-6327

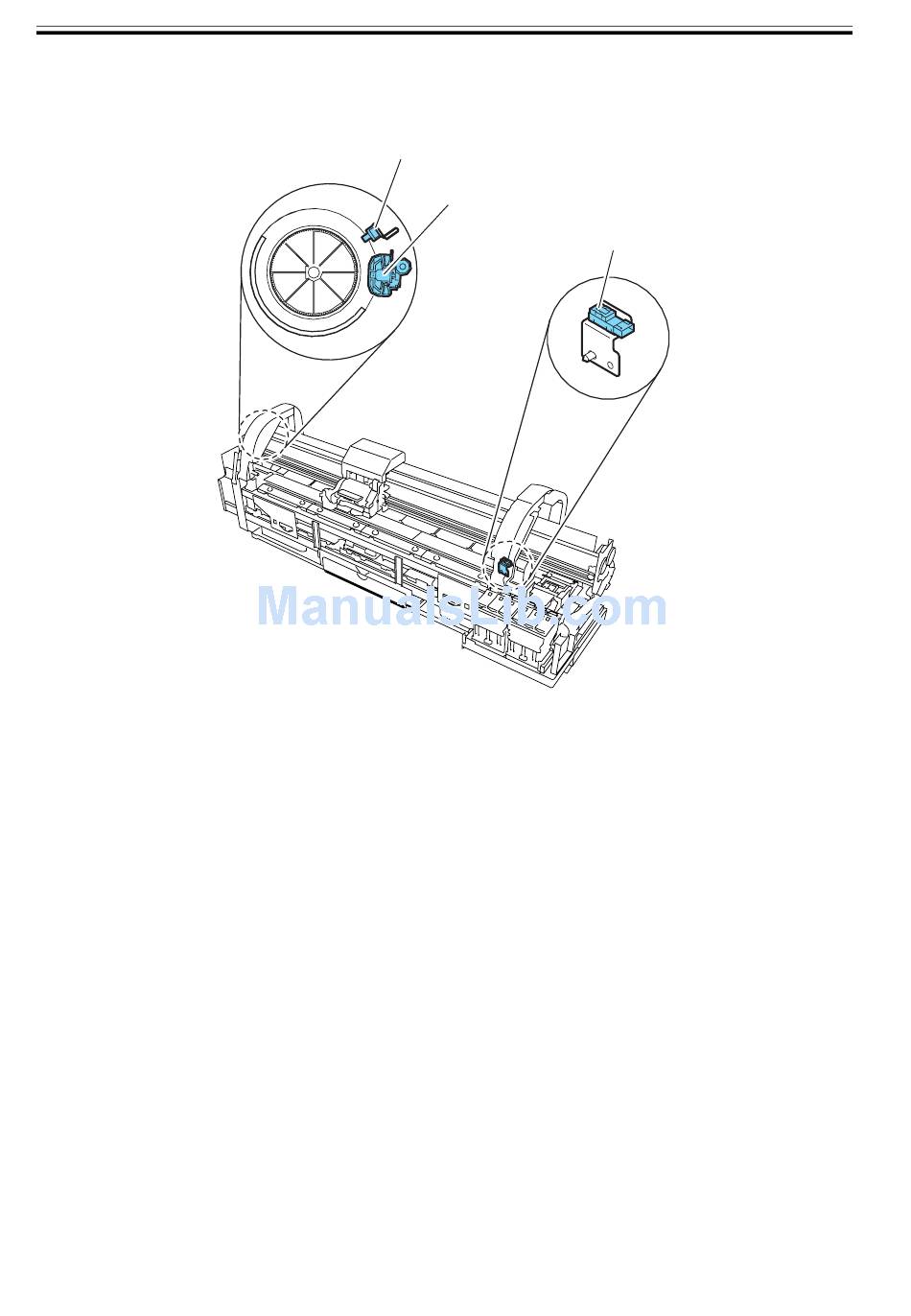

Feed roller HP sensor
Feed roller encoder
Media sensor
F-2-35
Media sensor
The photoreflector-based media sensor detects the presence or absence of paper on the platen.
The sensor detects the presence of paper when it receives sensor light reflected upon the paper.
Feed roller HP sensor
The feed roller HP sensor sets an LF eccentricity correction home position by detecting transitions from black
(shielded) to white (transmitted), or a reference, in the scale in the code wheel.
Feed roller encoder
The feed roller encoder detects the carriage position from slits in the feed roller pulley as it is driven.
