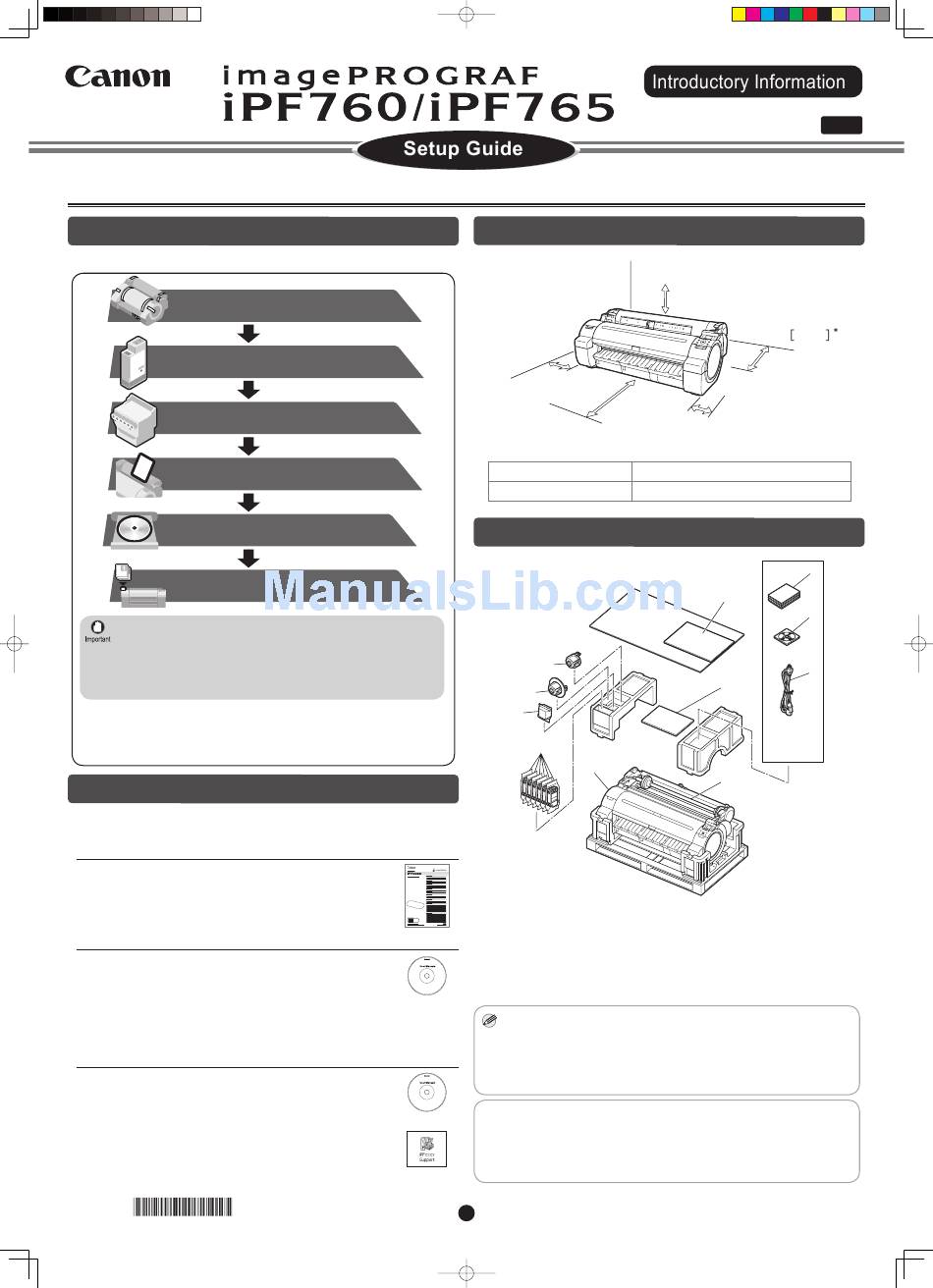

Canon imagePROGRAF iPF760 Setup Manual

Introduction
Overview of Setup
These are the steps in printer installation.
Preparations
Install the Ink Tanks
Install the Printhead
Load Paper to Adjust the Printhead
Install the Printer Driver and
the User Manual
Store Accessories in the Pockets
• Even if you do not use the printer driver, be sure to install Media
Confi guration Tool from the provided User Software CD-ROM. With
Media Confi guration Tool, the paper types that are available in your
area can be registered to the printer. For instructions on installation,
refer to "Install the Printer Driver and the User Manual" on page 6.
(In Windows, select Install Individual Software in the Setup Menu
window to install Media Confi guration Tool only.)
Details for each step are given in this Setup Guide . Simply follow the instructions
to install the printer.
If an error message is displayed during setup or other problems occur, refer to
"Responding to Messages" on page 12.
Printer Documentation
After installing the printer as shown in this Setup Guide , refer to the
documentation for instructions on operation and maintenance.
Daily operation
The Basic Guide contains the following information:
• Instructions on basic operation
• Troubleshooting tips and maintenance procedures
• Preparations for transferring the printer
Detailed instructions
The User Manual (electronic manual) includes the following information:
• Printer operating instructions
• Printer driver instructions
• Printing instructions
• Maintenance procedures
• Instructions for network printing
Supported paper
The Paper Reference Guide (electronic manual) provides information
about paper.
You can access the User Manual and Paper Reference Guide as follows:
• In Windows, double-click the iPFxxxx Support desktop icon.
(iPFxxxx represents the printer model.)
• In Mac OS X, click iPF Support, added to the Dock.
QT5-7014-V1
* Q T 5 7 0 1 4 V 1 *
(P.2)
(P.2)
(P.3)
(P.4)
(P.6)
(P.12)
• Troubleshooting tips
• Printer menu descriptions
• Printer driver function details
• Specifi cations, details on consumables
and optional accessories, and other
information
Read this manual before attempting to operate the printer.
Keep this manual in a handy location for future reference.
Space Required for Installation
+200mm
+600mm
*
Values enclosed in [ ] are for when the stand is attached.
iPF760/iPF765
Printer and stand
Package Contents
c
d
e
f
a
a. Printer
b. Roll holder: Already attached to printer
c. 3-inch paper core attachment R
d. 3-inch paper core attachment L
e. Printhead
f. Starter ink tanks:
Bk, MBk (x 2), C, M, Y
• Some items are included with the printer but not described in this manual.
Keep these items in a safe place after setup because they are used in
MEMO
various printing applications.
• For instructions on using items not described in this manual, refer to the
User Manual.
• A cable to connect the printer to a computer is not provided with the printer.
• Canon, the Canon logo, and imagePROGRAF are trademarks or registered trademarks of CANON
INC.
• Microsoft and Windows are trademarks of Microsoft Corporation, registered in the U.S. and other
countries.
• Macintosh is a trademark of Apple Inc., registered in the U.S. and other countries.
• All other trademarks or registered trademarks described in this Setup Guide are the property of
their respective owners.
1
©CANON INC. 2012
+300mm
+10mm 0mm
+200mm
Installation space (W x D x H mm)
1704 × 1700 × 1362
i
g
j
k
h
b
g. Sample paper
h. Setup Guide (this document)
i. Set of printer documentation
j. Set of CD-ROMs
k. Power cord
