Chapter 2
Printer status
When "Head Cleaning" menu
is selected
When "Replace Head" menu
is selected
When "Move Printer" is
selected
c) Ink supply function
The suction pumps in the purge unit are activated, together with ink supply valves, during initial filling and ink
level adjustment to supply inks from the ink tanks to the printhead.

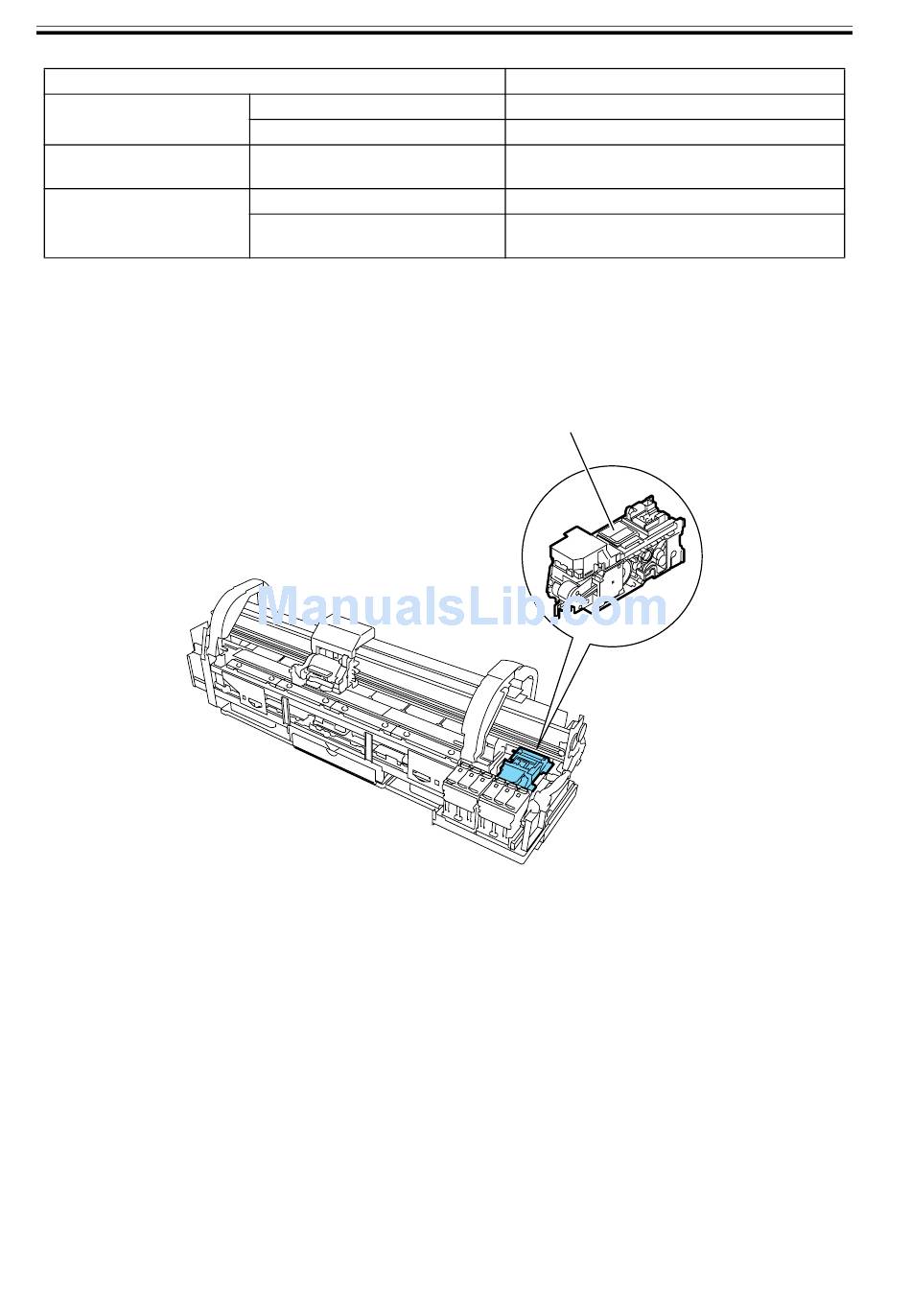

2.3.2.5.2 Structure of Purge Unit
2-20
Manual cleaning (head cleaning A)
Manual cleaning (head cleaning B)
After replacement of head
When "Move Printer" is selected
After the power is turned on during
secondary installation
F-2-12
Description of cleaning
Cleaning 1 (normal cleaning)
Cleaning 6 (normal (strong) cleaning)
Cleaning 2 (fluid level cleaning) + Cleaning 4 (ink
drainage after head replacement)
Cleaning 5 (ink drainage for secondary transport)
Cleaning 10 (ink filling after secondary transport)

Purge unit

0013-8023
