1.7 Safety and Precautions

1.7.1 Safety Precautions

1.7.1.1 Moving parts of the printer

0013-5153
Be careful not to get your hairs, clothing, accessories or any other objects caught in the moving parts of the
printer.
The moving parts of the printer include the carriage unit, carriage belt, ink tube, flexible cable and feed motor
driven by the carriage motor and the feed and pinch rollers driven by the feed motor and the purge unit driven
by the purge motor.
To assure safety, the printer locks the top cover from opening while it is printing. When the top cover is opened
while the printer is in online or offline mode, the driving power to the carriage and feed motors is shut down.

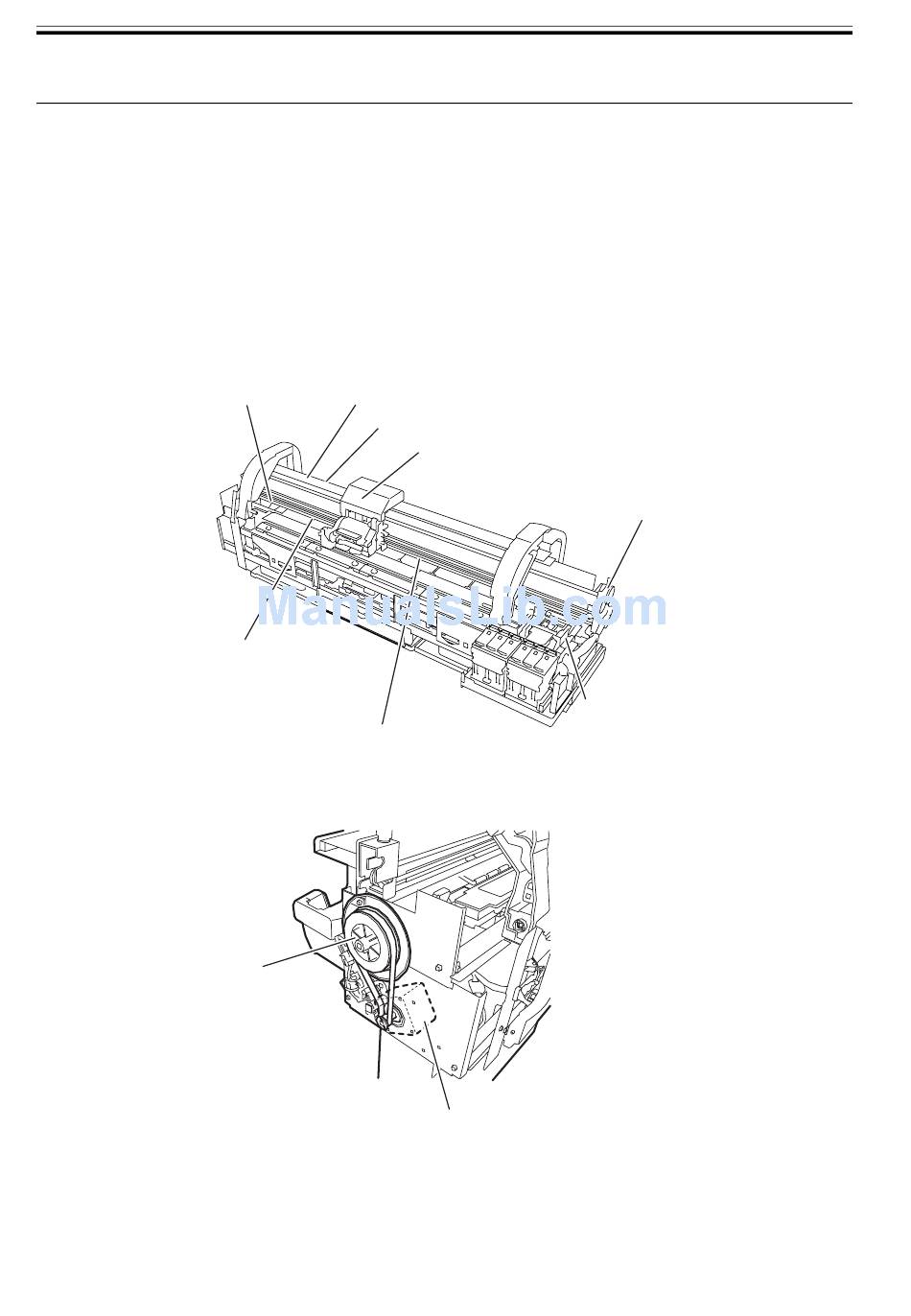

Carriage belt
Ink tube
Flexible cable
Carriage unit
Carriage motor
Feed roller
purge unit
Pinch roller
Feed unit
Feed motor
F-1-21
1-22
