2.1 Basic Operation Outline

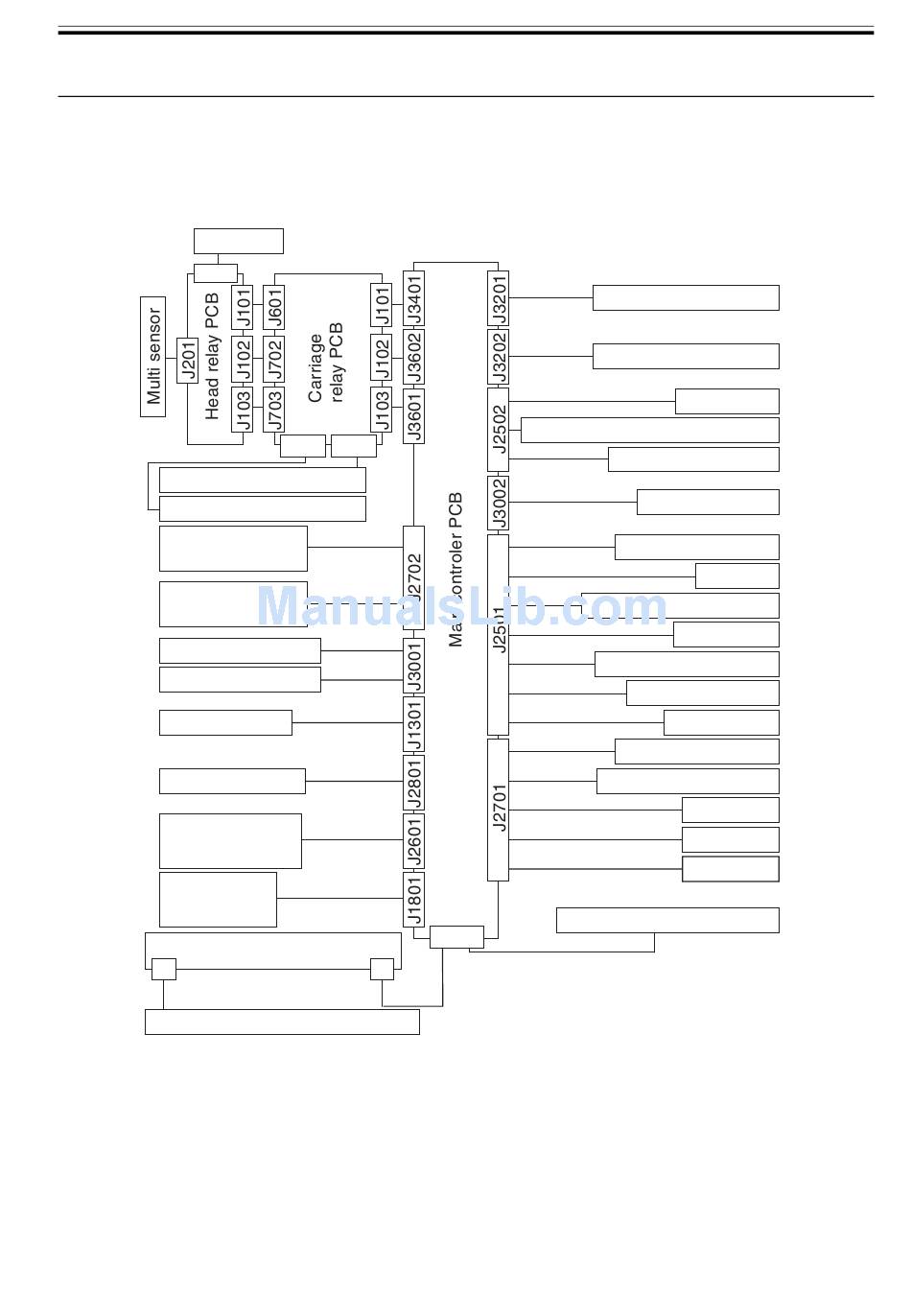

2.1.1 Printer Diagram

A printer diagram is shown below.
Printhead
J601
Linear encoder
Carriage cover sensor
Upper cover lock
solenoid(R)
Upper cover lock
solenoid(L)
Upper cover switch
Upper cover switch
Carriage motor
Feed roller motor
Operation panel
Power supply
Maintenance cartridge
J2
Maintenance cartridge ROM PCB
J202 J201
J3301
J1
F-2-1
Ink tank ROM PCB (L)
Ink tank ROM PCB (R)
Valve motor
Valve open/closed detection Sensor
Ink tank cover switch
Humidity sensor
Carriage HP sensor
Pressure release switch
Pump motor
Pump encoder sensor
Pump cam sensor
Media sensor
Feed roller encoder
Feed roller HP sensor
Suction fan
Mist fan (R)
Mist fan (L)
Head management sensor
Chapter 2
0012-6242
Lift motor
2-1
