J702
Pin
Signal name
Number
50
IO-ASIC_SCL

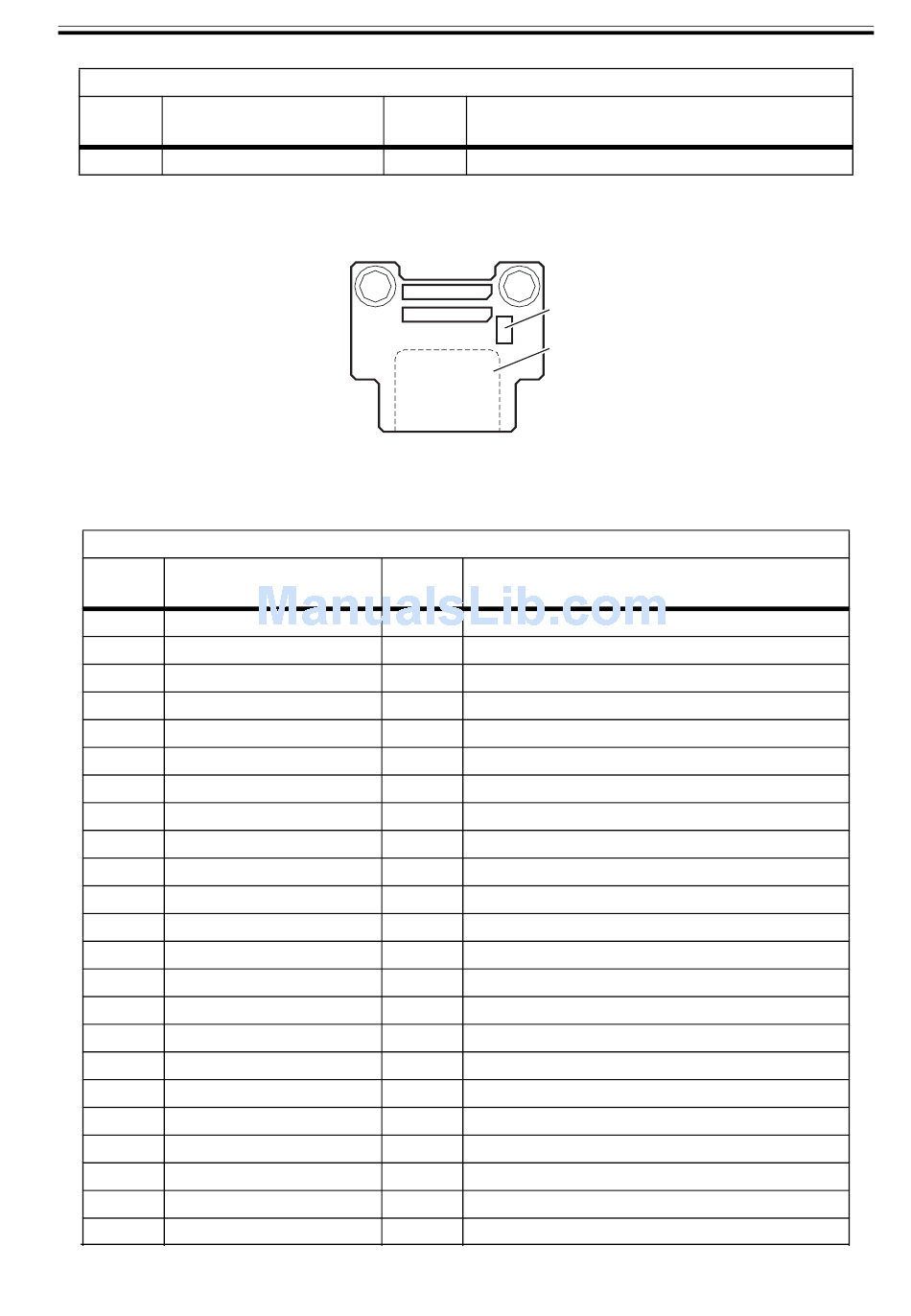

6.2.3 Head relay PCB

J101
Pin
Signal name
Number
1
VMGND
2
PWLED1
3
PWLED2
4
PWLED3
5
PWLED4
6
VMGND
7
H3V
8
VH1_FB
9
VH1
10
VH1
11
VH1
12
VH1
13
VH1
14
VH1
15
VMGND
16
VMGND
17
VMGND
18
VMGND
19
VMGND
20
VMGND
21
VH2
22
VH2
23
VH2
IN/OUT Function
IN/OUT
Head ROM control signal (clock)
J101
J201
J102
J601
F-6-3
T-6-24
IN/OUT Function
-
GND
IN
Multi sensor LED1 drive signal
IN
Multi sensor LED2 drive signal
IN
Multi sensor LED3 drive signal
IN
Multi sensor LED4 drive signal
-
GND
IN
Power supply (+3V)
IN
VH feed back voltage -
IN
Power supply
IN
Power supply
IN
Power supply
IN
Power supply
IN
Power supply
IN
Power supply
-
GND
-
GND
-
GND
-
GND
-
GND
-
GND
IN
Power supply
IN
Power supply
IN
Power supply
Chapter 6
0012-6417
6-35
