Printronix T5000 User Manual page 52

Chapter 2
Using The Optional Internal Rewinder
Media
Guide

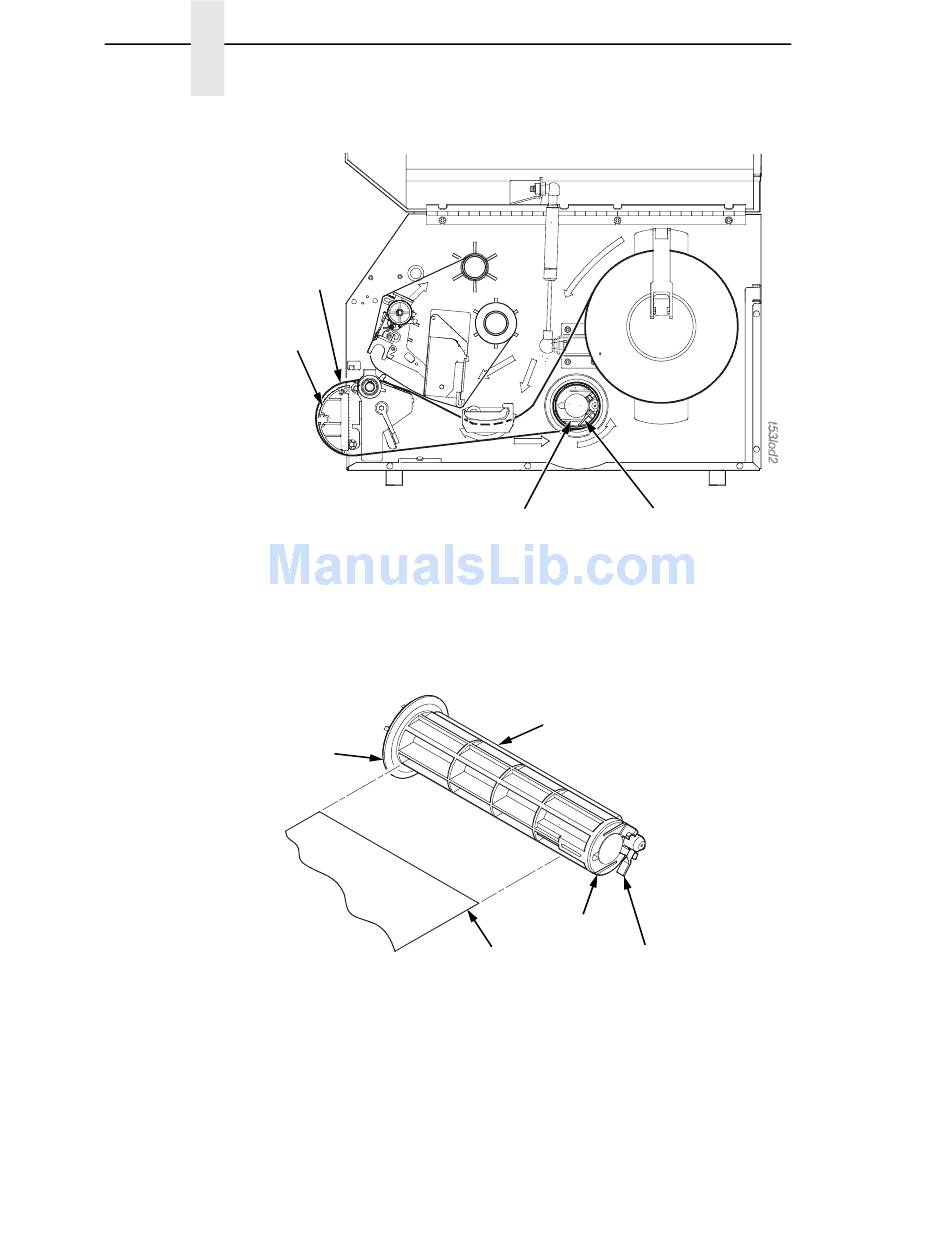

2. Thread the media over the front of the media guide and through the
opening under the front door toward the internal rewinder.
IMPORTANT
If you do not complete the following step, it will be extremely difficult to
remove the printed labels from the rewinder.
Back Flange
3. Turn the release lever on the rewinder counterclockwise and lock it in
place. This forms a raised ridge along the width of the rewinder.
4. Insert the leading edge of the media into the closest slot of the rewinder,
and slide the media against the back flange.
5. Hold the media edge in the slot and manually rotate the rewinder one full
revolution counterclockwise until the media is taut.
52
Media
Media or Liner
Release
Slot
Lever
Raised Ridge
Slot
Release Lever
(counterclockwise position)
