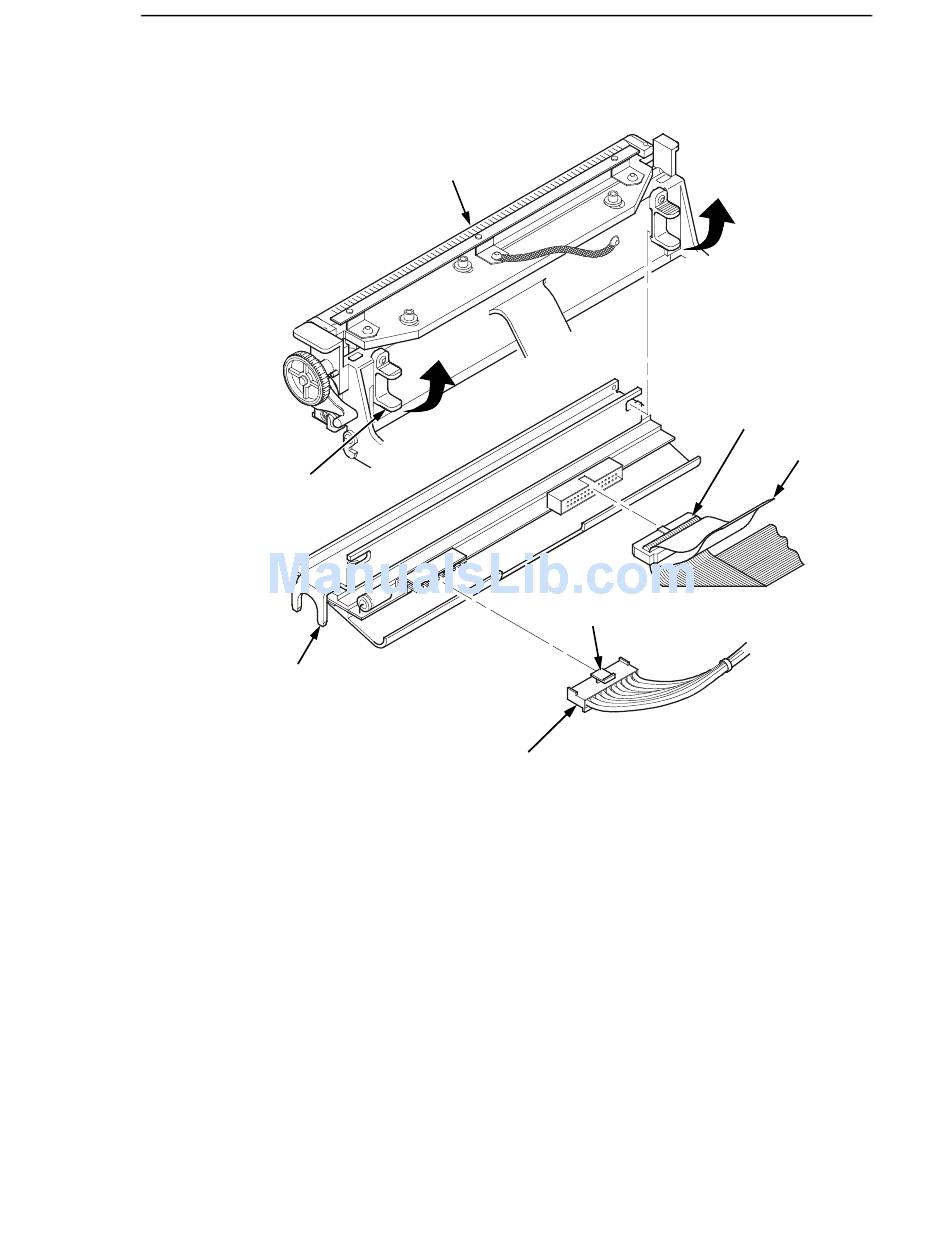

Pivoting Deck
Printhead
Retainer Clip (2)
Printhead
Assembly
Power Supply
Cable Assembly
3. Behind the pivoting deck, gently pull the lower arms of the retainer clips
upward to release printhead. You only need to push the clips a small
amount to release the printhead.
4. Hold the printhead by the black powder coated aluminum cover as it
drops down.
5. Push the release tab down and pull the power supply cable out of the
printhead assembly.
6. Use the pull-tab to disconnect the printhead/controller cable from the
printhead assembly.
7. Unwrap the new printhead.
8. Position the new printhead below the pivoting deck and install the power
supply and printhead/controller cable assemblies to the printhead
assembly.
9. Slide the printhead upward into the pivoting deck until the retainer clips
catch it and it snaps into place. You can pull the printhead retainer clips
up slightly to help engage the printhead.
Replace The Printhead
Printhead
Controller Cable
Assembly
Release
Tab
Pull-Tab
