Push down on the corner of the printer's top cover to unlatch it. Lift the top cover
to the fully upright position.
Remove the print ribbon cartridge. See
page
4-2.
If the printer has a topcoat or overlay station in location 1, remove the supply
cartridge to enable the card track gate to open farther. See
cartridge" on page
4-14.
Lift the card track gate release (step 1 in Figure 7-9) and move the gate back (step
2 in Figure 7-9) to allow access to the magnetic stripe head.
ICIV083U

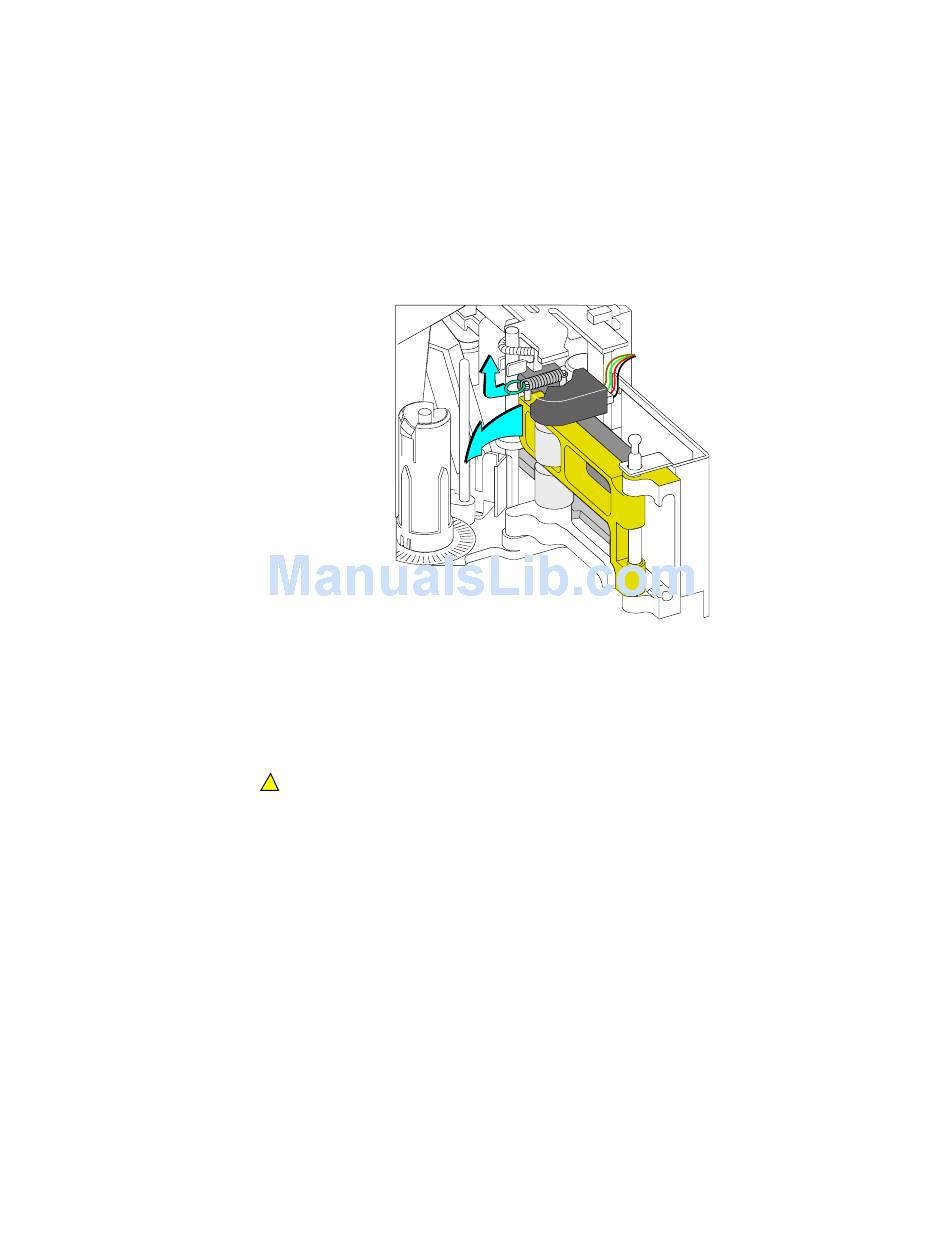

Figure 7-9: Open the card track gate
Open the cleaning pen.
Hold a finger behind the magnetic stripe head to support it (A in
Using gentle pressure, move the cleaning pen back and forth on the silver surface
of the magnetic stripe head.
!
Do not use firm pressure. If you do, components of the magnetic stripe
module might be pushed out of alignment. Use light pressure and more
repetitions.
"Removing the print ribbon cartridge" on
1
2
User's Guide for the ImageCard® IV Printer
Maintaining the printer
"Removing the topcoat
Figure
7-10).
