This section provides detailed information on the VCX V7122 hardware components, the
location and functionality of the LEDs, buttons and connectors on the front and rear panels.

General

The VCX V7122 gateway comprises the following hardware components:
A 19-inch 1U high rack mount chassis (see
A single compactPCI™ TP-1610 board (see
A single TP-1610 Rear Transition Module (RTM) (see
page 23).
A single available cPCI slot for an optional third-party CPU board (see
Board on page 24).

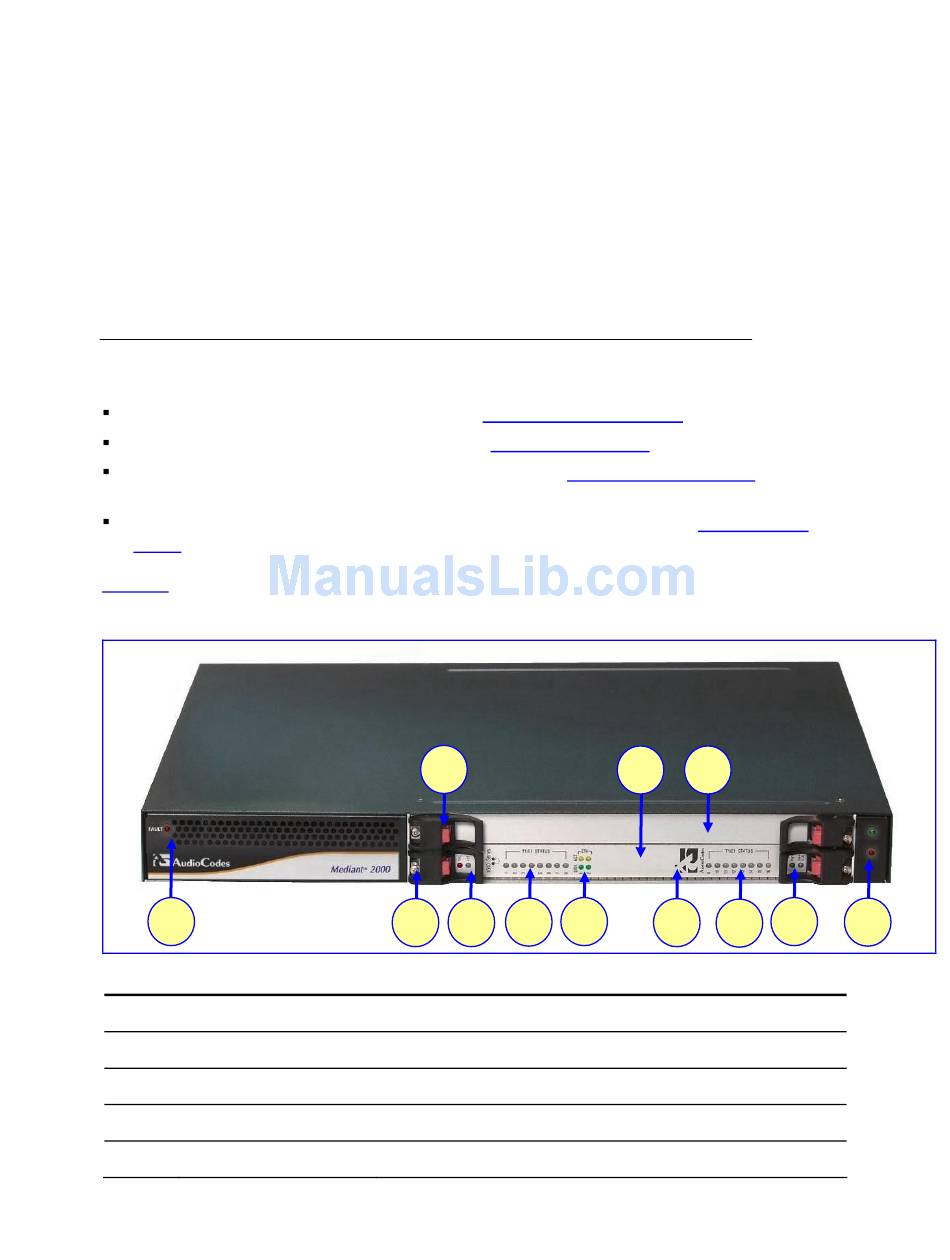

Figure 2 shows the front view of the VCX V7122 media gateway.
Figure 2 VCX V7122 Front View
1
Table 2 VCX V7122 Front View Component Descriptions
Item # Label
1 FAULT
2
3
4
3Com VCX V7122 SIP VoIP Gateway User Manual
The VCX V7122 Chassis
The TP-1610 Board
3
6
2 5
Component Description
Dual AC Power LED.
cPCI board locking screws.
cPCI latches.
TP-1610 cPCI board, 16-trunk configuration.
HYSICAL
on page 20).
on page 20).
Rear Transition Module
Optional CPU
4 11
7
8
6
on
9 10
19
