7
Click the Submit button to save your changes.
8 To save the changes so they are available after a power fail, see
page 88.
IP Profile Settings
Use the IP Profile Settings screen to define up to four different IP Profiles. These Profiles are
used in the Tel to IP and IP to Trunk Group Routing tables to associate different Profiles to
routing rules. IP Profiles can also be used when working with Proxy server (set
'AlwaysUseRouteTable' to 1).
To configure the IP Profile settings, follow these steps:
1
Open the 'IP Profile Settings' screen (Protocol Management menu > Profile
Definitions submenu > IP Profile Settings option); the 'IP Profile Settings' screen is
displayed.

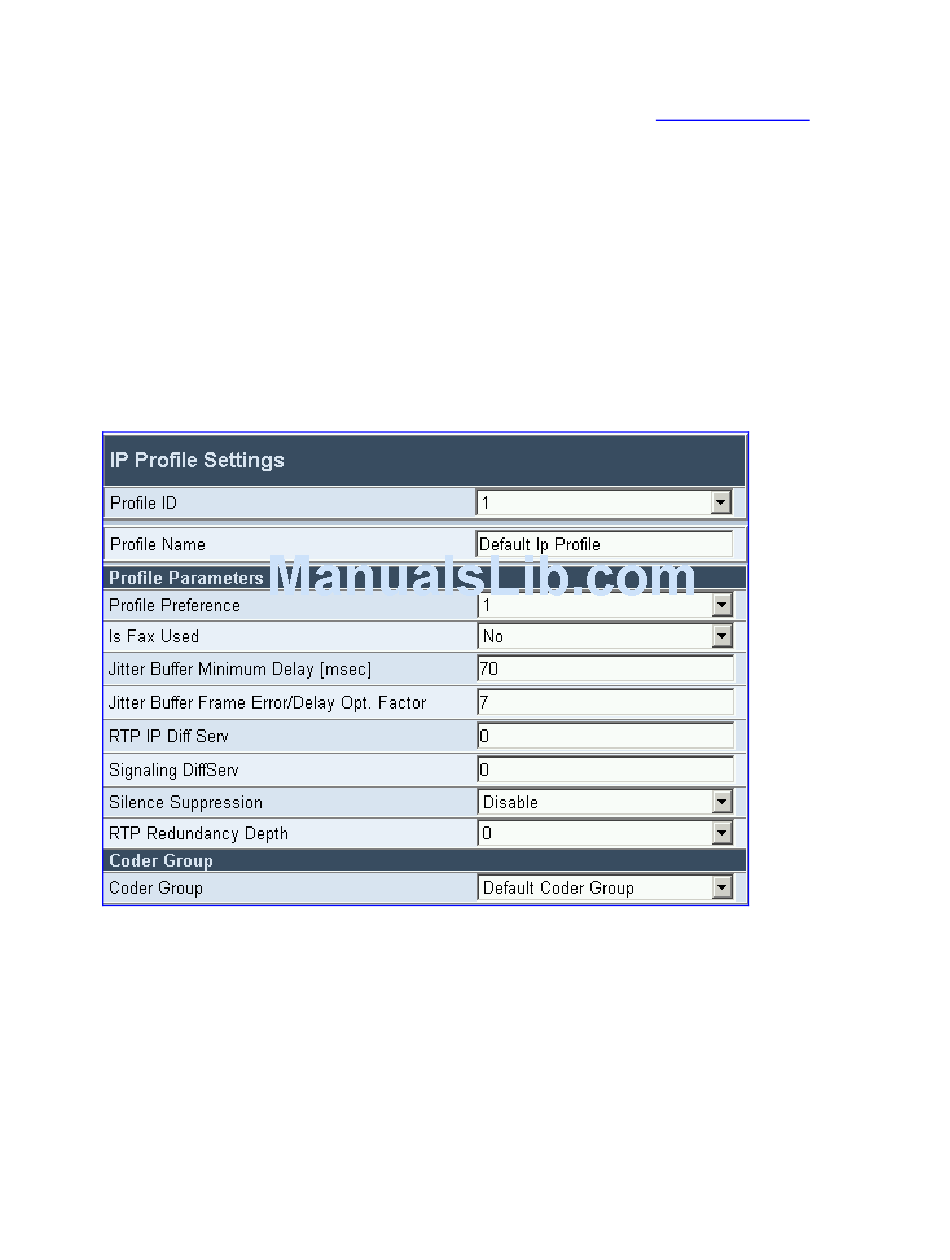

Figure 26
IP Profile Settings Screen
2 In the 'Profile ID' drop-down list, select the IP Profile you want to edit (up to four IP
Profiles can be configured).
3
In the 'Profile Preference' drop-down list, select the preference (1-10) of the current
Profile. The preference option is used to determine the priority of the Profile. If both IP
and Tel profiles apply to the same call, the coders and other common parameters of the
preferred Profile are applied to that call. If the Preference of the Tel and IP Profiles is
identical, the Tel Profile parameters are applied.
Note: If the coder lists of both IP and Tel Profiles apply to the same call, an intersection
of the coders is performed (i.e., only common coders remain). The order of the coders is
determined by the preference.
