Installing An Acx2000 Or Acx2100 Console Or Auxiliary Cable - Juniper ACX2000 Hardware Manual

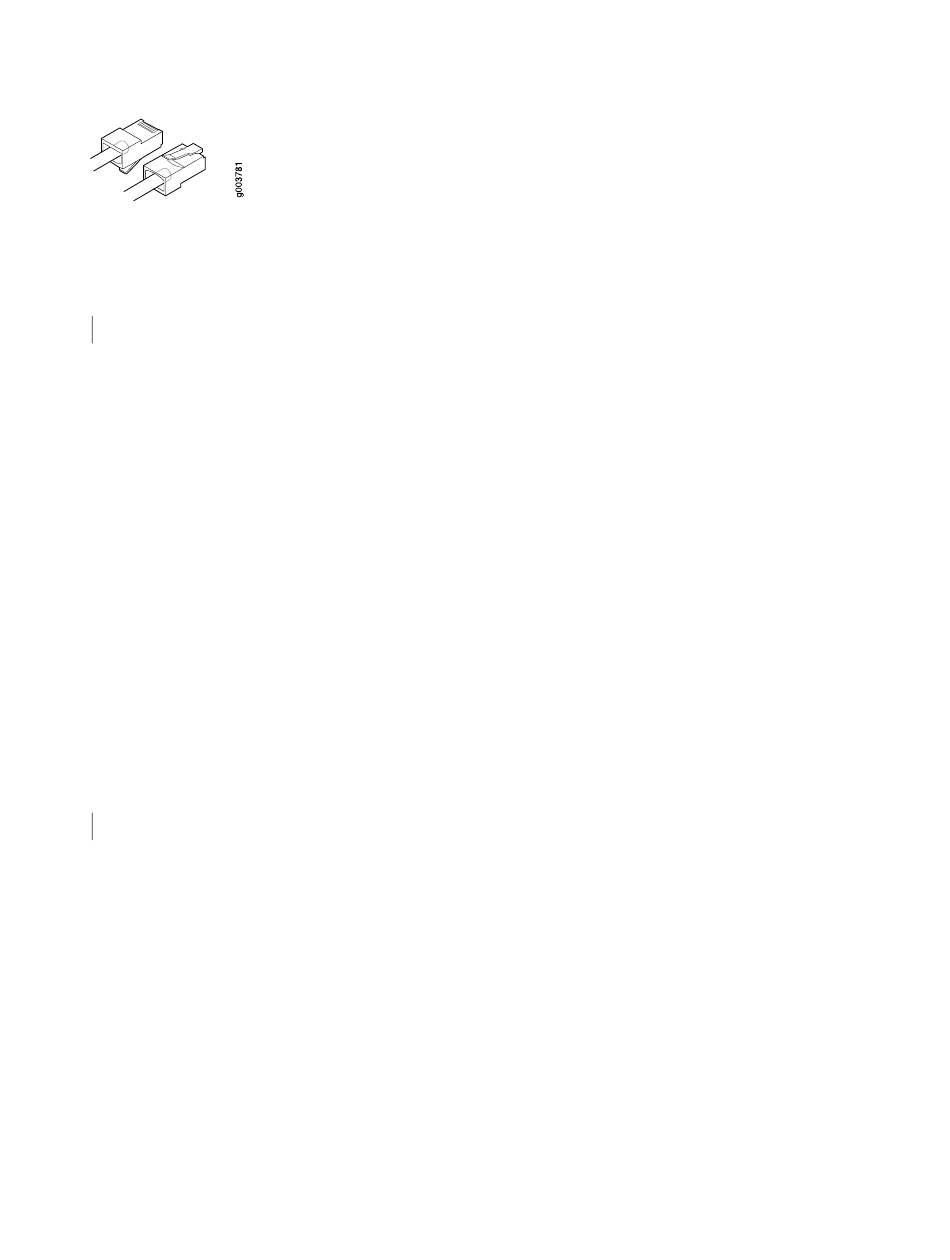

Figure 30: Ethernet Cable Connectors
SEE ALSO
Console or Auxiliary Port Connector Pinout on ACX Series Routers | 88

Installing an ACX2000 or ACX2100 Console or Auxiliary Cable

The CONSOLE/AUX port on the front panel of the router accepts an RS-232 (EIA-232) serial cable with
RJ-45 connectors.
To connect a cable between the router and the console or auxiliary device:
1. Wrap and fasten one end of the ESD grounding strap around your bare wrist, and connect the other
end of the strap to an ESD point.
2. Connect one end of the replacement cable into the CONSOLE/AUX port.
3. Plug the other end of the cable into the device's serial port.
SEE ALSO
Console or Auxiliary Port Connector Pinout on ACX Series Routers | 88
