Chapter 2
Installation

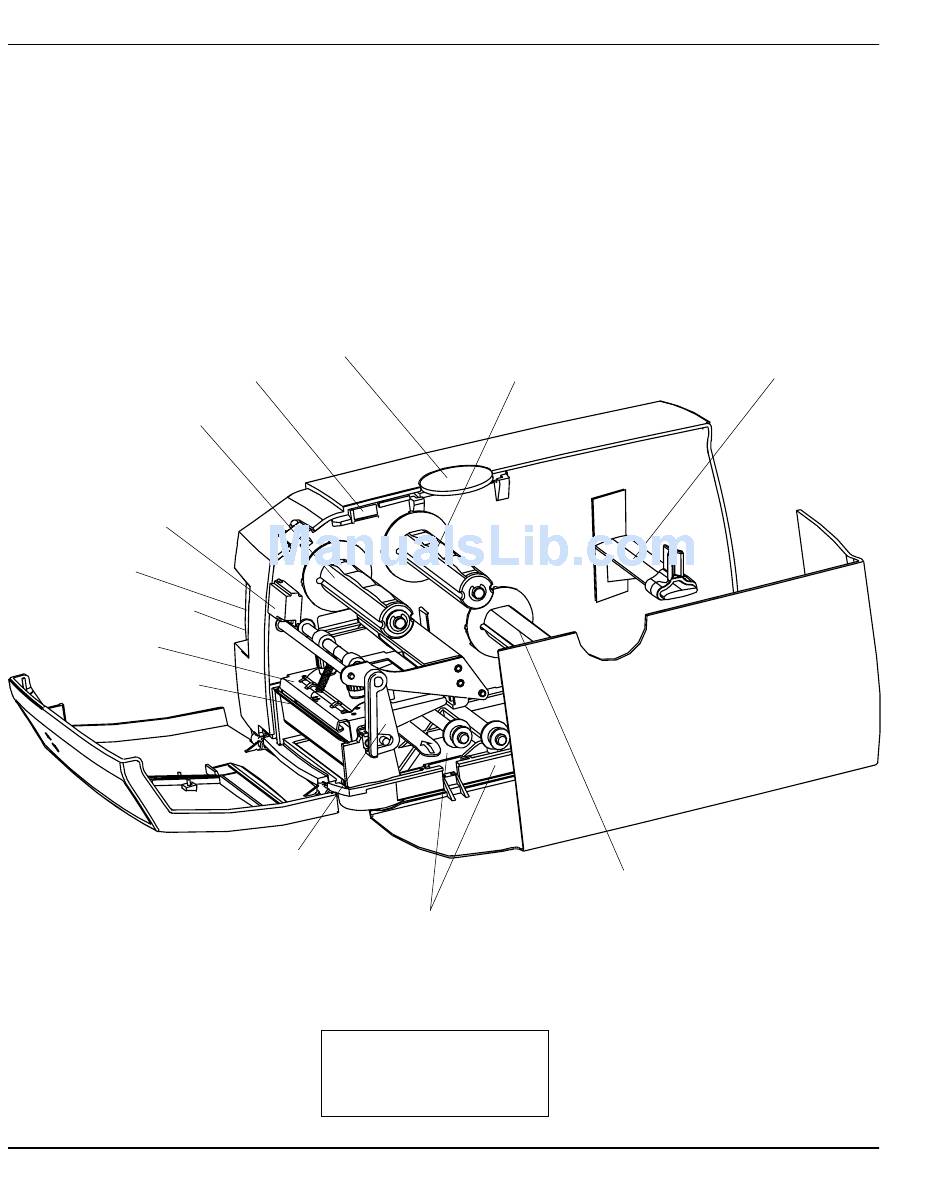

Main Parts
Front Cover Release
Transfer Ribbon
Rewind Hub
Label Taken Sensor
Cutter Interface
Bar Code Wand Socket
Thermal Printhead
Tear Bar
8
Side Cover Release
Printhead Lift Lever
Guide Shafts
The left side of the case is
not designed to be opened
by the operator.
Transfer Ribbon
Supply Hub
Liner Takeup Hub
Intermec EasyCoder E4 – Installation & Operation Ed. 2
Media Supply Roll Post
