Serial RS-232C Connector

The RS232 connectors (Figure A-2) are sealed receptacle, 7 pin, ODU p/n G80F1C-T07QC00-
0000.
Table A-6 gives the RS-232C cable connector specifications.
102
3
4

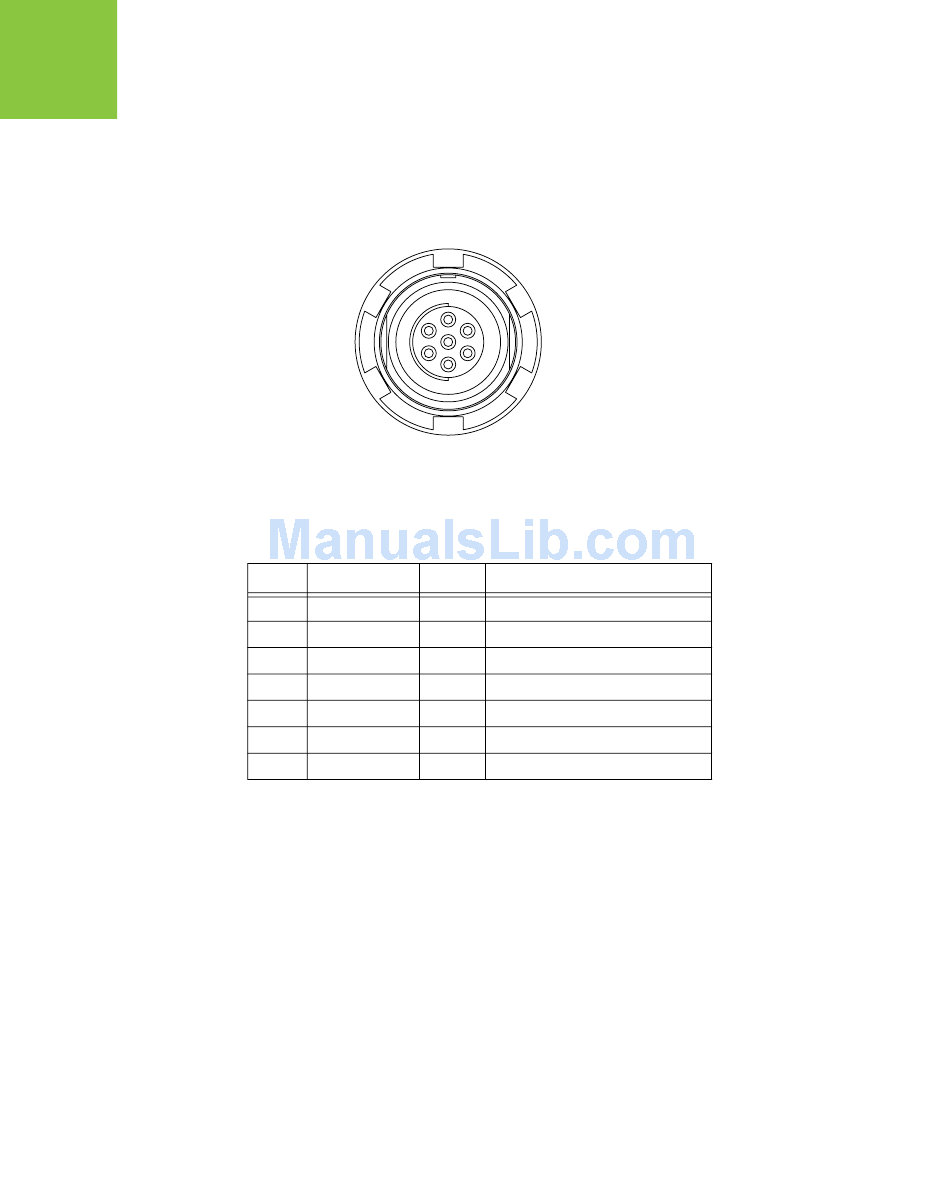

Figure A-2. RS-232C Connector
Table A-6. RS-232C Cable Connector Specifications
Number Signal Name
1 Power_OUT P
2 GND -
3 CTS I
4 RTS O
5 RXD I
6 TXD O
7
2
7
1
6
5
Dir Details
Power Output (supplied voltage)
Signal ground
Clear to send
Request to send
Receive data
Transmit data
Not used
