BATTERY CHARGING
D Regular charging with the BC-171
The optional BC-171 provides regular charging of the Li-ion battery
pack.
Charging time: Approximately 4 hours (with BP-230N)
The following items are additionally required:
• A power adapter (not supplied with some versions) or the DC
power cable (OPC-515L/CP-23L) is additionally required.
Power adapter
(A different type, or no power adapter is
supplied, depending on the version.)
Optional OPC-515L*
(for power source)
or CP-23L (for 12 V
cigarette lighter socket)
can be used instead of
the power adapter.
CAUTION: NEVER
*
connect the
OPC-515L to a
power source using
reverse polarity.
This will ruin the
battery charger.
White line:
Black line :
22

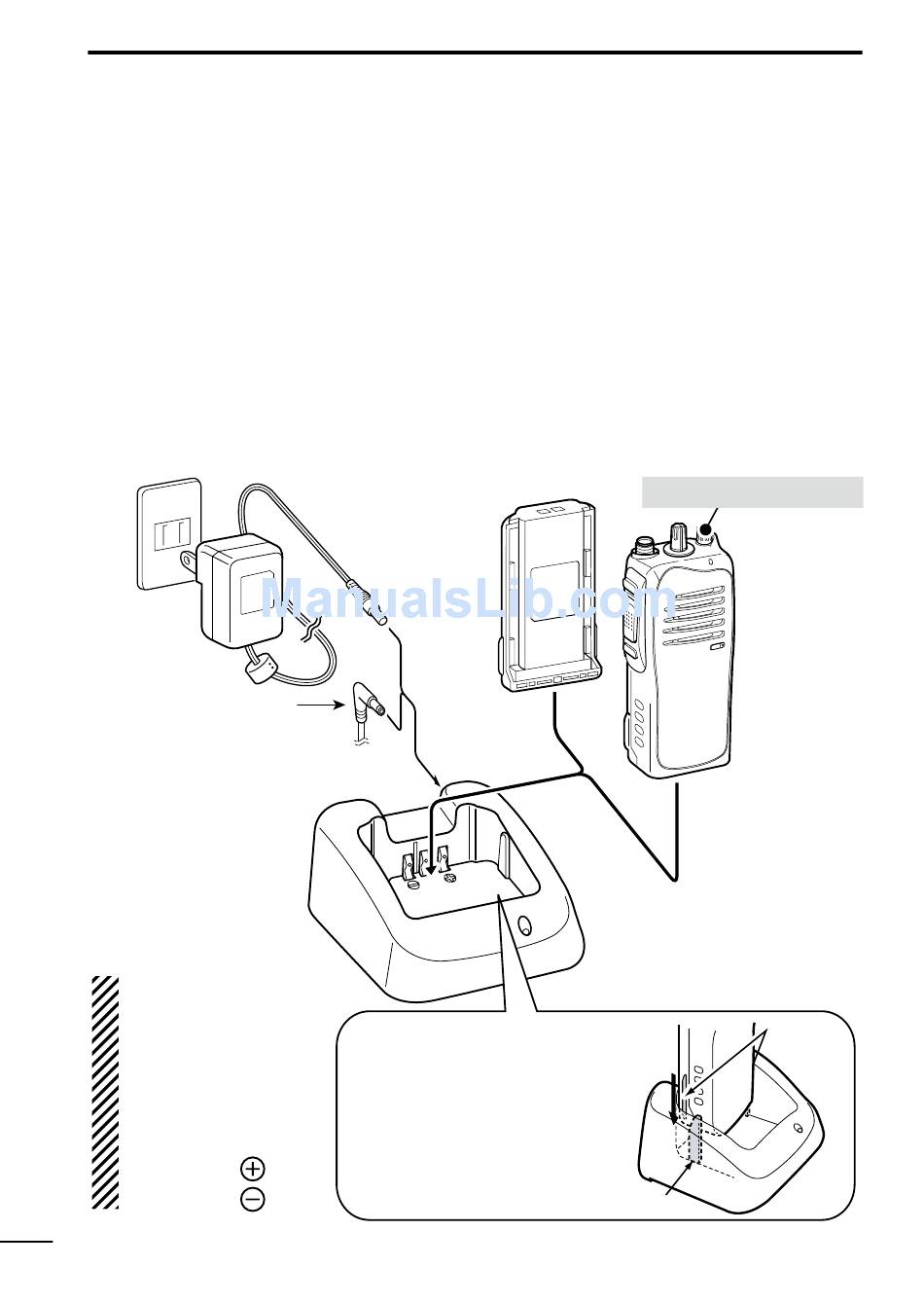

Battery pack
IMPORTANT!
Ensure the guide tabs on the
battery pack are correctly
aligned with the guide rails
inside the charger adapter.
Transceiver
Turn OFF the power
Guide rail
Tabs
