2.3 DMX output addresses

All control signals from the Scancommander are on DMX 512 and are sent on
a two conductor cable to stage. Therefore the single scans need to have a
DMX start address to know, to which data they must respond.. Usually this
address can be selected by a DIL switch directly on the lamp or at their DMX
interface.
On the SCANCOMMANDER these addresses have to be set for the individual
scans.
SETUP
DMX
PATCH
CLEAR
Scans
Dimmer
EXTRA 1
EXTRA 2
131
SCANS
Encoder 1:
PATCH
( )
Clear
1 1 (6) 1 - - (3)
2 7 (6) 2 - - (3)
3 13 (6) 3 - - (3)
4 19 (6) 4 - - (3)
5 25 (6) 5 - - (3)
6 31 (6) 6 - - (3)
7 37 (6) 7 - - (3)
8 43 (6) 8 - - (3)
9 49 (6) 9 - - (3)
10 55 (6) 10 - - (3)
11 61 (6) 11 - - (3)
12 67 (6) 12 - - (3)
13 73 (6) 13 - - (3)
14 79 (6) 14 - - (3)
15 85 (6) 15 - - (3)
16 91 (6) 16 - - (3)
The square SCANS has to be inverted.

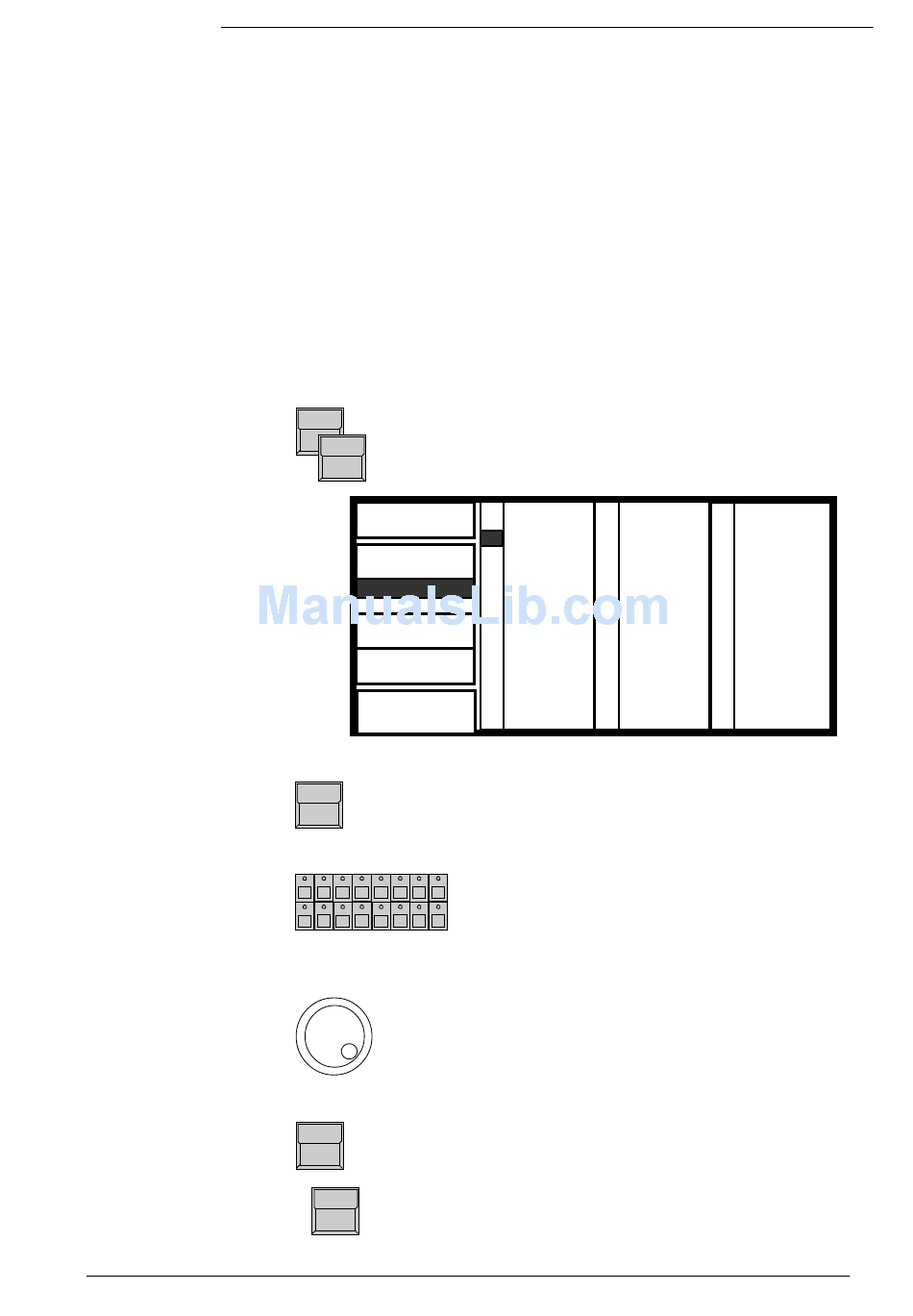

SCAN Selection buttons
DMX start addresses have to be set one by one for all
scans. The scans have to be selected by their re-
spective button in the SCAN SELECTION block.
Selects the startaddress. An address is only possi-
ble to select, if the number of channels, needed for
this scan, is freely available (Number in brackets
shows the number of channels, necessary for the
registered lamptype)
Registers the selected address for the activated Scan.
To go on the next automatically selected scan has to
be chosen.
Clears the registered address and enables the selec-
tion of a new start address.
