Trigpoint and x-fade
Memory pages
A small graphic
shows the STORE
matrix of this memory
Memory name and
parameters
Storing a memory
eMail: info@malighting.de . Tel.: + 49 9 31 49 79 40 . User's Manual Scancommander
Features may be selected for slow infade (indicated by the small ramp) or for
fast switching to the new value (trig). A trigpoint will set, whether the switching
will be done at the beginning, the middle or the end of the fade.
Example: A scan may move slowly from its old position to the middle of the
stage, the color is set to change quickly at 50%, means middle of the travel.
Encoder 1
Encoder 2 or 3
the PLAYBACK area right hand on the front panel offers 40 buttons for
memories, whereas the upper 30 buttons can be switched to 4 different pages
A to D. The right hand buttons with two LED´s are able to contain chasers. A
flashing LED in a page button shows the preselected page. The lower ten
memory buttons S1 to S10 stay untouched by the page buttons and should be
programmed to contain the mostly used memories.

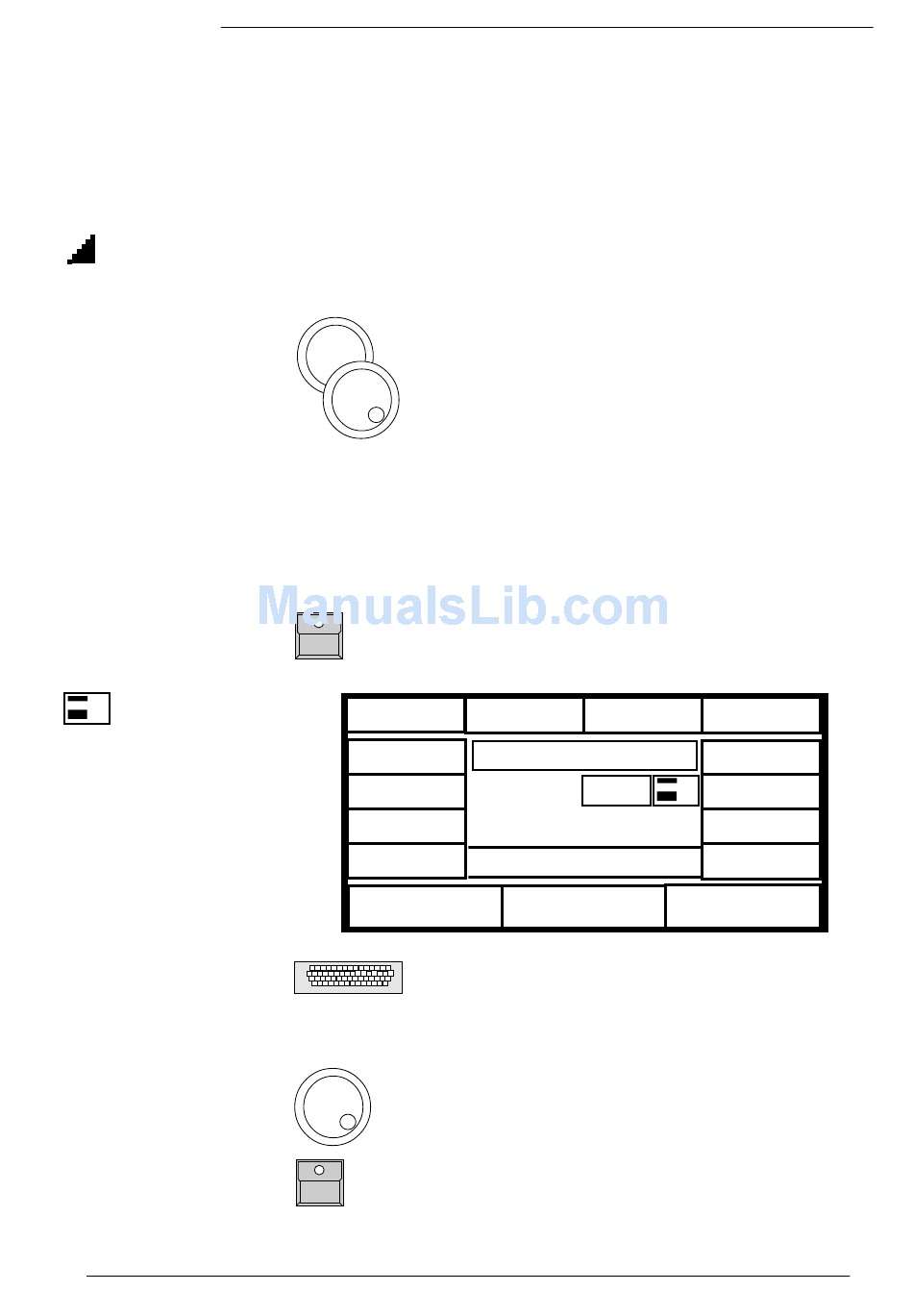

MEMORY button/ (PAGE A-D)
FADE 0.0 sec
KEYBOARD
ENTER or RETURN (Keyboard)
Encoder 1 and 3
STORE button
Selects a feature marked by an arrow.
Switches between Trig and fade.
Ramp (black triangle): Slow x-fade
No Ramp :Switching at the Trigpoint
Selects a place to store the picture as memory.
PROGRAM
MEMORY
A 2
MEMORY:
FREE: (84233)
NO NAME
Input of a name with up to 14 characters.
Stores the name.
Sets x-fade time and trigpoint.
Saves the actual stage as a memory.
TRIG 0 %
25 25 25 25
25
