2.4 Movement direction on DMX mode

The movement of the beams can be controlled via two of the encoder wheels,
an external tracker ball or computer mouse. To reach an ergonomic handling of
the trackerball it is possible to do a course adjustment of the movement.

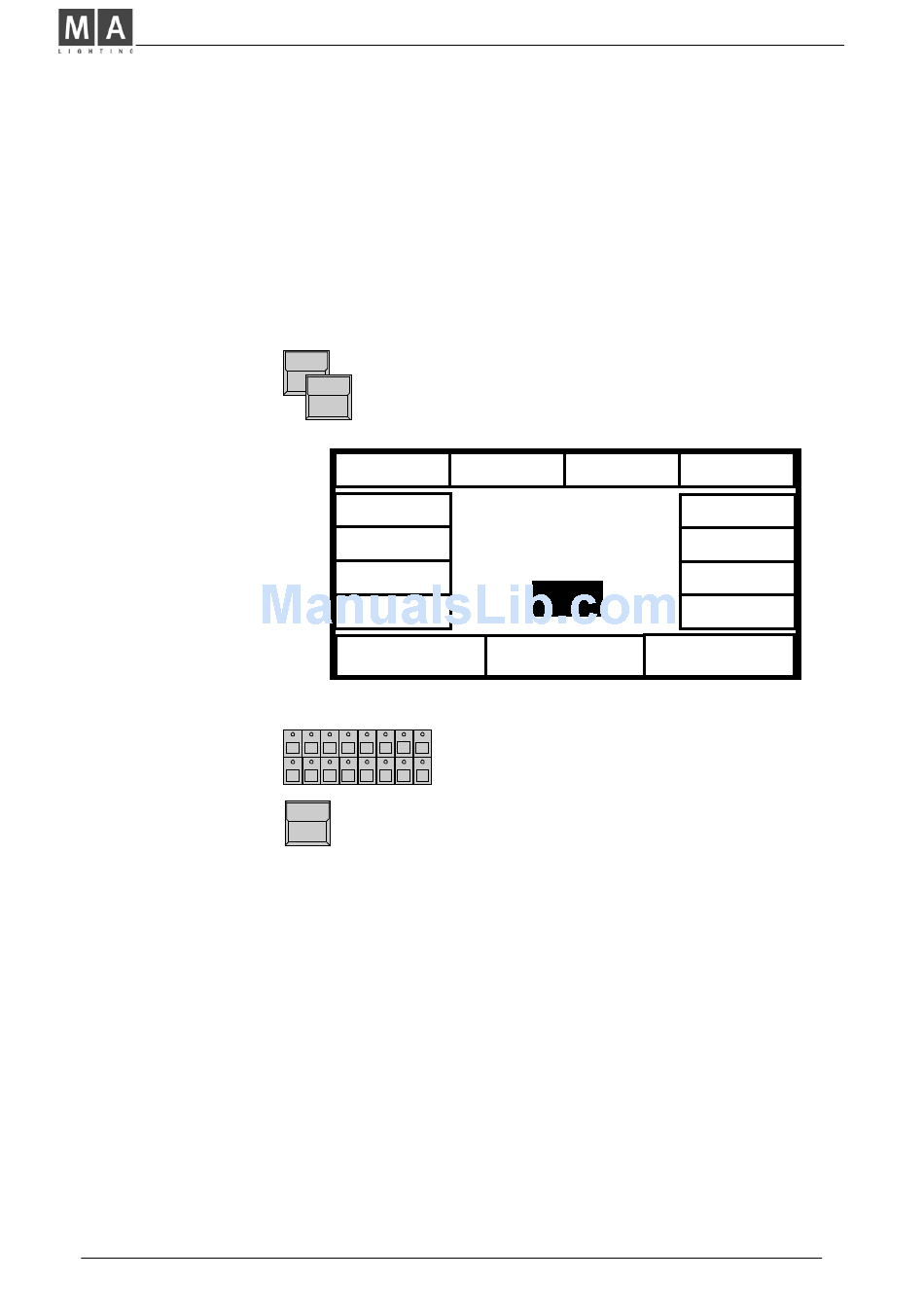

SETUP
DMX MOVEMENT
CHANGE
PAN<>TILT
INVERT
PAN
INVERT
TILT
PAN
CHANGE PAN<>TILT
INVERT PAN or INVERT TILT
Using the DMX mode, the values, adjusted on the Scancommanders display,
are send directly as DMX values to the lamps.
Beside this mode the Scancommander offers a stage adapted way of control-
ling pan and tilt. The difference between this two modes are listed in the
following chapter and in 3.3.1.
CENTER
PAN: 128 , TILT : 266
4
SCAN Selection
Selection of one single scan.
Exchanges the DMX signal of the pan and the tilt
channel.
Changes the direction of the pan or tilt channel.
T I
L T
