7. REMOTE

The MA SCANCOMMANDER features several remote input facilities. The
different incoming signals can be linked to the playback functions of the board.
REMOTE button in the Top Menu
MIDI
MIDI IN
ON/OFF
SMPTE
ON/OFF
TOUCHBOA.
ON/OFF
DMX
ON/OFF
X X X X X X X X X X X X X X X X X X X X X X X X
MIDI IN ON/OFF
SMPTE ON/OFF
TOUCHBOARD ON/OFF
DMX ON/OFF
NO EVENT
X X X X X X X X X X X X X X X X

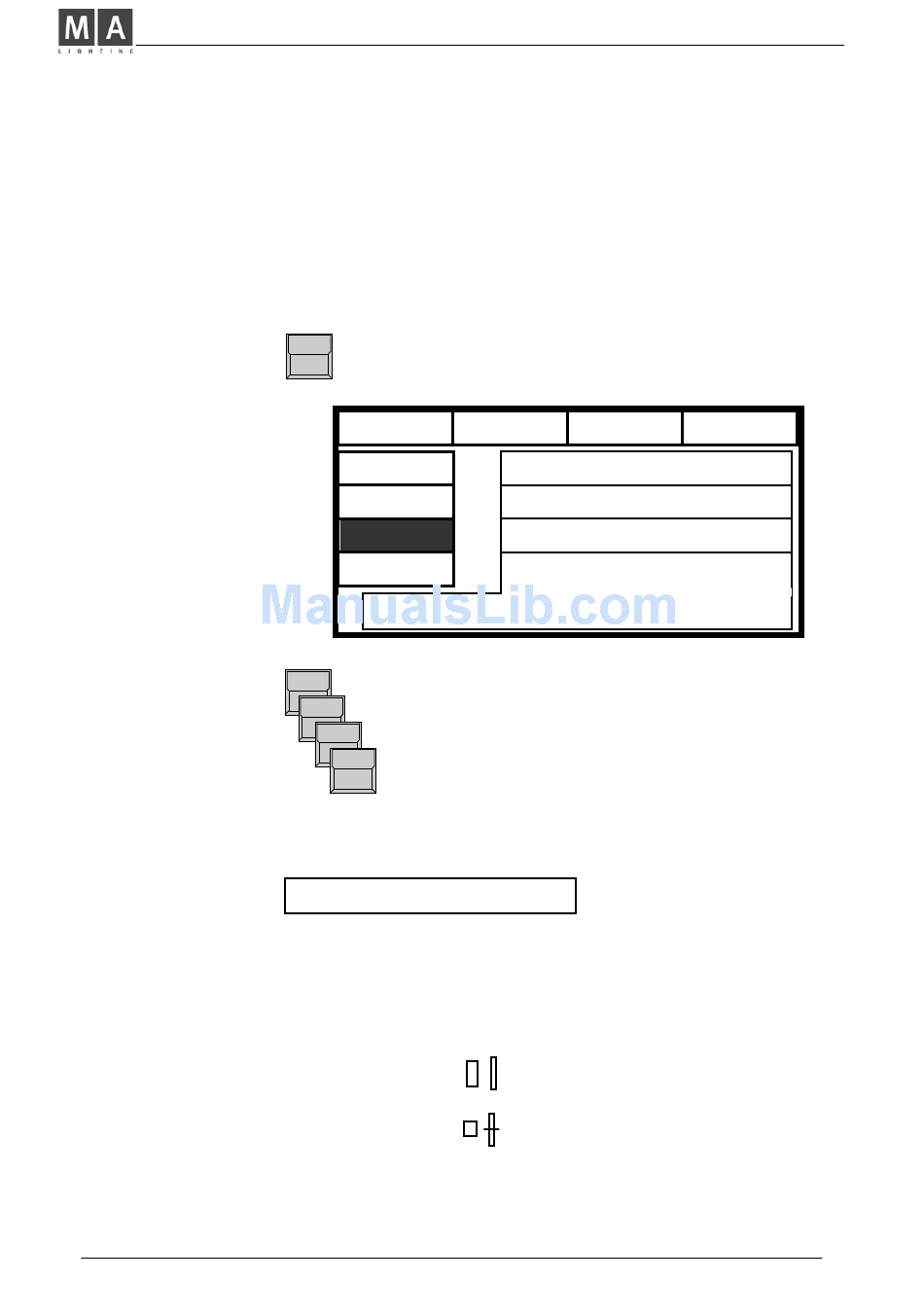

Across the top of the REMOTE Menu are four buttons which activate the
remote initialization menus.
The display switches to the REMOTE Top Menu.
TOUCHBOA.
DMX
MENU
MENU
NO EVENT
NO EVENT
NO EVENT
X X X X X X X X X X X X X X X X
NO EVENT
An inverted block indicates, that the appropriate input
is activated. MIDI and SMPTE inputs can not be
active at the same time.
With MIDI the last incoming signals will be listed in
the display. With DMX and Touchboard inputs, small
icons show the actual status of the input channels.
X Input Channel is not connected to any func-
tion.
Input channel controls fader. Inverted icon
shows the value of the incoming signal.
Input channel controls button. Icon inverted
indicates button active.
SMPTE
MENU
