3.2.2 Programming of presets

Using the Encoder Wheels, all functions are controlled in 256 steps. But for
most of the functions there are special values, which are used all the time, like
the single colours on the color channel. These values can be stored together
with a label as PRESETS and can be recalled by the push of a button later on.
On direct access the 12 display sections will show these names. For most of
the scans these PRESETS are stored internally and are downloaded when
doing the lamptype setup. If these PRESETS are not available for the actual
registered lamp type, or they are not right and have to be adjusted, you have to
swop to the PRESET ADJUST menu.

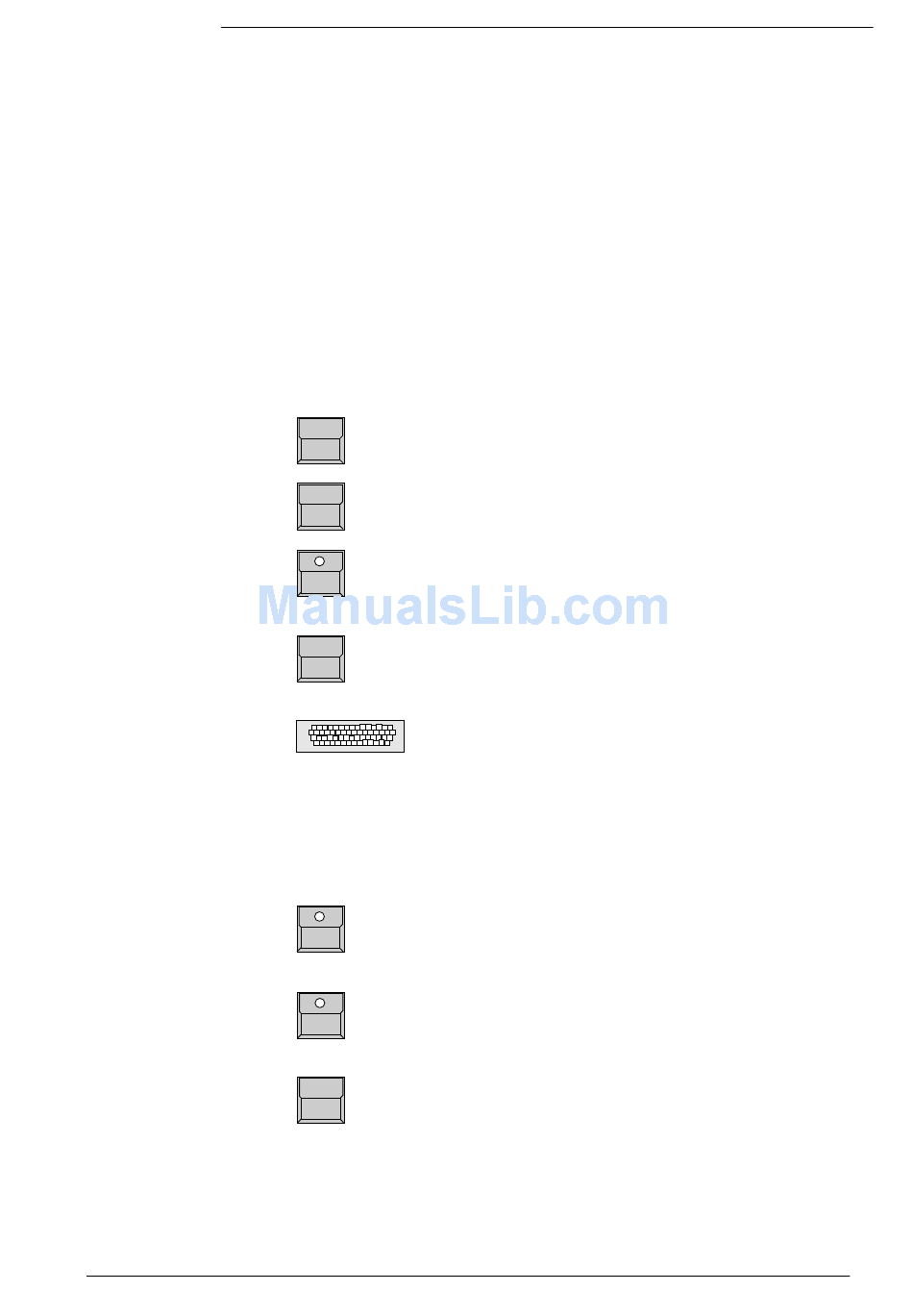

QUIT button
PRESET
Feature button
Display button of the desired square
Adjustment of values via SCAN SELECTION and ENCODER 1 to 3.
1. x STORE button
2. x STORE button
Preset button pressed for more than 1/2 sec
After the second STORE the next PRESET can be programmed or the desk
will return to the TOP MENU by using the QUIT button.
The display switches to the TOP MENU.
The display shows the actual output values and the
headline "Adjust Preset".
Presets can be programmed for all functions. Also for
PAN/TILT, positions can be prepared as presets.
Short push (<1/2 sec.) of a button inverts the square.
KEYBOARD
Input of a name with up to 6 characters.
ENTER or RETURN (KEYBOARD)
Stores the name for the preset.
All Scans, where the function is available, are se-
lected
For all selected scans the actual output values are
stored as PRESET.
The selected PRESET will be recalled and can be
modified and stored.
