MUTOH ValueJet Service Manual page 228

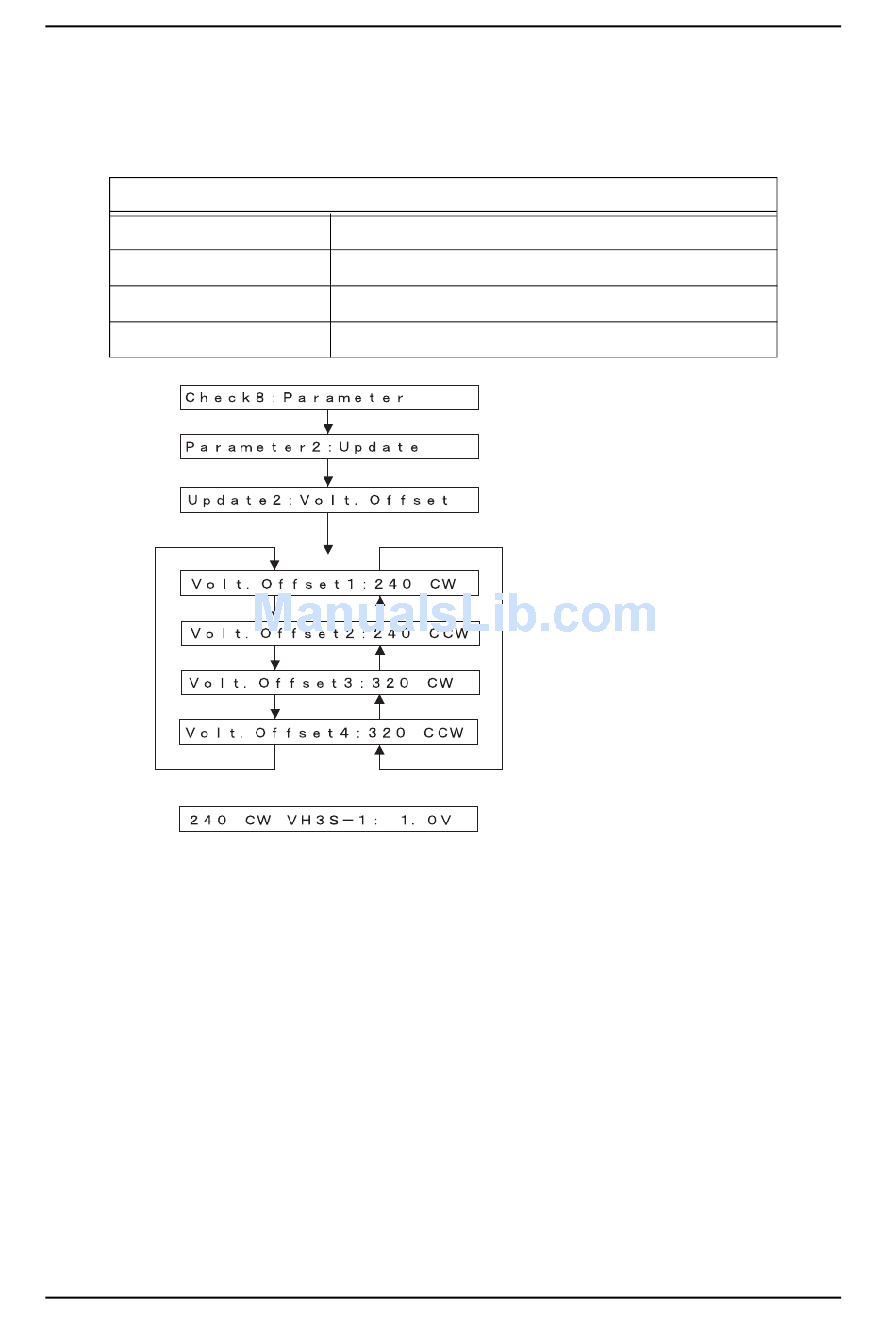

(2) Voltage Offset
This menu updates the voltage offset parameter (VSD3 small dot).
Items
240 CW
240 CCW
320 CW
320 CCW
[>] keys
[>] key
[>] key
[>] key
AP-74109 Rev 1.1
Table 5-14 Voltage offset item
Adjusts the VSD 3-S at 240 cps. CW printing.
Adjusts the VSD 3-S at 240 cps. CCW printing.
Adjusts the VSD 3-S at 320 cps. CW printing.
Adjusts the VSD 3-S at 320 cps. CCW printing.
[<] key
[<] key
[<] key
[<] key
When it is 240 CW
5-58
ValueJet 1304 Service manual
Contents
Press [Setting/Value+] or [Setting/Value-] key
to change unit to pulse
Volt range: -5V to 5V (0.1V)
VH3L-1 to VH3L-4
VH3S-1 to VH3S-4
