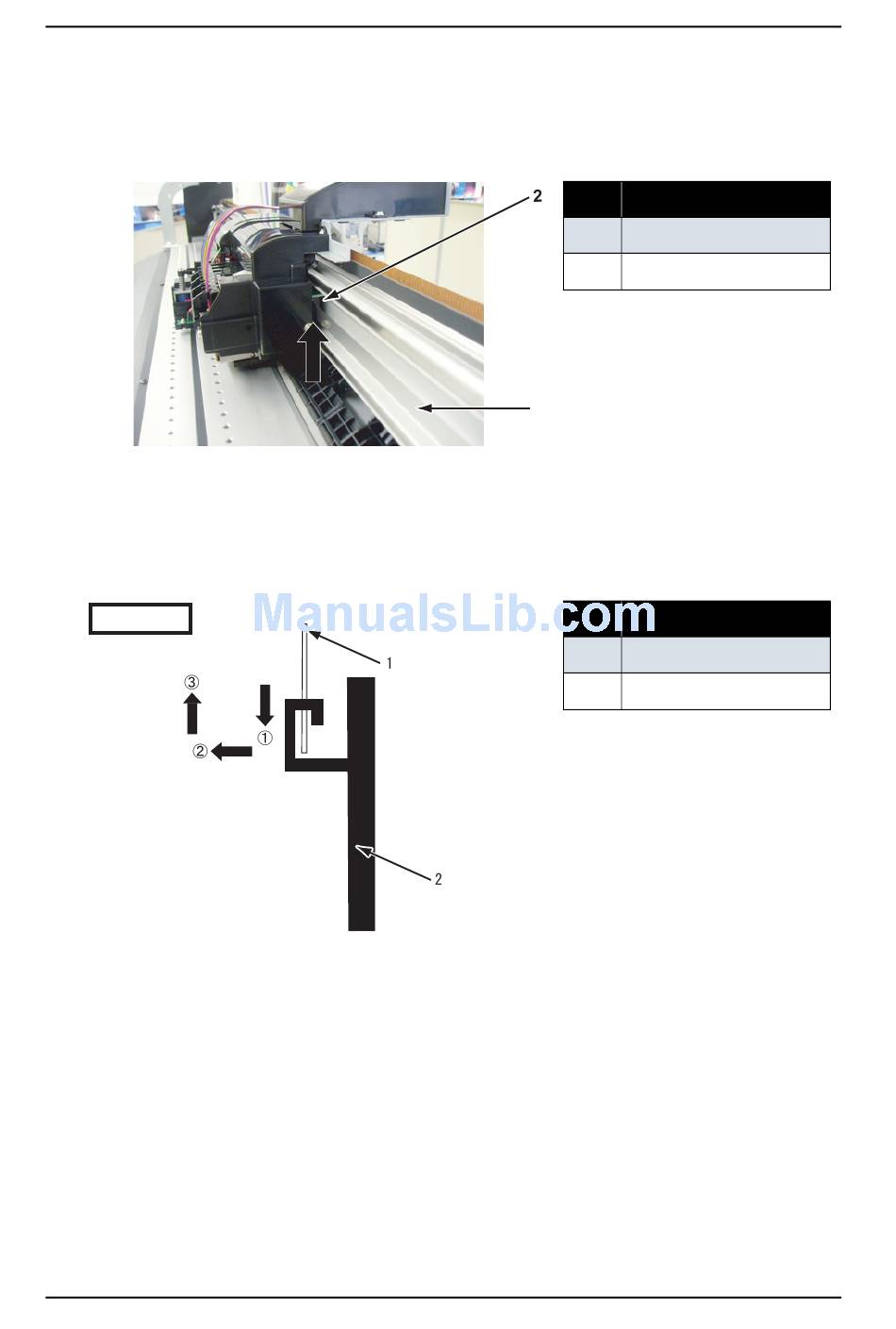

6. Insert the T fence into the CR encoder assembly.
7. Install the T fence to the fence guide.
side view
Slide the T fence in the order
of arrows shown above to install.
8. Install the T fence spring to the T fence spring hook on the L frame side.
9. Perform adjustments by following the instructions in
AP-74109 Rev 1.1
表 4-65
No.
1
表 4-66
No.
"7.2 Adjustment Item"
4-58
ValueJet 1304 Service manual
Part name
1 T fence
2
CR encoder assembly
Part name
1 T fence
2
Fence guide
p.7-3.
