Panel Mounting

1. Select a place on the panel where you will mount the Panel PC.
2. Cut out a shape on the panel that corresponds to the Panel PC's rear
dimensions.
The thickness of the panel (e.g. steel board, plank, acrylic board, wall,
etc.) where you will mount the Panel PC must not exceed 7mm. If the
distance between the front bezel and panel mount hole is too wide, it
will not fit the panel mount kit.

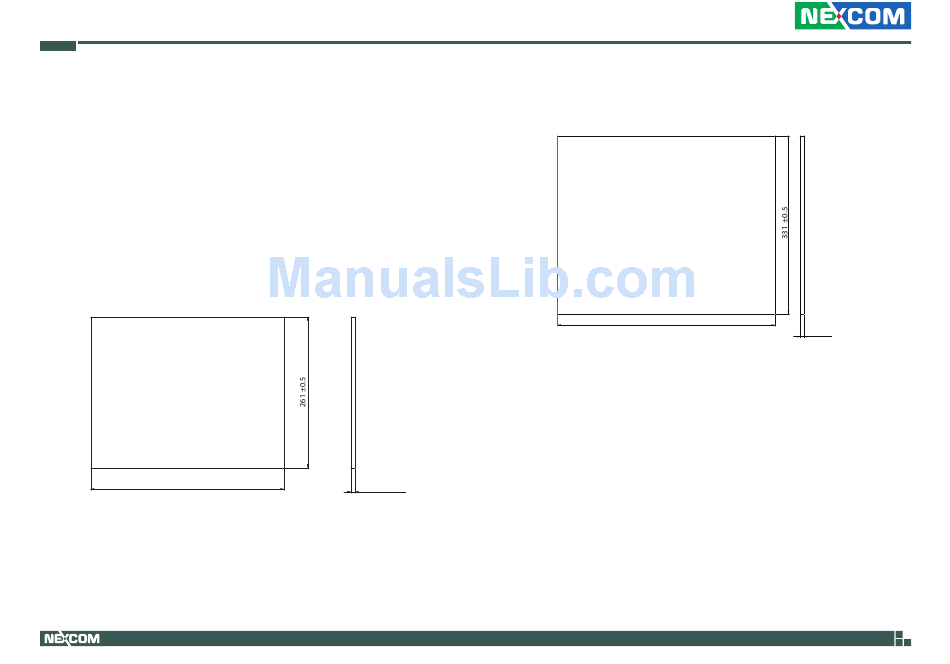

OPPC 1540HT-J1900
334 ±0.5
CUT OUT SIZE T=7mm(MAX)
Copyright © 2015 NEXCOM International Co., Ltd. All Rights Reserved.
3. Slide the Panel PC through the hole until it is properly fitted against the
panel.
7mm max.
62
OPPC 1940HT-J1900
403 ±0.5
CUT OUT SIZE T=7mm(MAX)
OPPC 1540HT-J1900/1940HT-J1900 User Manual
7mm max.
