Cfast Card Slot; Reset Button - Nexcom OPPC 1240T Series User Manual

Chapter 2: Jumpers and Connectors

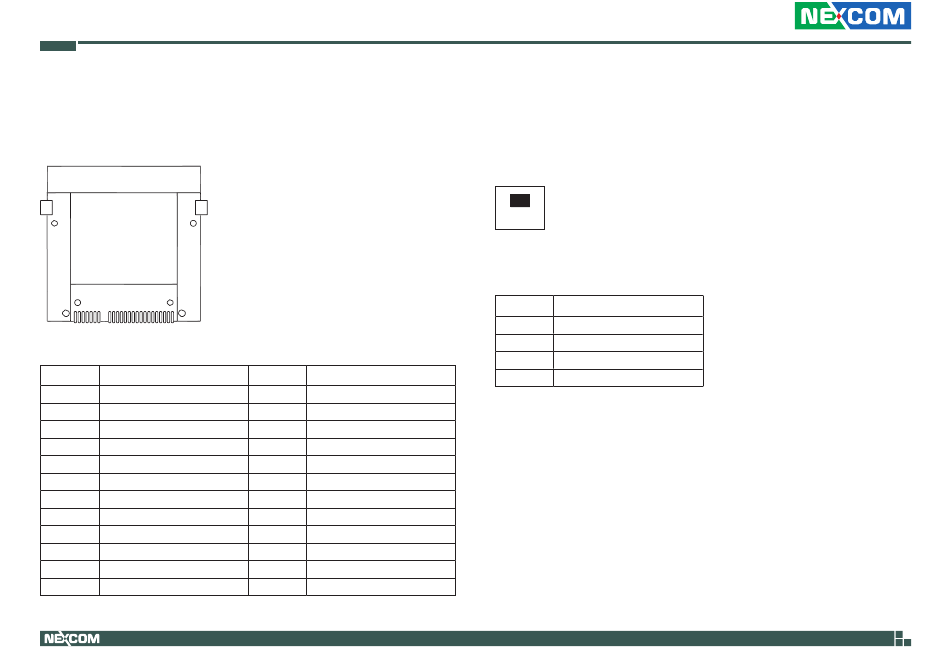

CFast Card Slot

Connector type: Standard CFast connector
Connector location: J14
S1 S7 PC1 PC17
Pin Definition
S1 GND
S3 SATA_TXN2
S5 SATA_RXN2
S7 GND
PC2 GND
PC4 NC
PC6 NC
PC8 CFAST_LED1_C
PC10 NC
PC12 NC
PC14 VCC3
PC16 GND
Copyright © 2015 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
S2 SATA_TXP2
S4 GND
S6 SATA_RXP2
PC1 CFAST_CDI
PC3 NC
PC5 NC
PC7 GND
PC9 CFAST_LED2_C
PC11 NC
PC13 VCC3
PC15 GND
PC17 CFAST_CDO

Reset Button

Connector location: SW3
Pin Definition
1 Reset
2 Reset
3 GND
4 GND
33
OPPC 1240T/1540T/1740T/1940T Series User Manual
