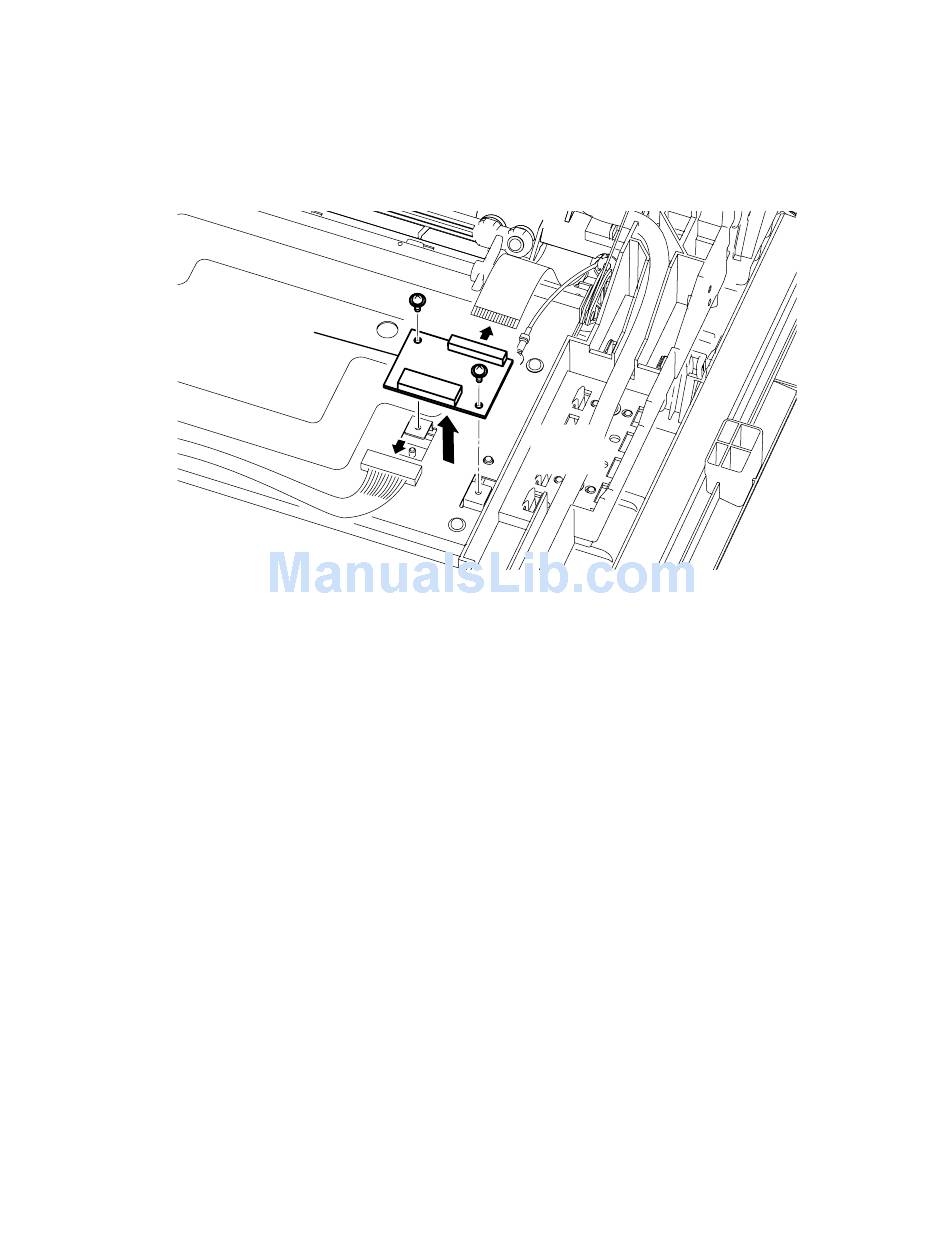

PCB CONNECT C

1) Remove the Chassis FBS.

2) Remove the Tray exit paper.

3) Disconnect the connector and the Film harness.

4) Remove two PCB CONNECT C mounting screws, and then remove the PCB CONNECT C.

PCB CONNECT C

( See page 5-32)

H H H

H H H

( See page 5-12)

H H H

H H H

5-23

5-23
