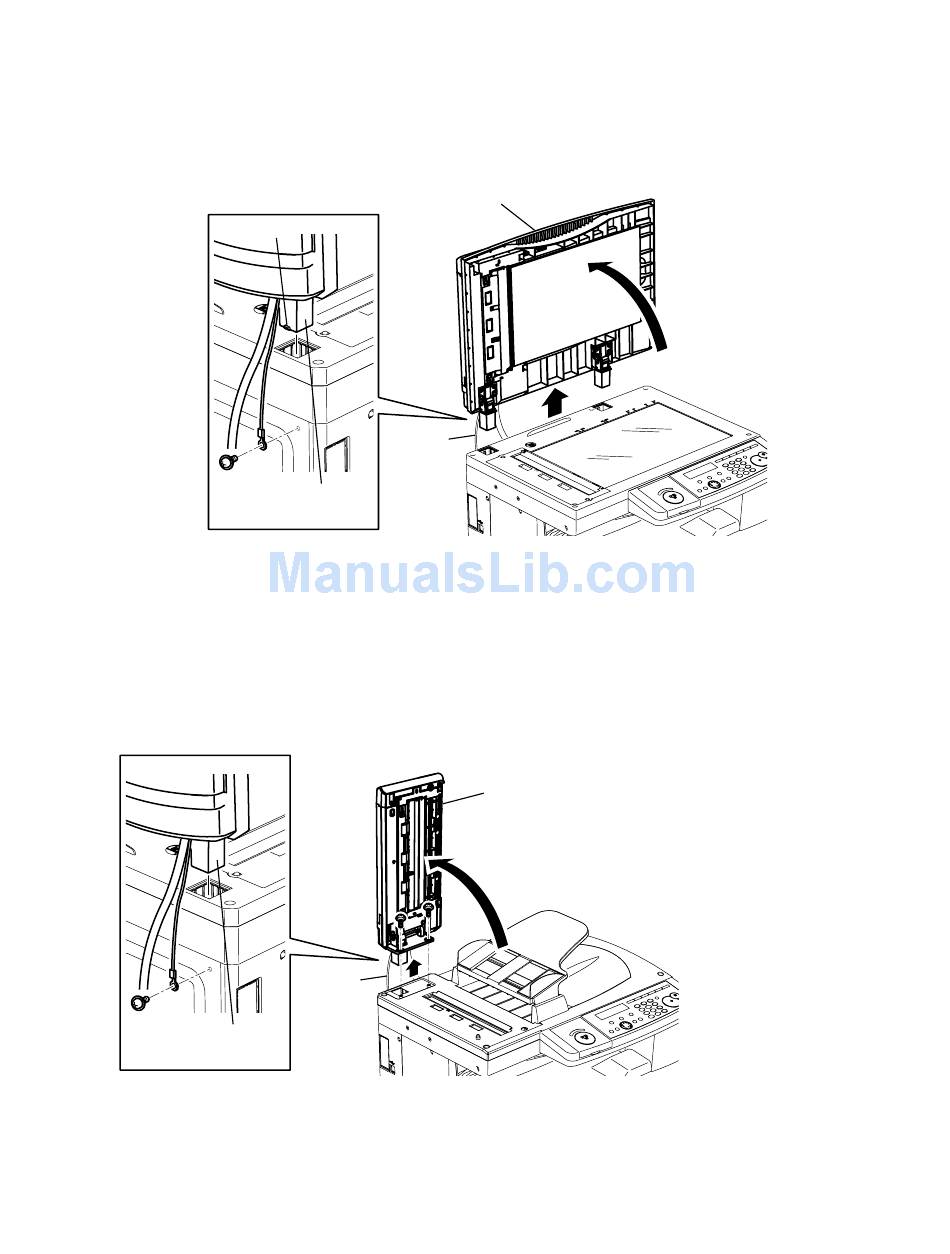

COVER PLATEN (MFX-1330 only)

1) Remove the Cover connect. (See page 5-6)
2) Open the Cover platen.
3) Remove the Ground wire, and then raise the Cover platen.
4) Release the locking tab, and then remove the COVER PLATEN.

COVER ADF BASE (F-300 only)

1) Remove the Cover connect.
2) Open the Cover ADF base.
3) Remove the Ground wire, and then remove two Hinge mounting screws.
4) Remove the COVER ADF BASE.
Hinge
Tab
Ground
wire
Platen hinge
( See page 5-6)
H H
Ground
wire
Cover platen
Cover ADF base
