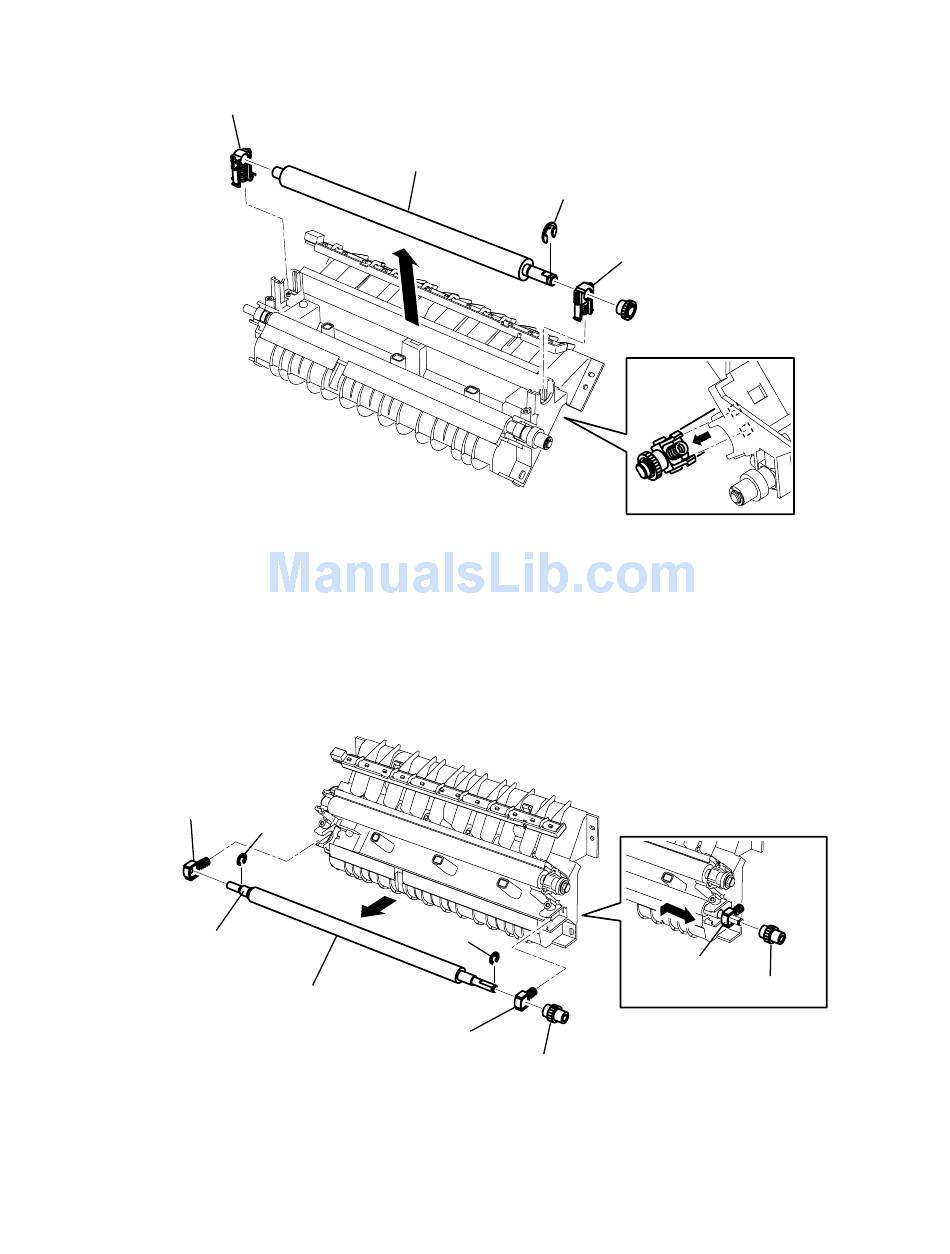

6) Remove the two Bracket transfer tabs from the back of the Guide inner.
7) Remove the ROLLER TRANSFER.
Bracket transfer
ROLLER REGISTER
1) Open the Cover jam access.
2) Remove the Knob lock JAC. (See page 5-47)
3) Remove the Guide inner. (See page 5-47)
4) Remove two E-rings, and then remove the Gear 16H-0.8.
5) Hold the Bearing press's, and slide and remove the ROLLER REGISTER.
Bearing press
ANB03
Bearing
Roller transfer
4)
ANB03
4)
Roller register
Bearing press
ANA05
Bracket transfer
Bearing press
Gear 16H-0.8
5-48 5-48
Gear 16H-0.8
