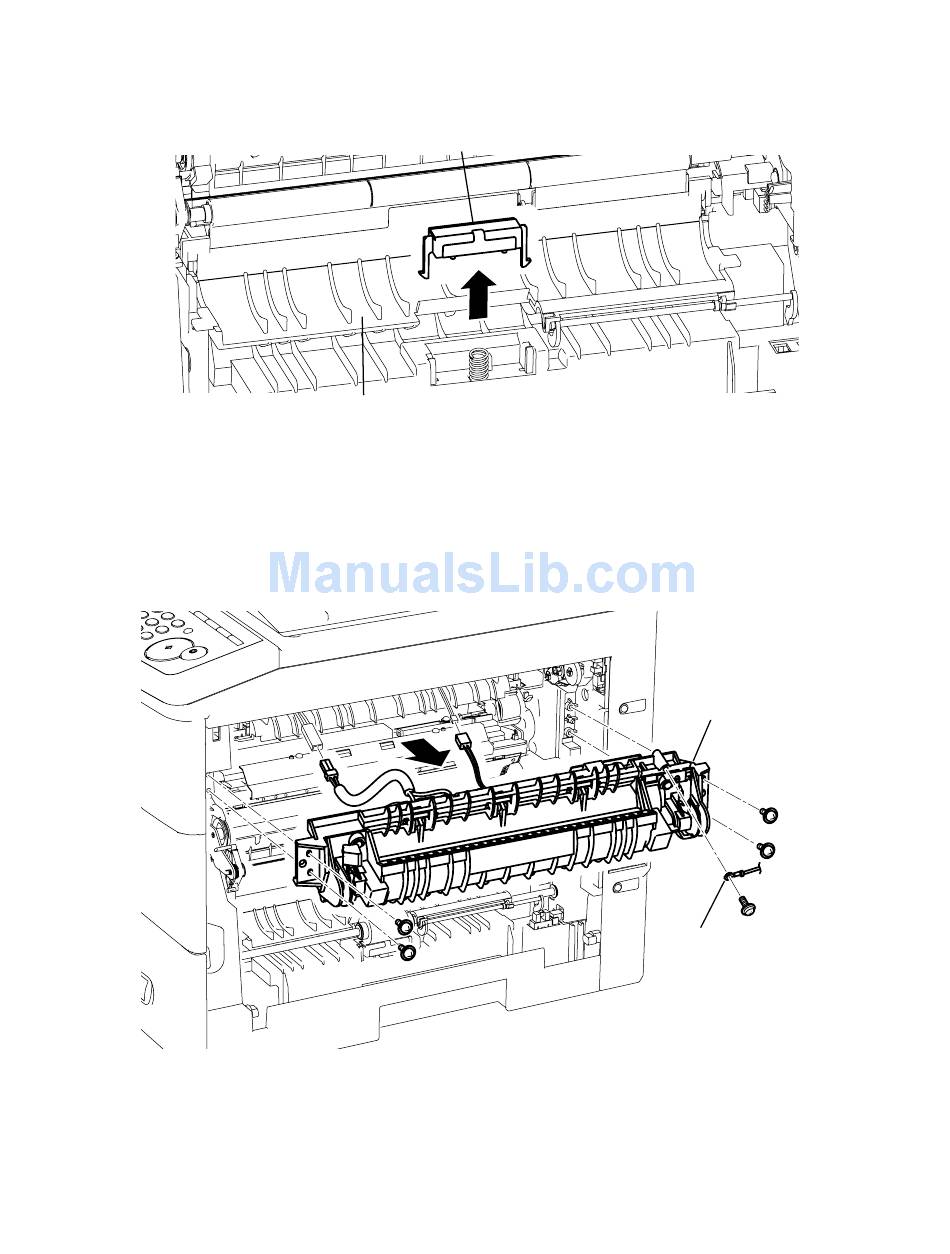

6) Remove the PAD PRESSURE MP.
NOTE: When reattaching the Pad pressure MP, align the notch with the counterpart on the body.
PRINTER FUSER
1) Open the Cover jam access.
2) Remove the Ground wire and four Printer fuser mounting screws, and then remove the harness.
3) Remove the PRINTER FUSER.
Pad pressure MP
Guide paper MPDUP
5-52
5-52
Printer fuser
Ground wire
