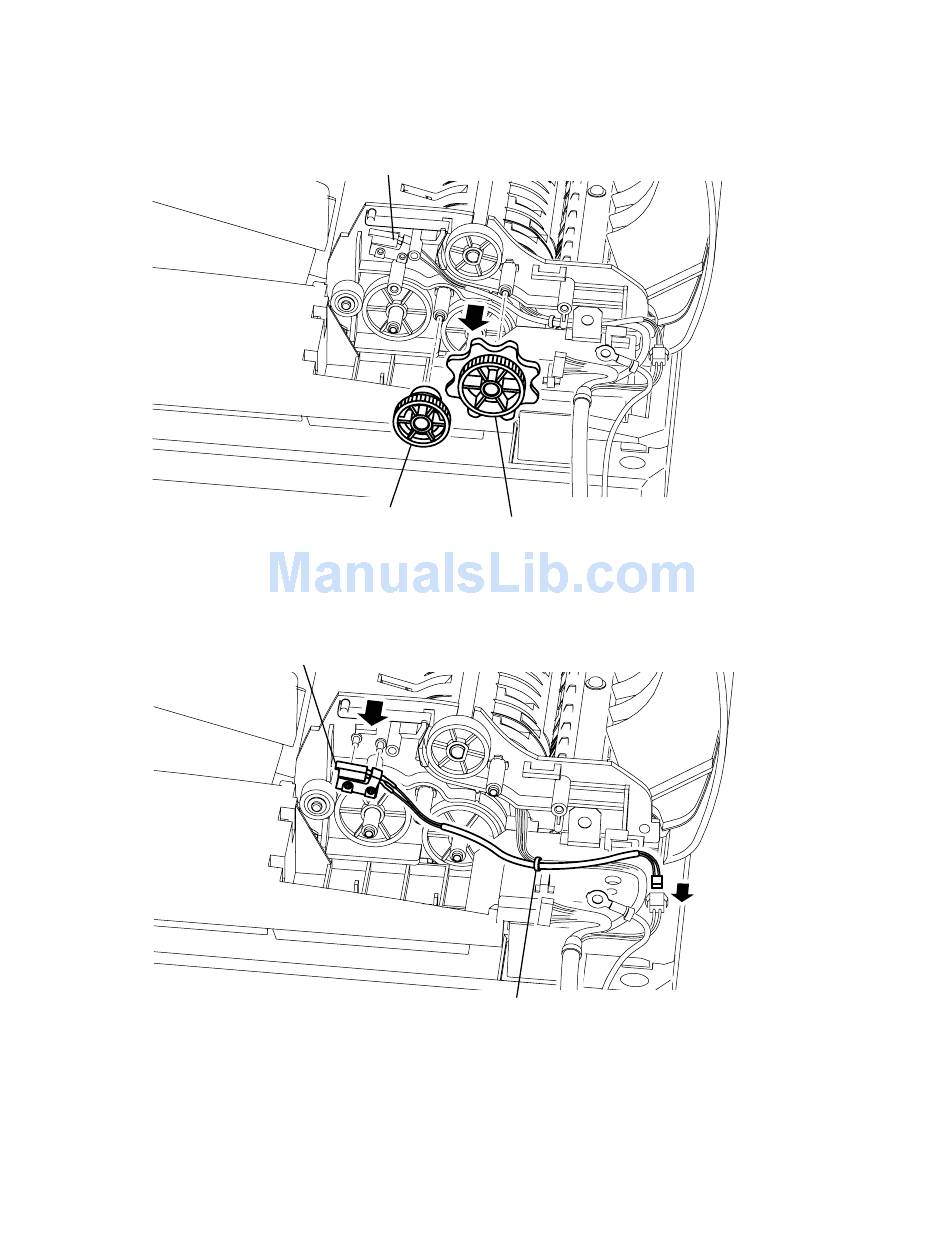

Sensor TXIL
1) Remove the cover TX side B.
2) Remove the bracket motor ADF.
3) Remove the Gear 18/55 and the Gear 24/47.
4) Cut the Cable tie.
5) Disconnect the connector and remove the SENSOR TXIL.
( See page 5-8, 5-9)
H H H H H H
( See page 5-33)
H H H H H H H H
TXIL
Gear 24/47
TXIL
H H H H H H
H H H H H H H H
Gear 18/55
Cable tie
5-34
5-34
