COVER TX SIDE B (F-300)

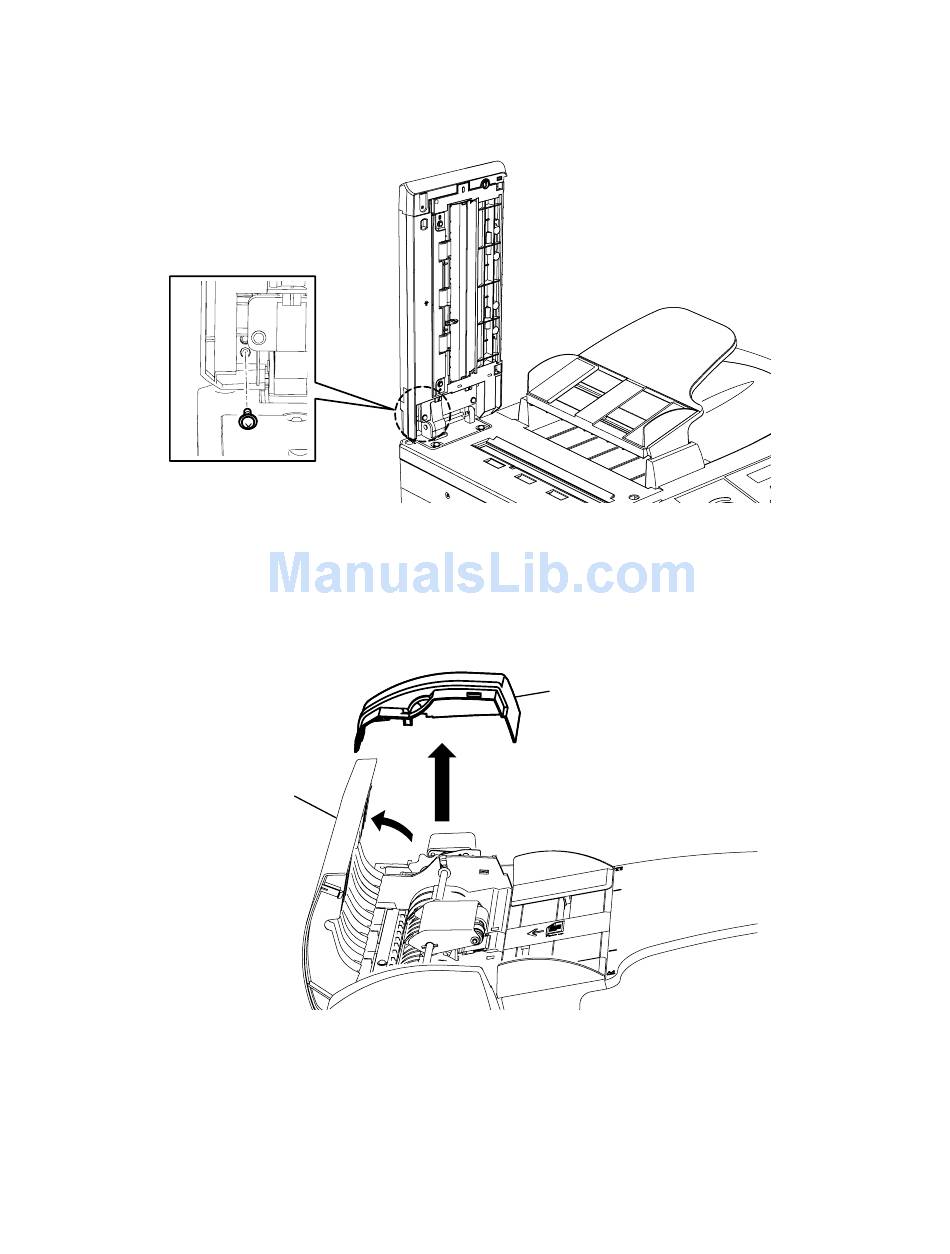

1) Open the Cover ADF base.
2) Remove the Cover TX side B mounting screw.
3) Close the Cover ADF base.
4) Open the Guide outer.
5) Release two locking tabs, and then remove the COVER TX SIDE B.
Guide outer
b(pdf)_1.eps
Cover TX side B
f(ppf)_2.eps
5-9
5-9
cover tx side
cover tx side
