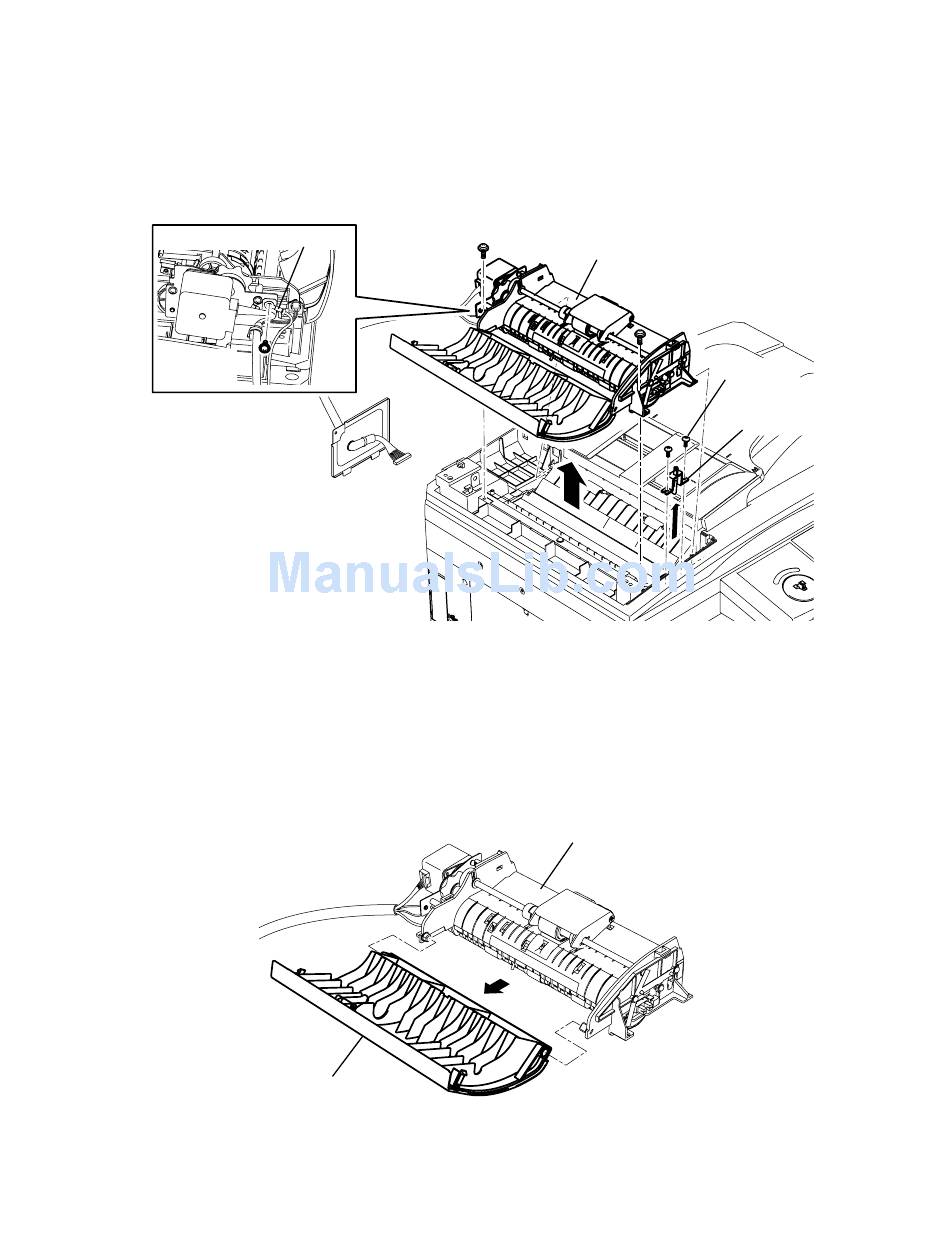

GUIDE INNER A

1) Remove the Cover TX side F.
2) Remove the Cover TX side B.
3) Remove the Ground wire as shown below.
4) Remove two APS bracket mounting screw and then remove the APS bracket.
5) Remove two Guide inner A mounting screw and the tab, and then remove the GUIDE INNER A.
Ground wire

GUIDE OUTER

1) Remove the Cover TX side F.
2) Remove the Cover TX side B.
3) Remove the Guide inner A.
4) Remove the GUIDE OUTER.
( See page 5-10, 5-11)
H H H H H H H H
( See page 5-8, 5-9)
H H H H H H H H
( See page 5-10, 5-11)
H H H H H H H H
( See page 5-85-7, 5-9)
H H H H H H H H
Guide outer
H H H H H H H H
H H H H H H H H
Guide inner A
H H H H H H H H
H H H H H H H H
Guide inner A
5-35
5-35
APS bracket
