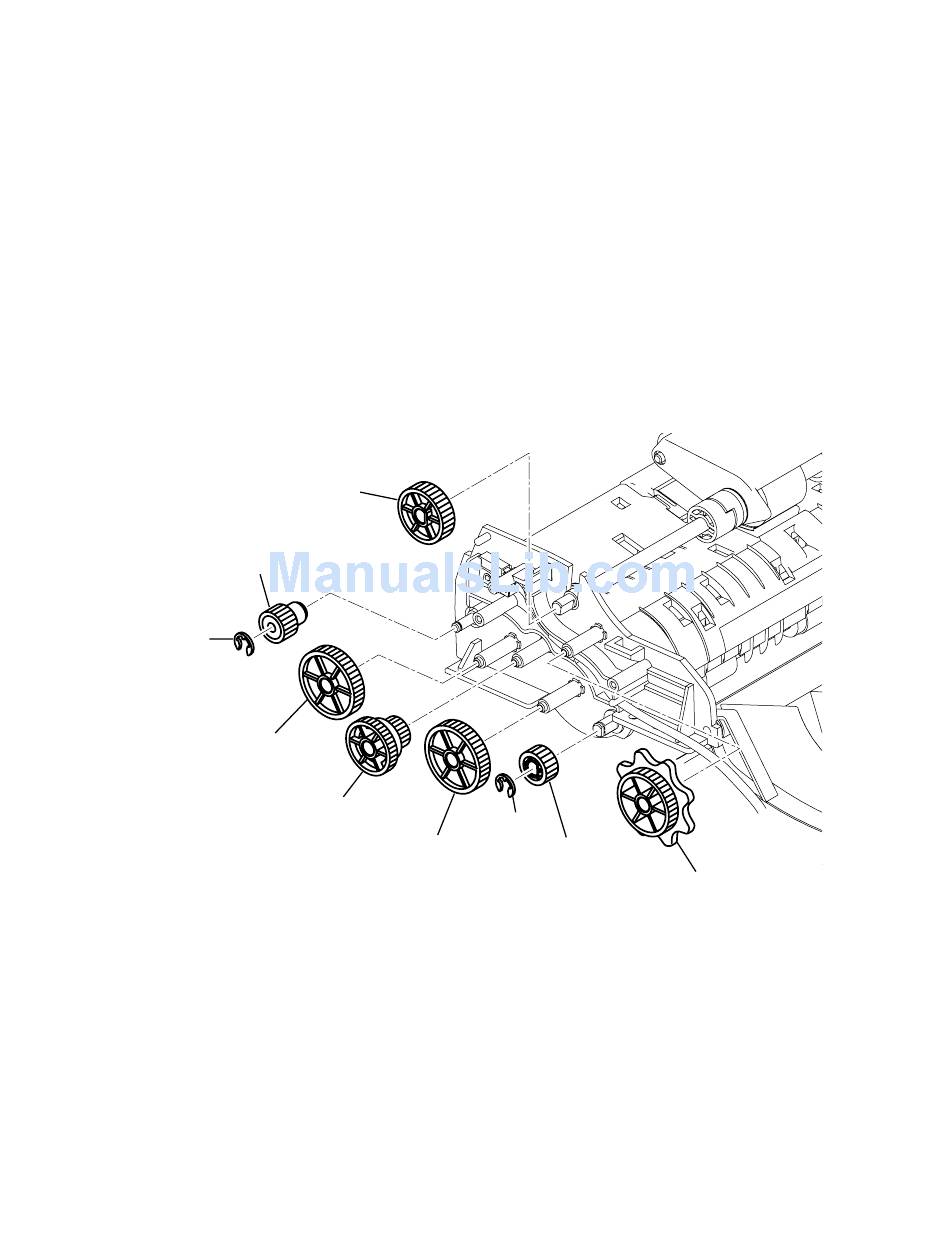

ADF DRIVE GEARS
1) Remove the Cover TX side F.
2) Remove the Cover TX side B.
3) Remove the Bracket motor ADF.
4) Remove the APS bracket.
5) Remove the Guide inner A.
6) [1] Remove the Gear 24/47.
7)
[2] Remove the Gear 18/55.
8)
[3] Remove the Gear 40 0.6B.
9)
[4] Remove two Gear 59 0.5.
10) Remove one E-ring, and then remove [5] the Gear 27 0.5.
11) Remove one E-ring, and then remove [6] the Gear 27 0.5 ONEWAY.
[3] Gear 40 0.6B
[6] Gear 27 0.5 ONEWAY
ANA03
[4] Gear 59 0.5
( See page 5-10, 5-11)
H H H H H H H H H H
( See page 5-8, 5-9)
H H H H H H H H H
( See page 5-33)
H H H H H H H H H
( See page 5-38)
H H H H H H H H H H
H H H H H H H H H
H
( See page 5-35)
H H H H H H H H H H
H H H H H H H H H
H
[1] Gear 24/47
[4] Gear 59 0.5
H H H H H H H H H H
H H H H H H H H H
H H H H H H H H H
ANA04
[5] Gear 27 0.5
[2] Gear 18/55
5-37
5-37
