Muratec MFX-1330 Field Engineering Manual page 223

ADF MOTOR
1) Remove the Cover TX side B.
2) Cut the Cable tie.
3) Disconnect the connector.
4) Remove the three Bracket motor ADF mounting screw, and then remove the Bracket motor ADF.
5) Remove two ADF motor mounting screw, and then remove the ADF MOTOR.
( See page 5-8, 5-9)
H H H H H H H H H H H H

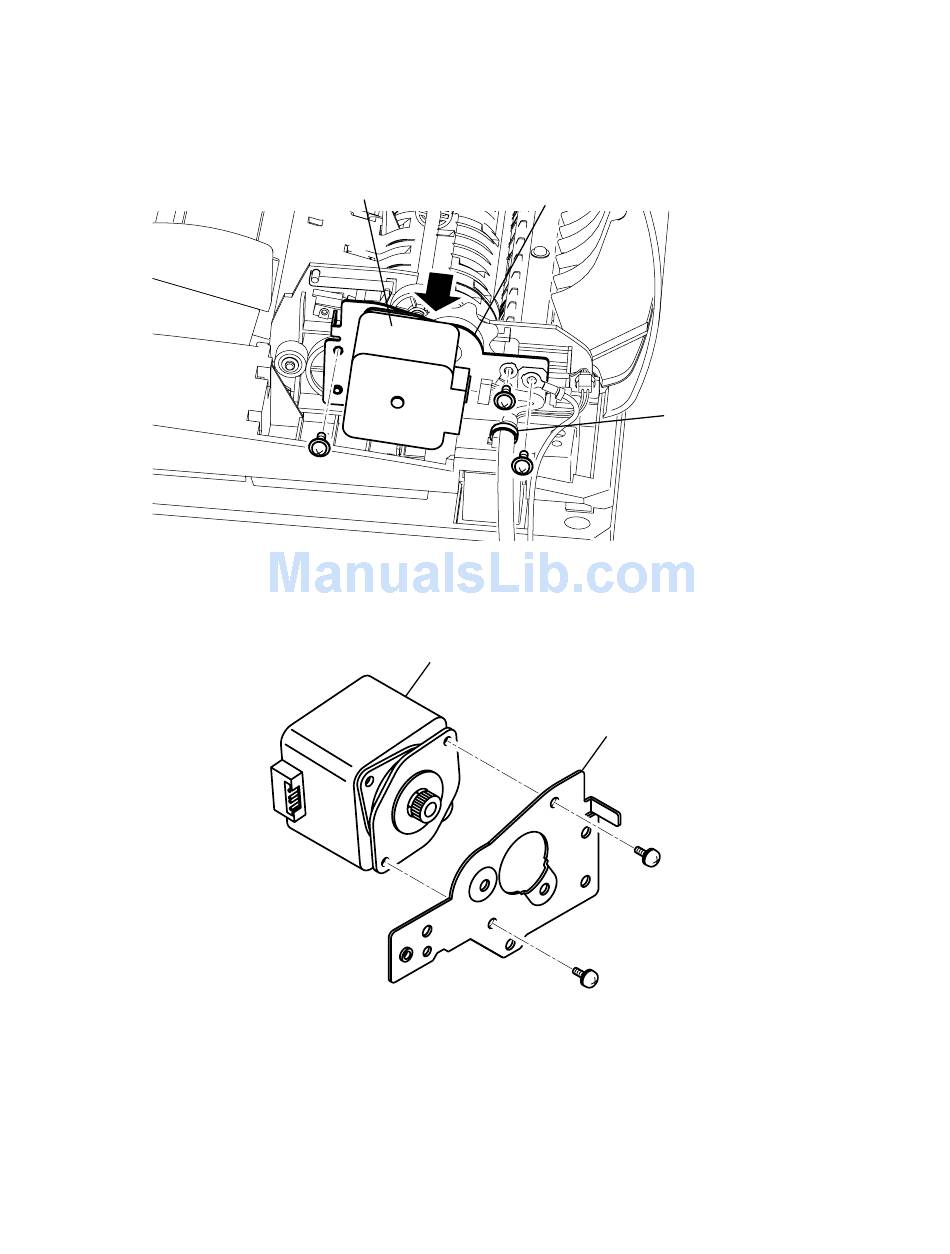

ADF motor
Bracket motor ADF
ADF motor
5-33 5-33
Cable tie
Bracket motor ADF
