ADF PERMIT SENSOR (APS)

1) Remove the Cover TX side F.
2) Remove the Cover TX side B.
3) Remove the Bracket motor ADF mounting screw.

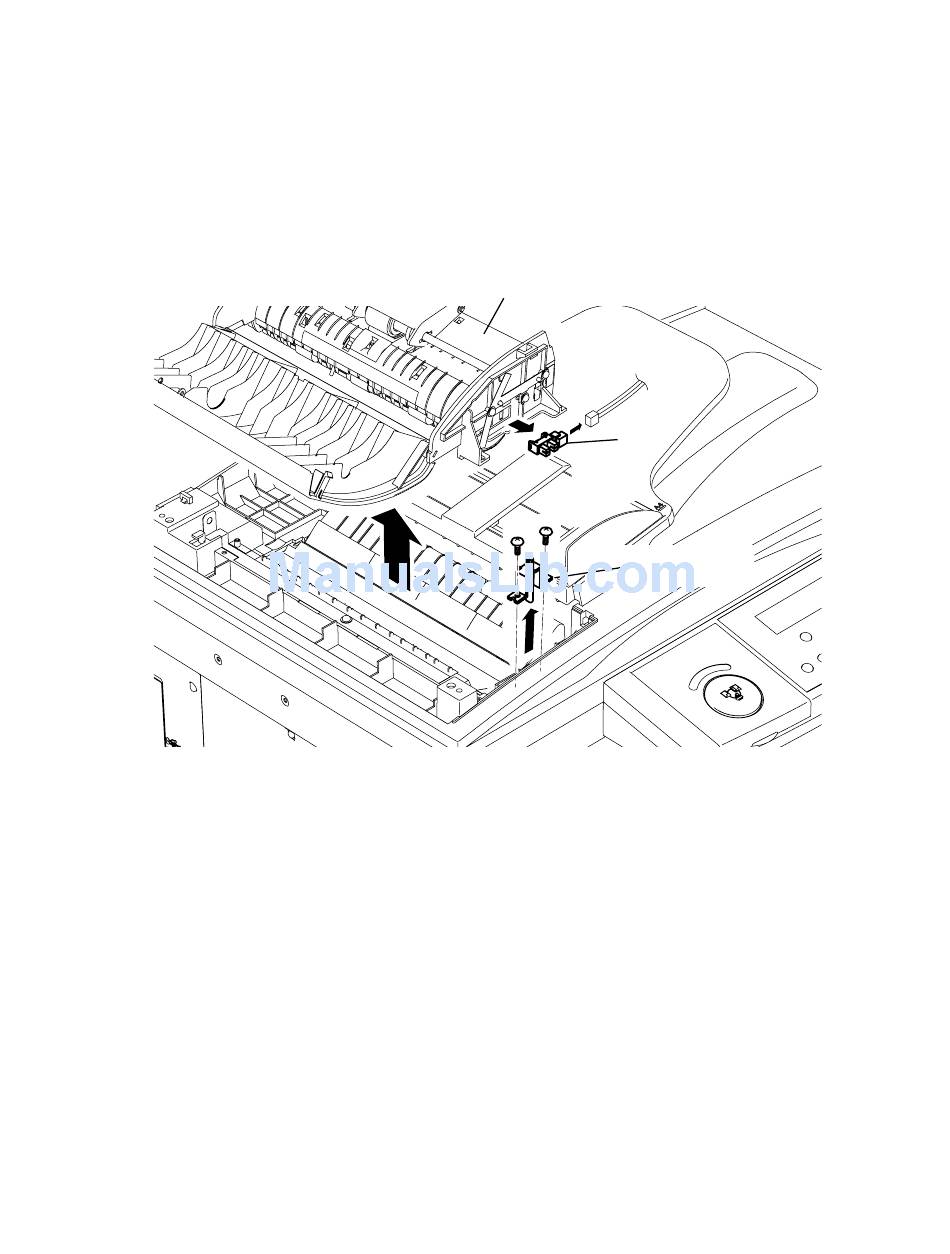

4) Remove two APS bracket mounting screws, and then remove the APS bracket.
5) Remove the Guide inner A.
6) Disconnect the connector on the APS and remove the SENSOR (APS).
( See pages 5-10, 5-11)
H H H H H H H H H H H H H H H H H H H H H H
( See pages 5-8, 5-9)
H H H H H H H H H H H H H H H H H H H H H H
( See page 5-33)
H H H H H H H H H H H
( See page 5-35)
H H H H H H H H H H H H H H H H H H H H H H H H
Guide inner A
5-38 5-38
H H H H H H H H H H H
APS
APS bracket
