PLATE FRAME B (2nd CST)
1) Separate the Chassis cassette 2nd from the Main frame.
2) Pull out the Cassette 2nd.
3) Remove the Roller feed 2ND. (See page 5-59)
4) Disconnect the connector of Solenoid.

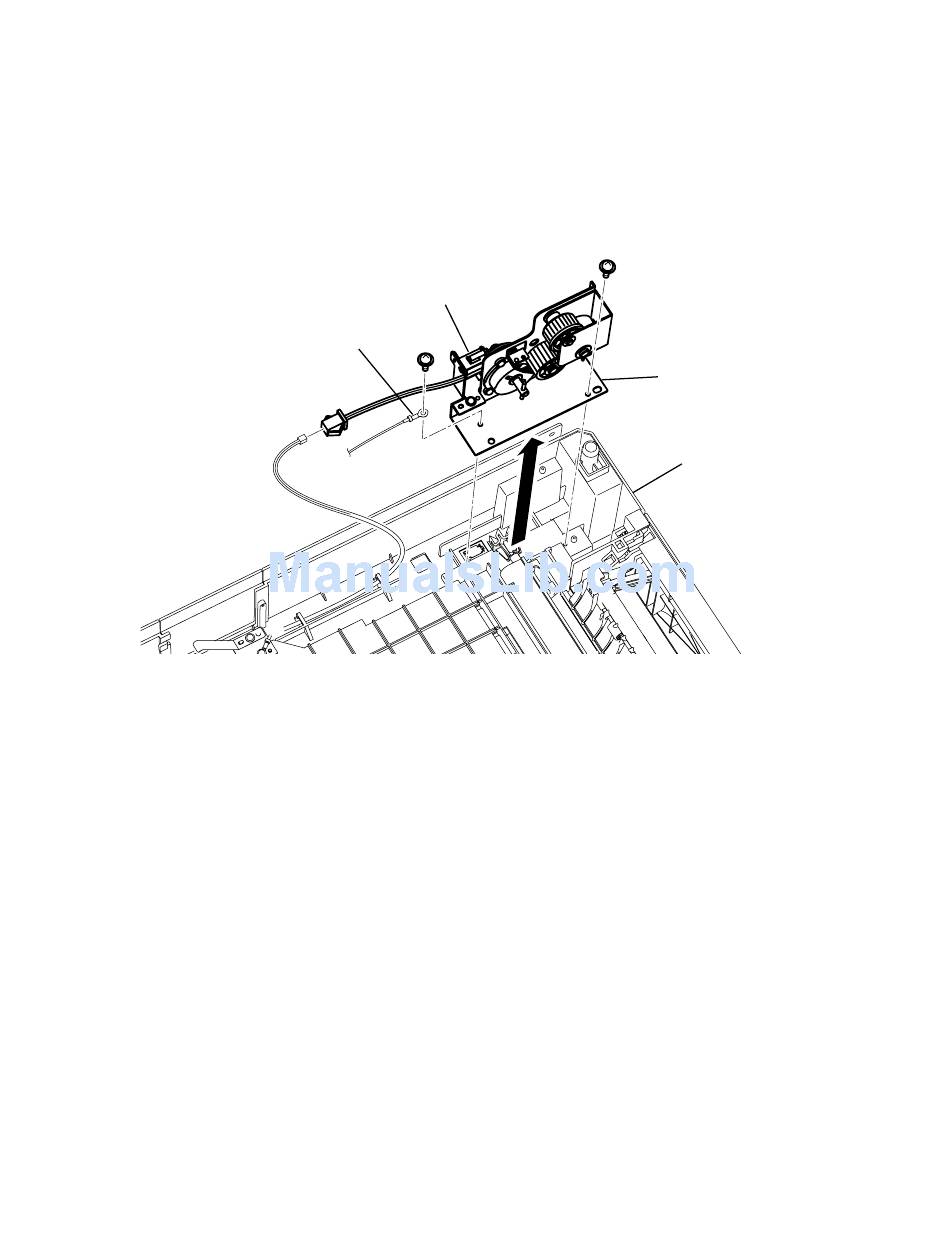

5) Remove two Plate frame B mounting screws, and then remove the PLATE FRAME B.
Solenoid
Ground wire
5-60
5-60
Plate frame B
Chassis 2nd
