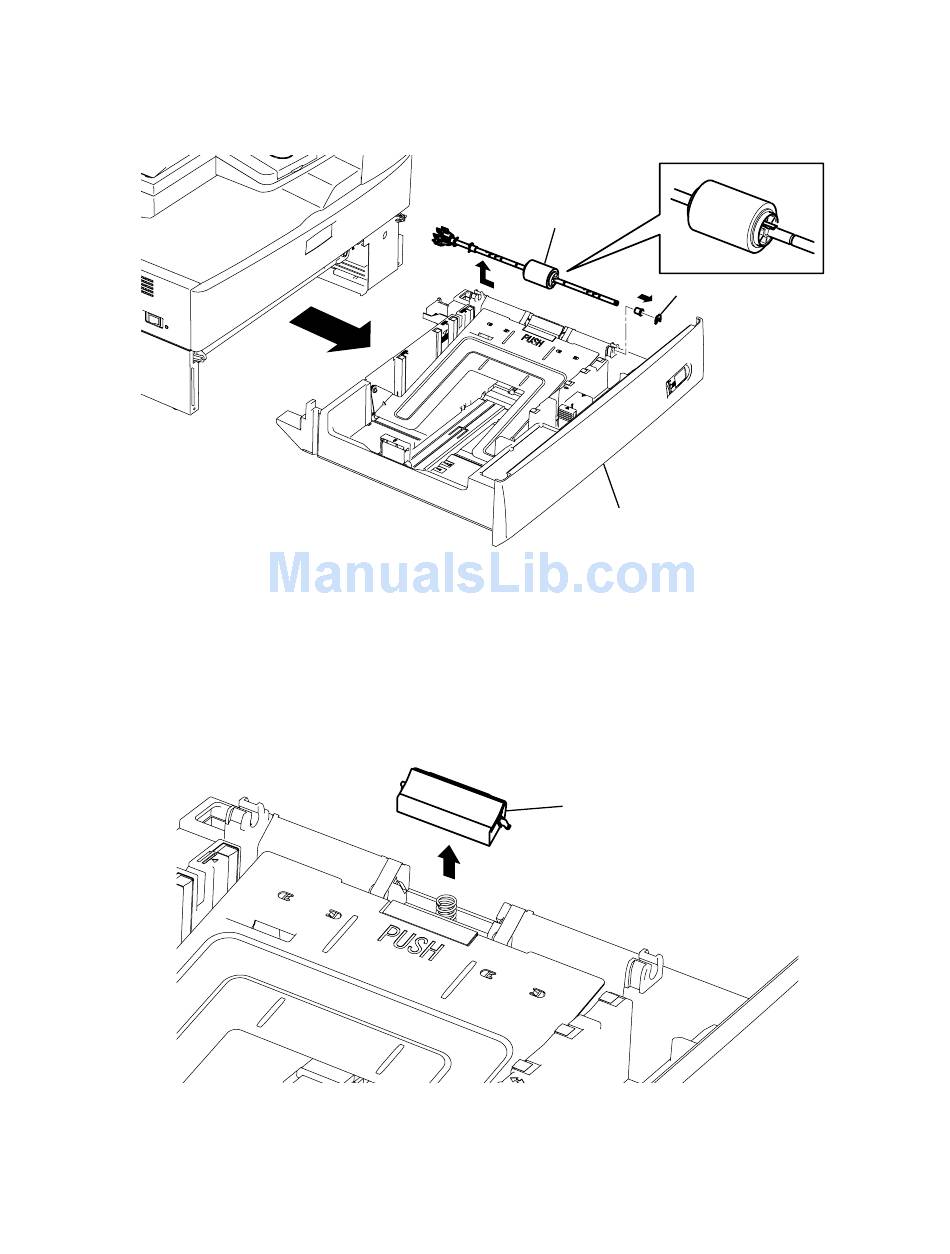

ROLLER PICK UP (1st CST) / (2nd CST)
1) Pull out the Cassette 1st.
2) Remove one plastic ring and bearing.
3) Release the roller tab from the shaft groove, and remove the ROLLER PICK UP.
PAD PRESSURE (1st CST) / (2nd CST)
1) Remove the Roller pick up.
2) Remove the PAD PRESSURE.
Roller pick up
Cassette 1st
Pad pressure
5-57
5-57
E-ring
