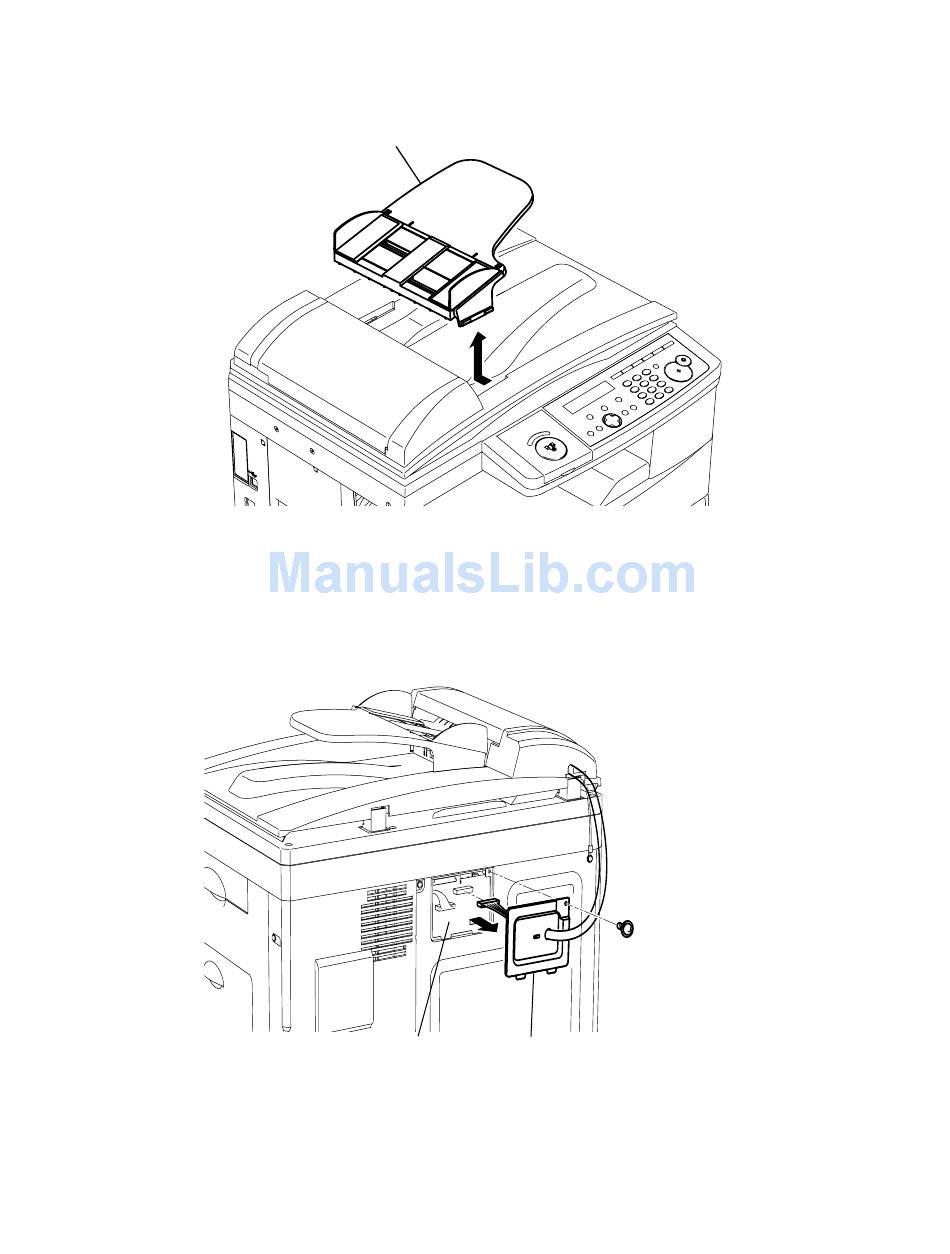

TRAY DOCUMENT
1) Release the locking tab from the Cover platen.
2) Remove the TRAY DOCUMENT.
COVER CONNECT
1) Remove the Cover connect mounting screw.
2) Disconnect the connector on the PCB CONNECT A.
3) Remove the COVER CONNECT.
NOTE: When reattaching the Cover connect, be careful not to get the harness caught on the Cover shield.
Tray document
Cover CONNECT
PCB CONNECT A
5-6
5-6
cover connect.eps
