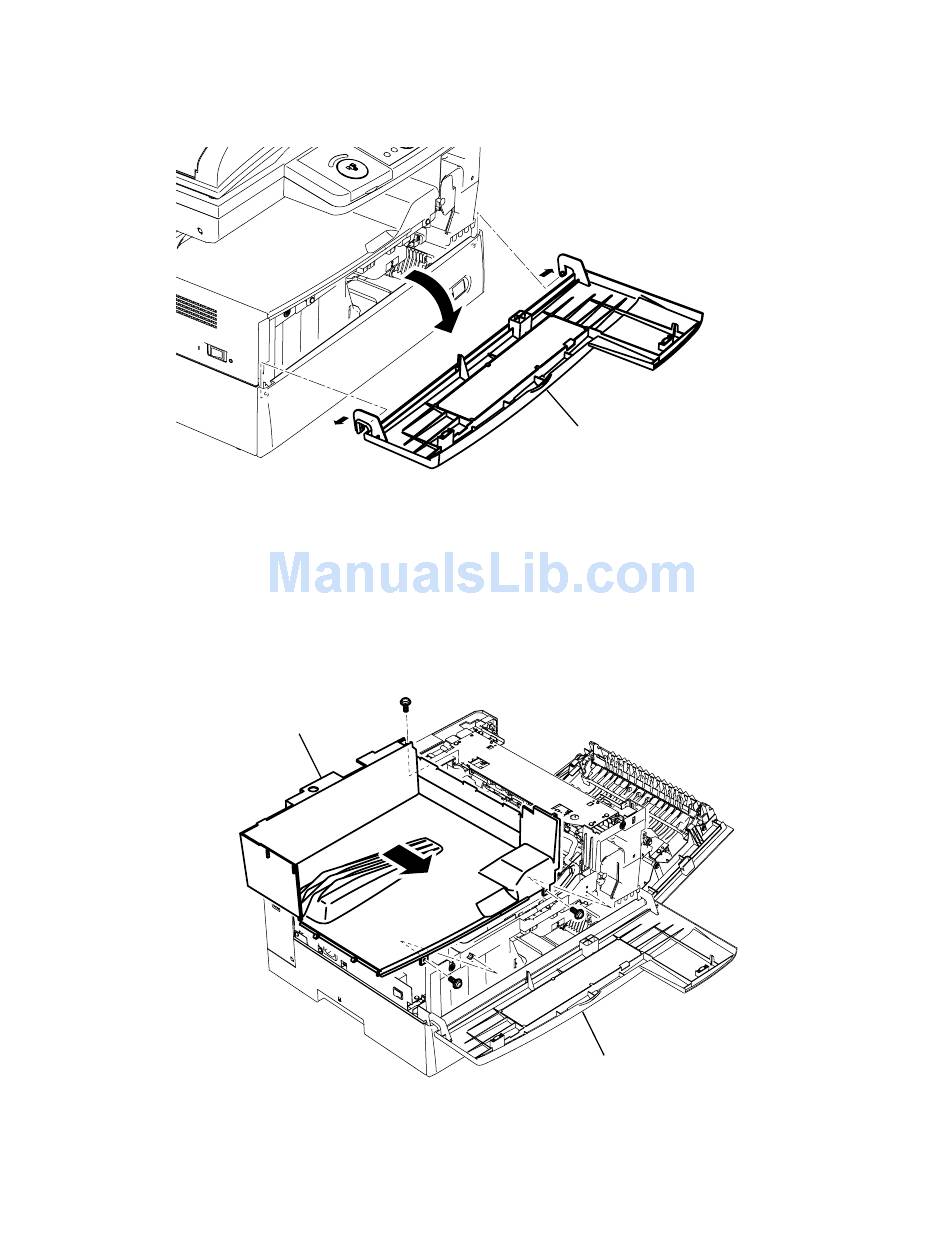

COVER FRONT
1) Open the Cover front.
2) Release two locking tabs, and then remove the COVER FRONT.
TRAY EXIT PAPER
1) Remove the Chassis FBS. (See page 5-32)
2) Remove the Cover left.
3) Remove the Cover front.
4) Remove three Tray exit paper mounting screws, and then remove the TRAY EXIT PAPER.
Tray exit paper
Cover front
Cover front
5-12
5-12
