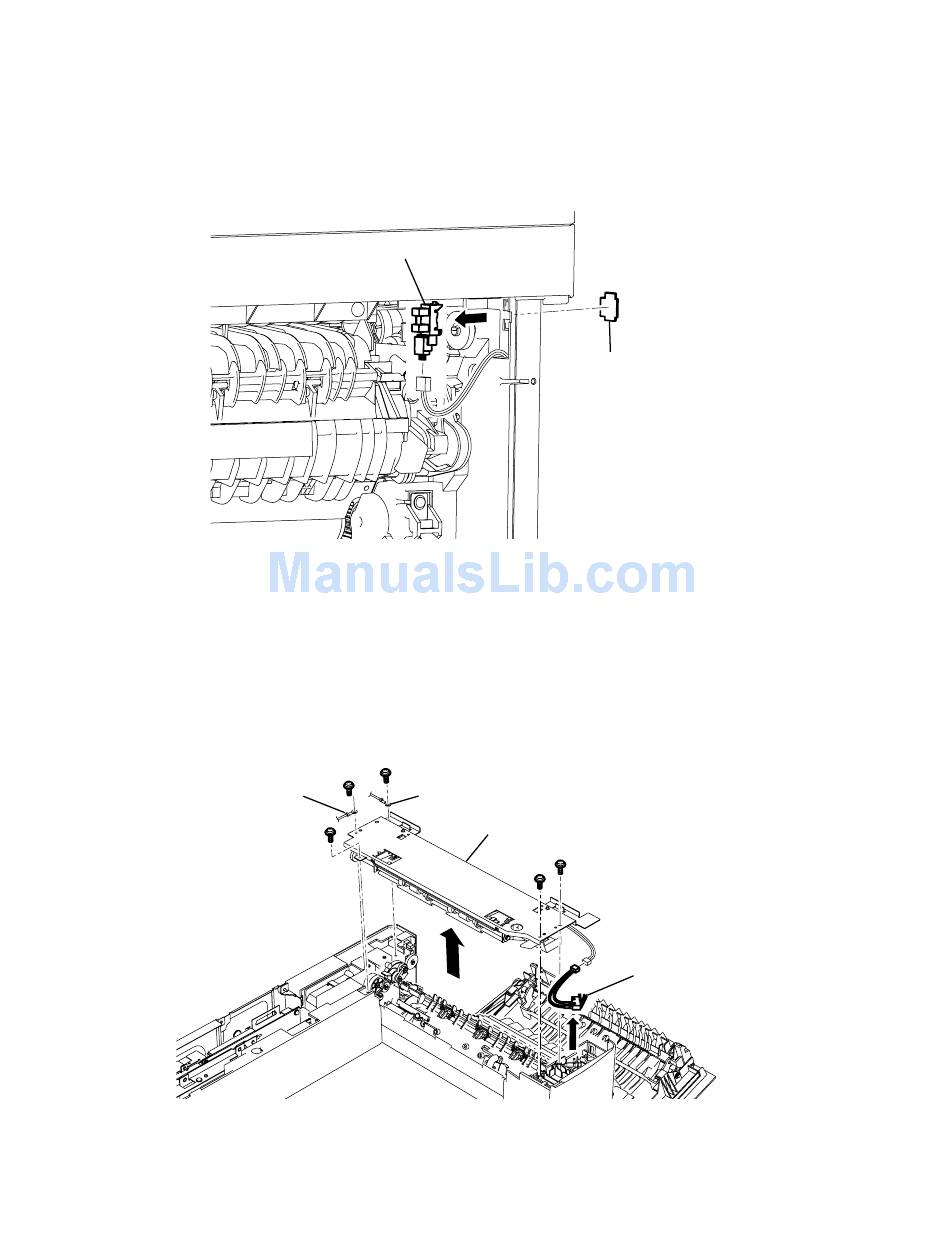

SENSOR JAMC1
1) Remove the Cover option. (See page 5-20)
2) Remove the Cover shield.
3) Remove the Cover back. (See page 5-32)
4) Open the Cover jam access.
5) Release the tab, and then remove the Sensor JAMC1.
COVER SWITCH
1) Remove the Chassis FBS.
2) Open the Cover jam access.
3) Remove five Frame upper mounting screws, and then remove the Frame upper.
4) Disconnect the connector of Sensor interlock, and then remove the Cover Switch.
Ground wire
(See page 5-20)
H H
H H
JAMC1
(See page 5-32)
H H
Ground wire
Frame upper
5-50 5-50
Sensor stopper
Cover Switch
