Test Menu

TEST MENU

1 Serial Port1 Loop Back
2 Serial Port2 Loop Back

3 PLC Enquiry Test

4 Buzzer Test

5 Touch Panel Test

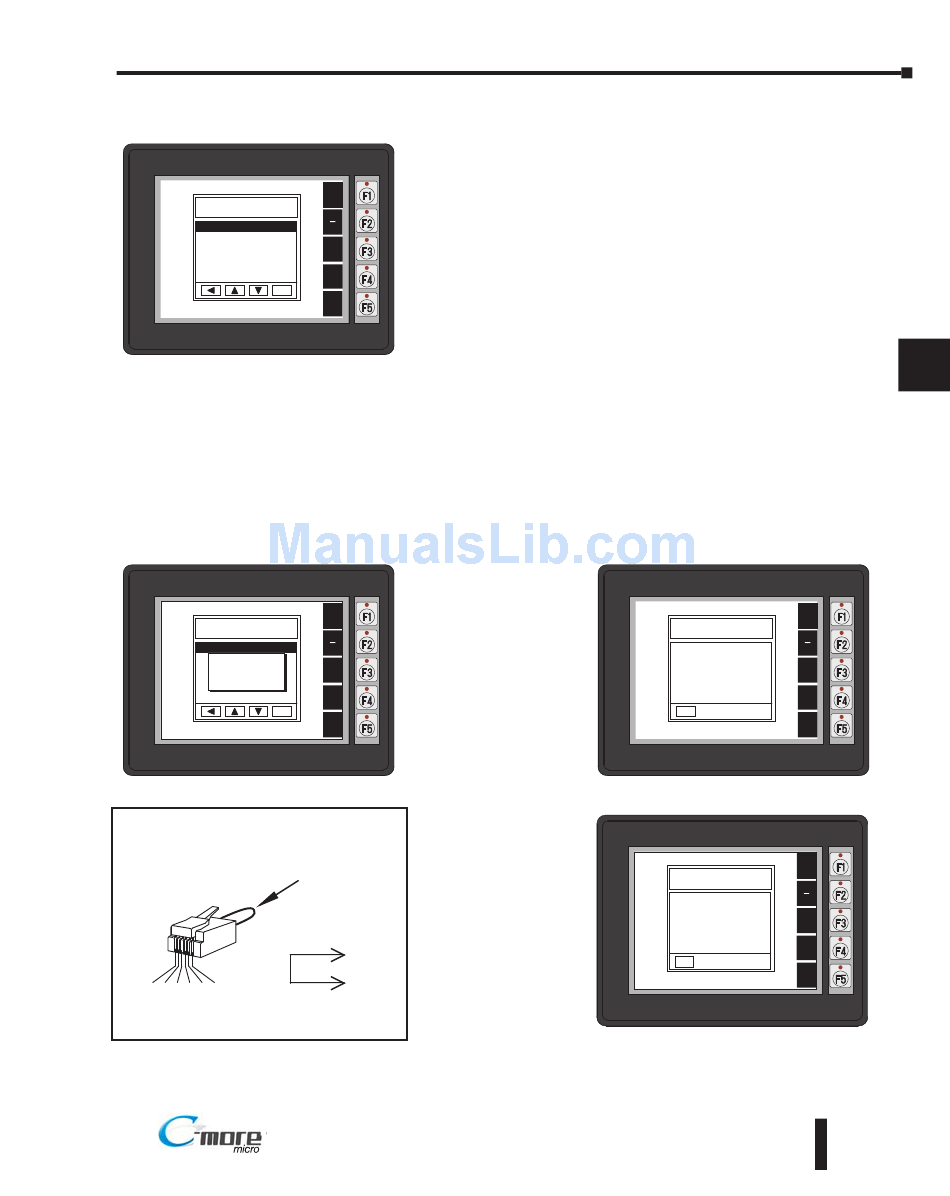

Test Menu – Serial Port1 - Loop Back Test
TEST MENU
1 Serial Port1 Loop Back
2
Use Loop Back
3
Connector and
4
Press ENT
5
RJ12 Loop-back Connector
RJ12 6-pin
Phone Plug
(6P6C)
1 2 3 4 5 6
Wiring Diagram
®
Use the UP [F3] and DWN [F4] function keys to scroll
through the list of tests. The BAK [F1] function key will
BAK
return you to the previous screen. Use the ENT [F5] function
key to make your selection once you have the test
highlighted.
UP
The Test Menu screen includes the following:
DWN
ENT
Serial Port1 - Loop Back Test – page 5-15
ENT
Serial Port2 - Loop Back Test – page 5-16
PLC Enquiry Test – page 5-17
Buzzer Test – page 5-17
Touch Panel Test – page 5-18
With Serial Port1 -
Loop Back Test
highlighted, press
BAK
ENT [F5] to bring
up the screen shown
ck
UP
to the left. Connect
DWN
a loop back
ENT
connector
ENT
constructed as
shown here and
press ENT [F5] to
start the test. If the
test is passing, the
Receive Counts will
Jumper
equal the Bytes
Pin 3 to 4
Sent. If the serial
port is not working,
then the Error
3
RXD
Counts will equal
4
the Bytes Sent. The
TXD
test will continue
until the BAK [F1]
key is pressed.
EA1-MG6-USER-M Hardware User Manual, 1st Ed. Rev C, 09/10
Chapter 5: System Setup Screens
LOOP BACK TEST
Serial Port1
Bytes Sent 124
Rcv Counts 124
Err Counts 0
ESC
LOOP BACK TEST
Serial Port1
Bytes Sent 124
Rcv Counts 0
Err Counts 124
ESC
5
BAK
UP
DWN
ENT
BAK
UP
DWN
ENT
5–15
