Chapter 1: Getting Started

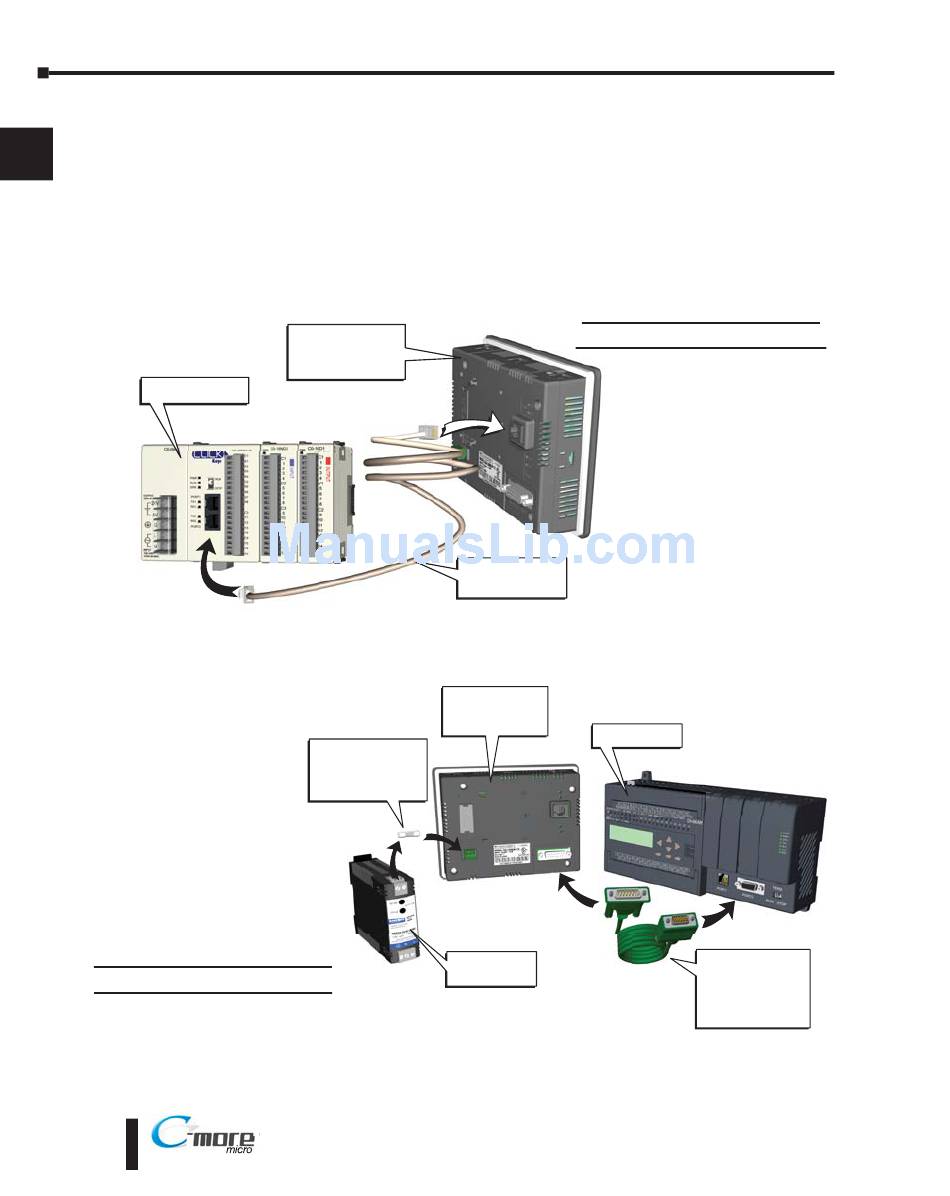

Step 10 – Connect C-more 6" Micro-Graphic Panel to PLC
Connect the serial communications cable between the C-more Micro-Graphic panel and the
1
PLC. The panel can be connected to the PLC via the panel's built-in RJ12 serial
communications port (RS-232) or 15-pin serial communications port with either RS-232, RS-
422 or RS-485 communications.
CLICK PLC
Example of panel's Port 2
connected to a DL06 PLC
1–16
C-more 6 Inch
Micro-Graphic
Panel
Port 1
Port 2
Recommended
DC Supply Fuse
750 mA fast acting,
ADC p/n AGC-75
®
EA1-MG6-USER-M Hardware User Manual, 1st Ed. Rev C, 09/10
Example of panel's Port 1
connected to a CLICK PLC
DV 1000CBL
serial cable
C-more 6 Inch
Micro-Graphic
Panel
DL-06 PLC
Port
2
PSP-24-024S
Power Supply
Port
2
C-more to
Direct LOGIC
VGA 15 pin port
serial cable
p/n EA 2CBL 1
