Setting – Calibration
SETTING
1 LCD Contrast
2 Backlight
3 Beep
4 Ca ibration
5 Clear User Memory
6 Reset to Factory Default
®
With Calibration

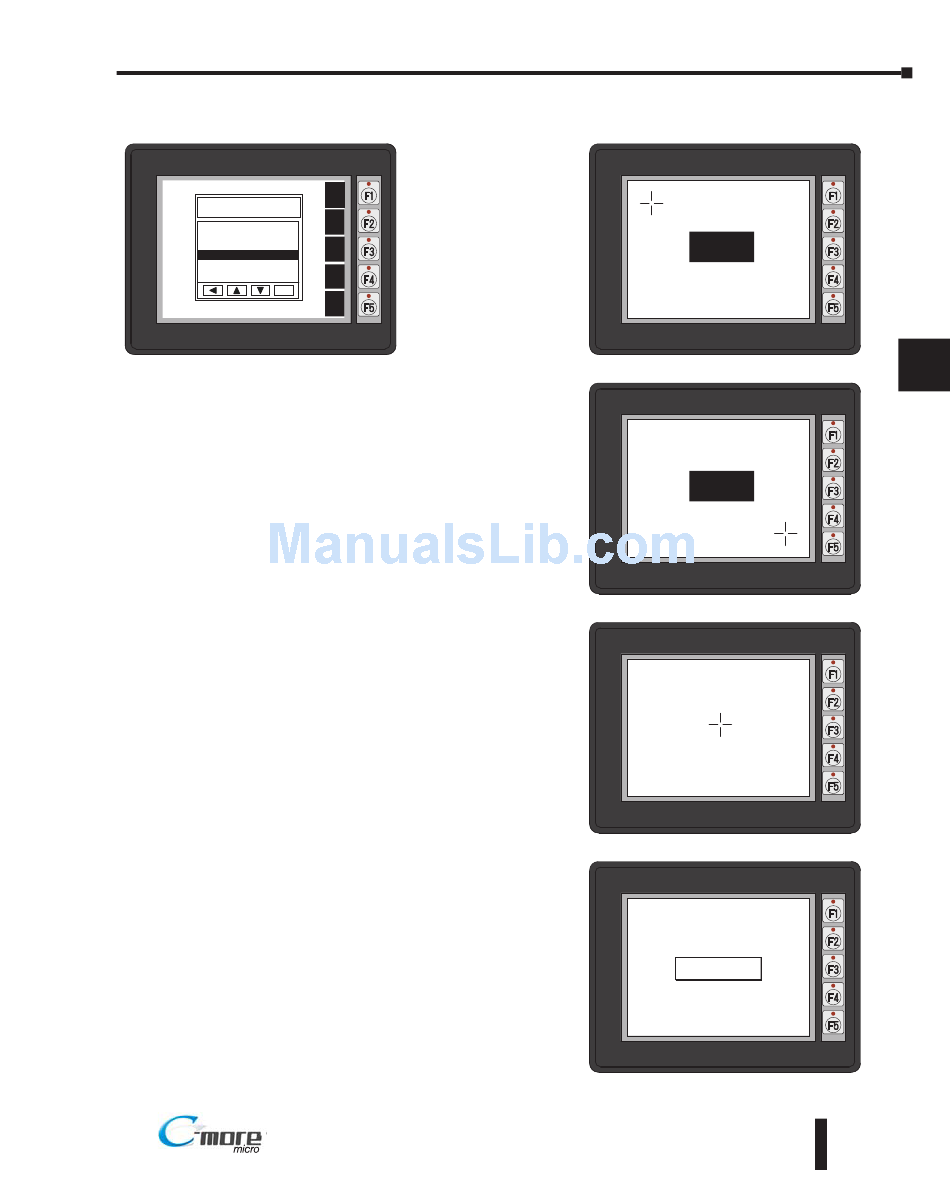

highlighted, press
BAK
ENT [F5] to bring
up the first
NXT
>
>
calibration screen as
>
UP
>
shown on the right.
DWN
Touch the "cross" in
ENT
ENT the upper left corner
as accurately as you
can. When the
screen is touched,
the cross will move
to each corner and
finally to the center
of the screen. If the
touch points are
within the built-in
calibration
tolerance, the final
screen will allow
you to either save
and quit from the
calibration
procedure, or allow
you to retry. If the
points that were
touched are not
within the
calibration
tolerance, you will
be returned to the
first calibration
screen and will need
to start over.
EA1-MG6-USER-M Hardware User Manual, 1st Ed. Rev C, 09/10
Chapter 5: System Setup Screens
Press Cross Mark
Panel will not
Communicate
in this mode
Press F1 to Quit
Press Cross Mark
Panel will not
Communicate
in this mode
Press F1 to Quit
Press Cross Mark
Press F1 to Quit
F5 to Save & Quit
F1 to Retry
