Accessing the System Setup Screens

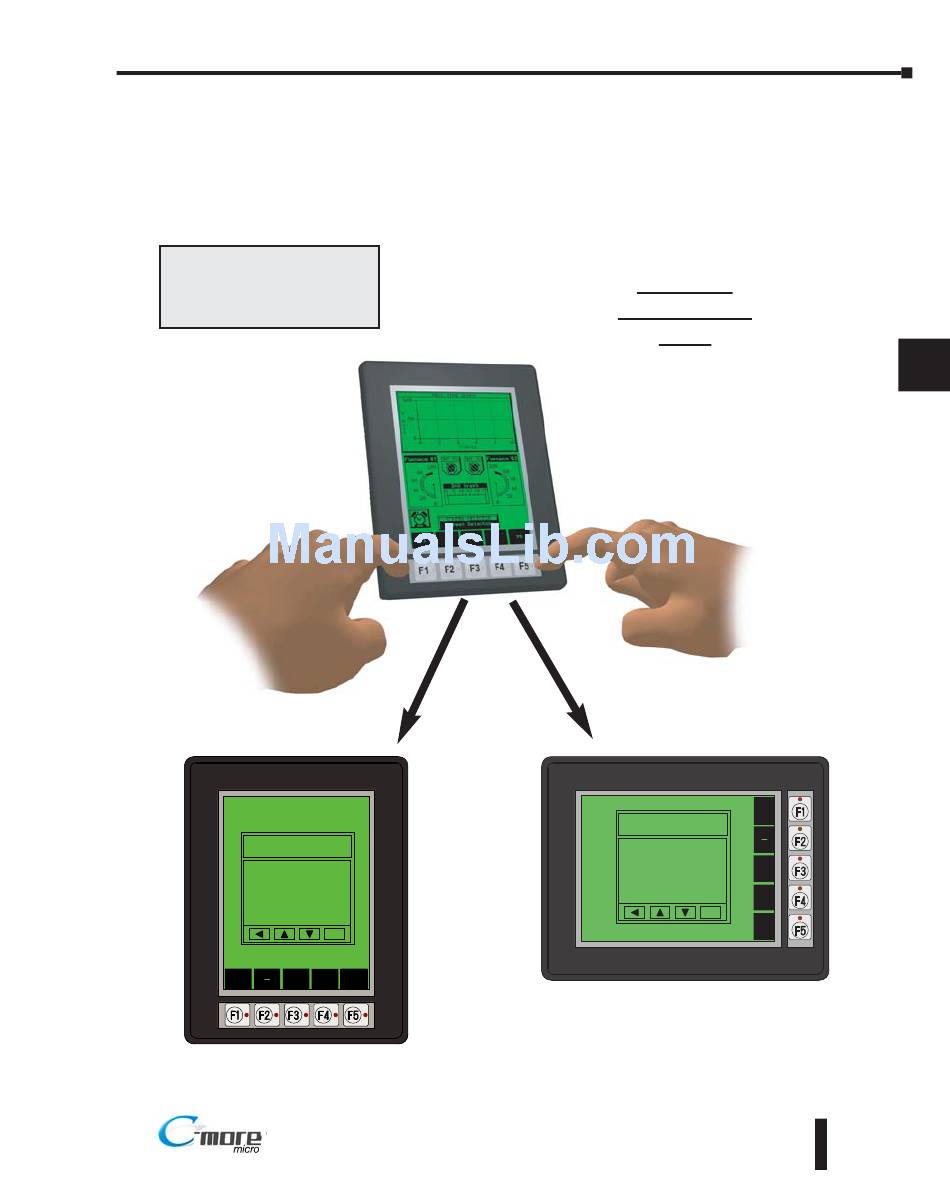

To access the Setup Menu of the panel System Setup Screens, press the panel's BAK [F1] and
ENT [F5] function keys simultaneously for three (3) seconds as shown below. The System
Setup Screens' Setup Menu will be displayed as shown at the bottom of this page.
Press both the F1 and F5 function
keys simultaneously
seconds to bring up the System
Setup Screens' Setup Menu.
SETUP MENU
1 Information
2 Setting
3 Test Menu
4 Exit
BAK
®
for 3
>
>
>
>
ENT
DWN ENT
UP
EA1-MG6-USER-M Hardware User Manual, 1st Ed. Rev C, 09/10
Chapter 5: System Setup Screens
C-more 6"
Micro-Graphic
Panel
BAK
SETUP MENU
1 Information >
2 Setting >
3 Test Menu >
UP
4 Exit >
DWN
ENT
ENT
