No Communications Between Panel And Pc (Personal Computer) - C-more micro EA1-S6ML Hardware User Manual

No Communications between Panel and PC (Personal Computer)

There are three possible causes that prevent transferring the project to the C-more Micro-
Graphic panel.
1. Panel not on setup screen (press F1 and F5) - Press and hold the F1 and F5 buttons
simultaneously for three seconds to enter the setup screen.
2. Cable not connected - Double check the programming cable asembly to make sure the panel is
correctly connected to the USB port on the PC.
USB
Cable
NOTE: When properly installed the programming cable will look like a serial communications port to the PC.
No communications between panel and PC continued top of next page.
® EA1-MG6-USER-M Hardware User Manual, 1st Ed. Rev C, 09/10

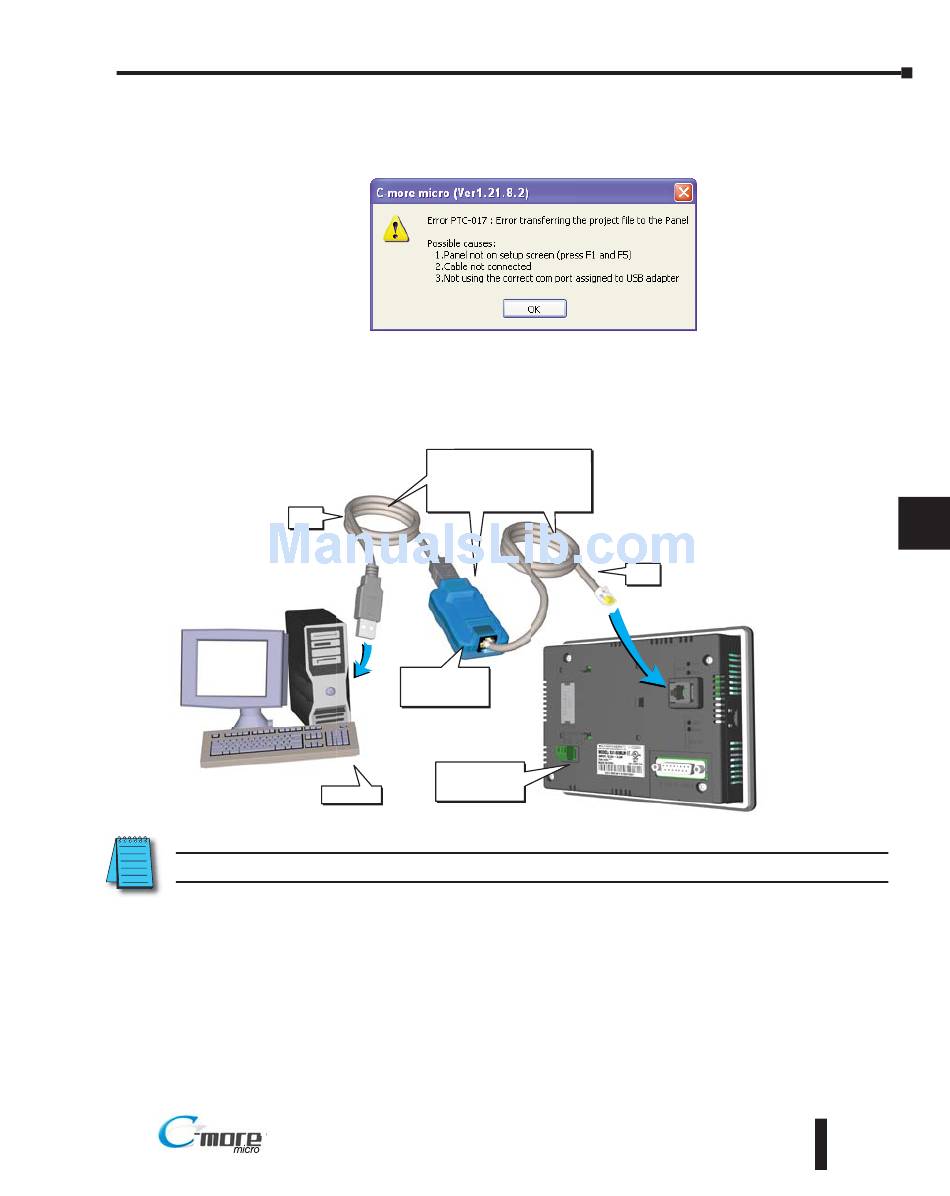

PC to Panel Programming
Cable Assembly
(Includes serial & USB cables)
EA-MG-PGM-CBL
USB to RS232
Converter
C-more 6 inch
Micro Graphic
Panel
User PC
Chapter 8: Troubleshooting
Serial
Cable
8
8–5
