Chapter 3: Accessories

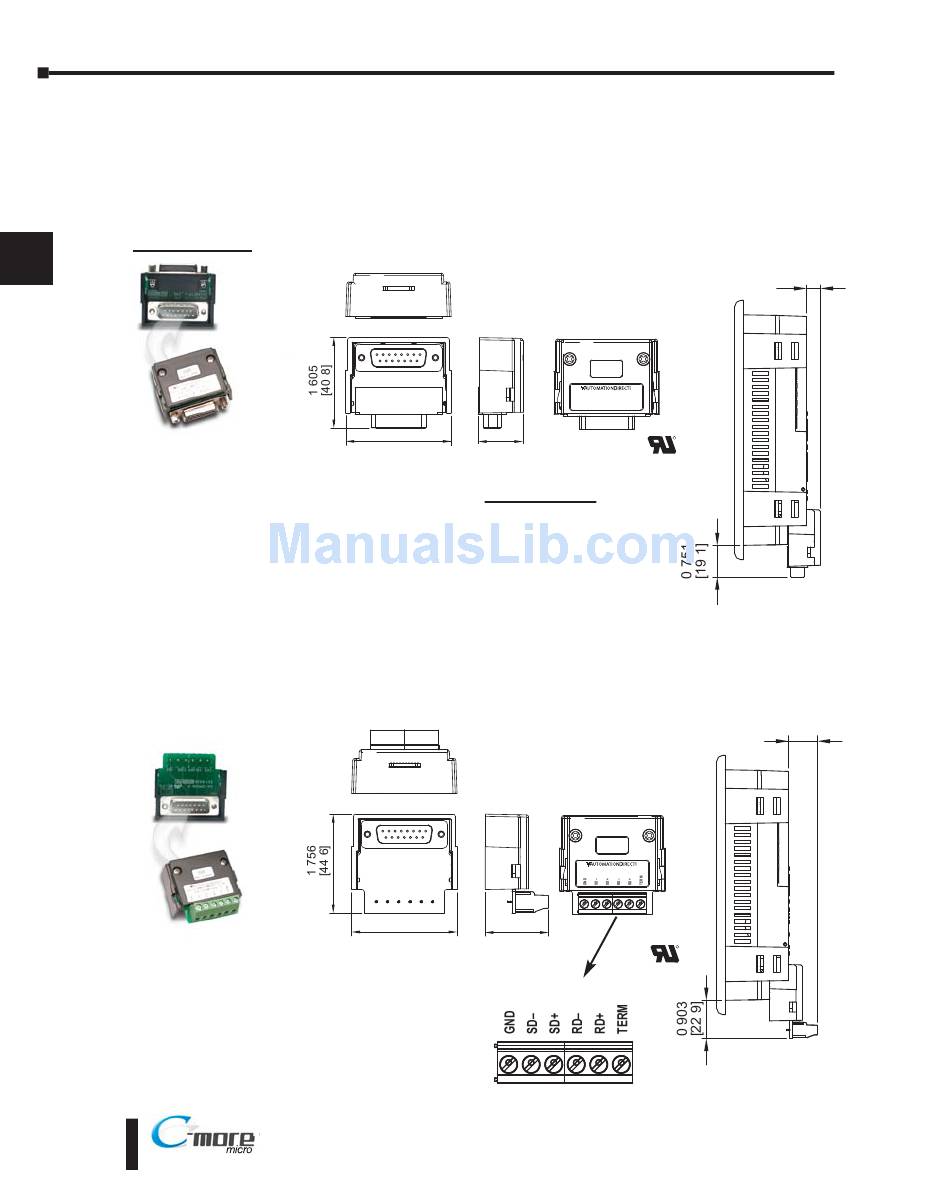

D-SUB 15-pin 90-degree Communication Port Adapter

The EA-ADPTR-4 adapter plugs into the 15-pin serial port on the rear of the 6" panel to
allow a PLC communication cable to be plugged in at a 90 degree angle to reduce panel
depth requirements. 15-pin straight through pin-out. UL Recognized.
EA-ADPTR-4
3

D-SUB 15-pin to Terminal Block Adapter

The EA-COMCON-3 adapter plugs into the 15-pin serial port on the rear of the 6" panel to
allow wire terminal connections for an RS-422/RS-485/DH-485 PLC communication cable.
UL Recognized.
3–14
1.873
[47.6]
1.873
[47.6]
® EA1-MG6-USER-M Hardware User Manual, 1st Ed. Rev C, 09/10
Units: inches [mm]
Date code
Country of Origin
KOYO ELECTRON CS INDUSTRIES CO LTD
EA ADPTR 4
IOIOI – PLC
0.793
[20.2]
Dimensions
Units: inches [mm]
Date code
Country of O igin
KOYO ELECTRON CS NDUSTRIES CO LTD
EA COMCON 3
1.126
[28.6]
Terminals
0.333
[8.5]
0.687
[17.5]
