Chapter 5: System Setup Screens

Information Menu

INFORMATION

1 Memory

2 Protocol

3 Extensions

4 Versions

5
INFORMATION

1 Memory

2 Protocol

3 Extensions

4 Versions

INFORMATION
1 Memory
2 Protocol
3 Extensions
4 Versions
INFORMATION
1 Memory
2 Protocol
3 Extensions
4 Versions
*Note: Firware Version 2.0 or later is required with models EA1-S6ML and EA1-S6MLW. Available for free
download at www.automationdirect.com
5–6

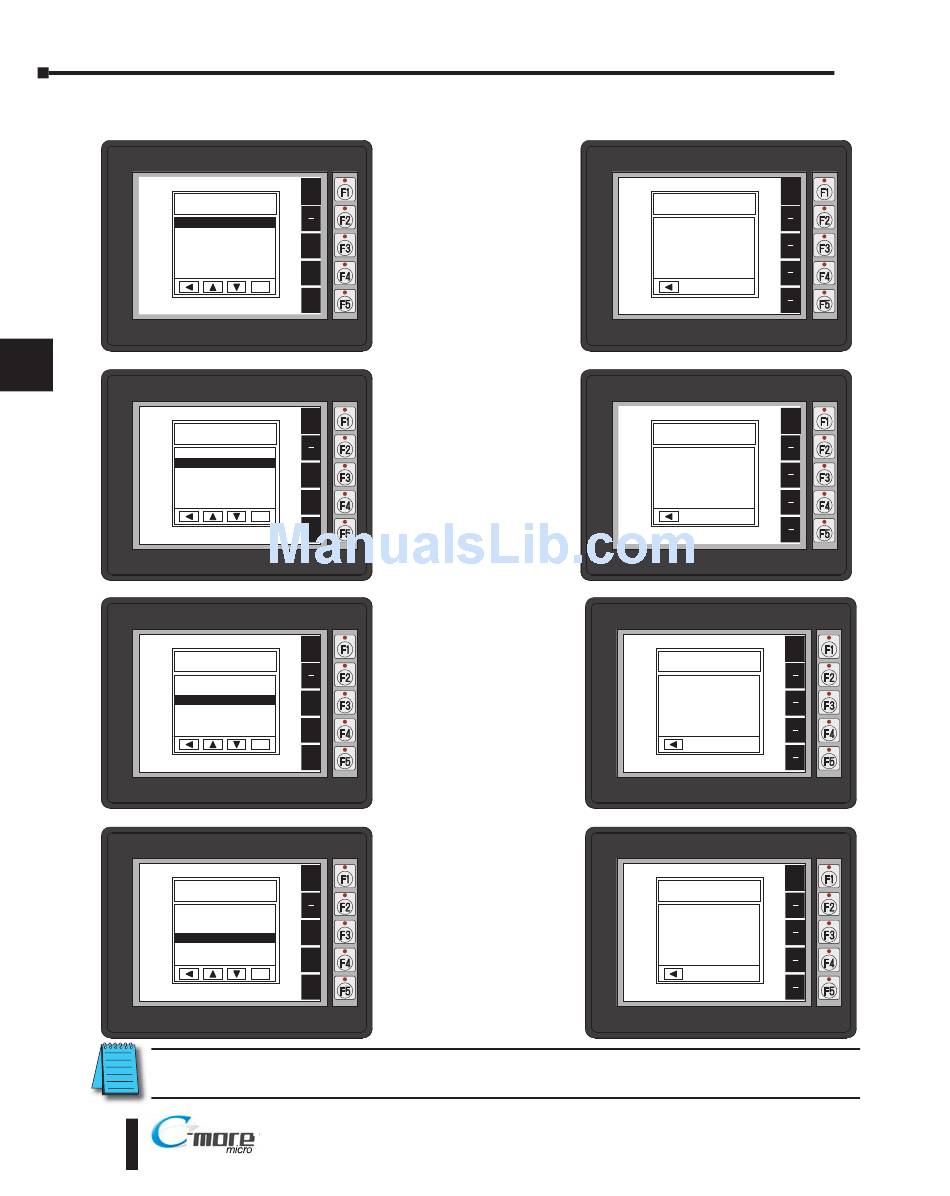

Pressing ENT [F5] with
Memory highlighted
BAK
will show the total
memory available,
>
>
memory usage and free
>
UP
>
memory available for
DWN
the project.
ENT
ENT
Pressing ENT [F5] with
Protocol highlighted
BAK
will show the PLC
>
Protocol that has been
>
>
UP
> assigned to the panel
DWN
and the protocol
ENT
version.
ENT
Pressing ENT [F5] with
Extensions highlighted
BAK
will show if an optional
keypad bezel is installed
>
>
on the panel. The
>
UP
>
example here shows the
DWN
EA-MG6-BZ2.
ENT
ENT
Pressing ENT [F5] with
Versions highlighted will
BAK
show the panel's firmware
>
and boot loader versions.*
>
>
UP
>
DWN
ENT
ENT
® EA1-MG6-USER-M Hardware User Manual, 1st Ed. Rev C, 09/10
BAK
MEMORY
Total
1835008 Bytes
Usage
26206 Bytes
Free
1808802 Bytes
BAK
PROTOCOL
Protocol Type
DirectLogic K Sequence
Version 0 6 3
BAK
EXTENSIONS
Detected Devices
BZ2
BAK
VERSIONS
Firmware 1 50 8 40
Boot Loader V2 00
