Chapter 1: Getting Started

Product Overview

1
The C-more 6" Micro-Graphic panel has a 5.7-inch STN LCD monochrome 320 x 240 dot
display. Model EA1-S6ML has five selectable LED-driven backlight colors including Green,
Red, Amber, Yellow and Lime. Model EA1-S6MLW has five selectable LED-driven backlight
colors including White, Pink1, Pink2, Pink3 and Red. Both models feature five user-defined
function keys, each key with a user-defined red LED indicator. The panels can display up to 40
lines by 78 characters of static text and up to 40 lines by 40 characters of dynamic text with
embedded variables and phrases mixed with graphics at landscape orientation. Portrait
orientation can display 59 characters and 40 lines of static text and 40 lines by 40 characters of
dynamic text. Each model is rated NEMA 4/4X, IP-65 (when mounted correctly, for indoor use
only). The C-more 6" Micro-Graphic panels are powered from a 12-24 VDC power supply or
can operate in low-power mode when powered from the serial communications port of select
AutomationDirect PLCs.
Other features include:
• 1792 KB memory
• Built in RJ12 serial communications port (RS-232)
• Built in 15-pin serial communications port (RS-232/422/485)
• Adjustable contrast
• 2 optional keypad bezels, 20-button landscape and 21-button portrait mount
• Optional replaceable clear screen overlay
• Built in Alarm Control setup that activates beep, backlight flash, customized alarm banner, and red
LED blinking
• Up to 999 screens, limited only by memory usage
• 0 to 50 °C (32 to 122 °F) operating temperature range
• UL, cUL & CE agency approvals (see below for details)
• 2-year warranty from date of purchase

Agency Approvals

C-more Micro-Graphic Panels
1–4

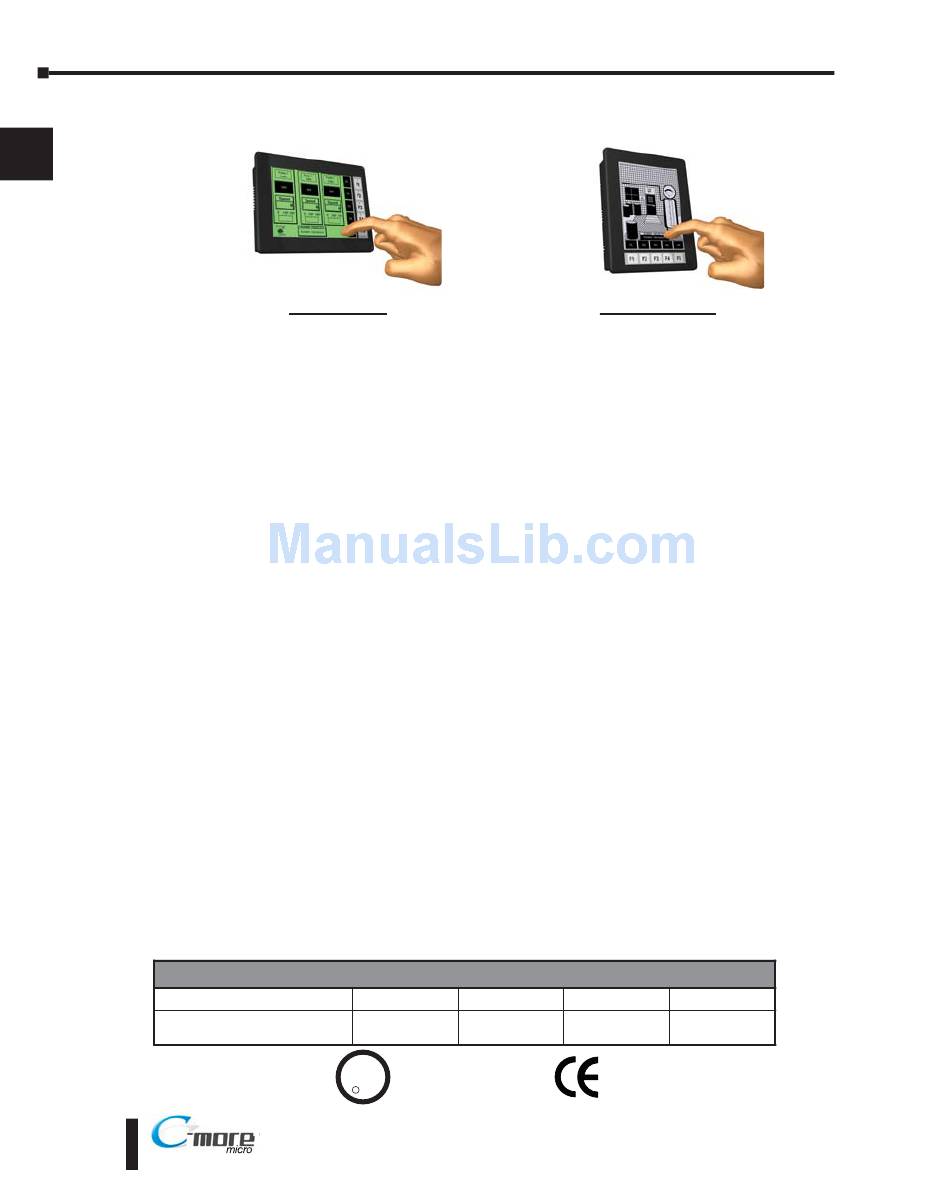

EA1-S6ML
shown in Landscape (Horizontal) mode
UL/CUL/CE Certification Numbers
Name UL/CUL
E157382
& Accessories
U L
C
R
®
EA1-MG6-USER-M Hardware User Manual, 1st Ed. Rev C, 09/10
shown in Portrait (Vertical) mode
UL508
E157382
US
EA1-S6MLW
CE ISO-9000
EN61131-2 Yes
